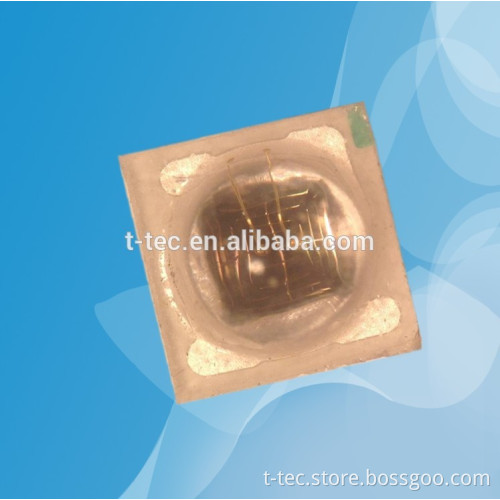

3535 800-810nm infrared SMD power LED

3535 800-810nm infrared SMD 1/3w power LED    Applications   1.optical communications, light barriers, measurement systems   2.Medical appliances, remote control   3.Disinfection and sterilizer   4.Special Light     n Initial Electrical/Optical Characteristics                                (Ta=25℃)

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=350mA	1.4	1.5	1.65	V
DC reverse Current	IR	V=5V	----	----	10	μA
Peak wavelength	λ	I=350mA	800	----	810	nm
Spectrum Radiation Bandwidth	Δλ	I=350mA	----	28	----	Nm
Radiant power	IV	I=350mA	----	45	----	mw
50%Power Angle	2θ1/2	I=350mA	----	120	----	deg

       size drawing:      1)       2)     3)
