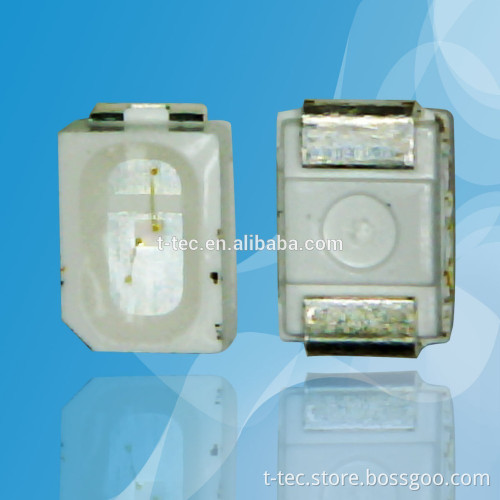

3020 PLCC2 520-525NM pure Green SMD LED

Specifications 3020 pure Green SMD LED

1) pure Green color

2)520-525nm

3) for grow lights

3020 PLCC2 520-525NM pure Green SMD LED   520-525nm    3.0-3.5v,20mA    used for grow lights, or medical using           Initial Electrical/Optical Characteristics                                (Ta=25℃)

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=20mA	3.0	3.2	3.5	V
DC reverse Current	IR	V=5V	----	----	10	μA
Peak Wavelength	λP	I=20mA	520		525	nm
Spectrum Radiation Bandwidth	Δλ	I=20mA	----	35	----	Nm
Radiant power	Φe	I=20mA	3.5	4.5		mW
Luninous Intendity(IV)	Iv	I=20mA	600	750	1000	mcd
50%Power Angle	2θ1/2	I=20mA	----	120	----	deg
