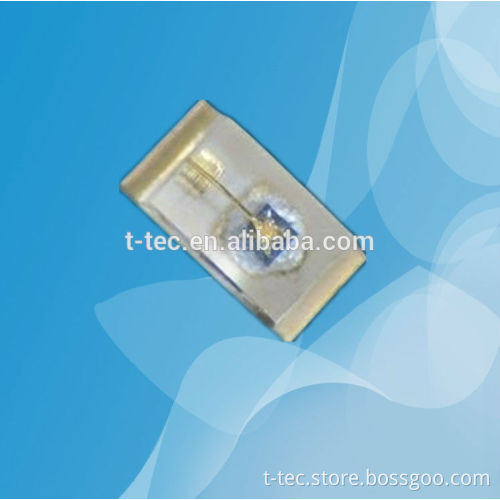

0603 940nm infrared SMD LED

Get Latest Price

Delivery Time:: 5 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

0603 940nm infrared SMD LED

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=20mA	1.1	1.22	1.35	V
		IF=100mA,tp=100μs,tp/T=0.01	----	1.45	1.56
		IF=1.00A,tp=100μs,tp/T=0.01	----	3.45	4.25
DC reverse Current	IR	V=5V	----	----	10	μA
Dome Wavelength	WD	I=20mA	----	940	-	Nm
Spectrum Radiation Bandwidth	Δλ	I=20mA	----	45	----	nm
Luminous Intensity	Ee	I=20mA	18	---	22	MW
50%Power Angle	2θ1/2	I=20mA	----	120	----	deg

Applications: Free air transmission system Up to electronic switch Infrared remote control units with high power requirement Floppy disk drive Smoke detector package 3000pcs or 4000pcs in a reel
