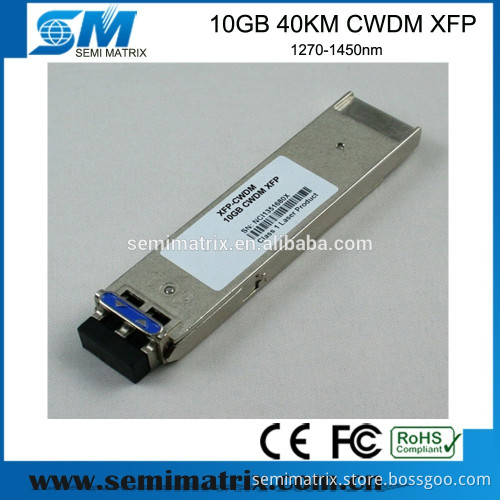

10G 40km CWDM XFP Optical Transceiver module

Specifications -10G CWDM XFP

- link length up to 40km

- CWDM EML transmitter

-1270-1450nm 10 wavelength, 20nm space

-Hot Pluggable with DDM

10G 40km CWDM XFP Optical Transceiver module   Product Description Overview:   Semi Matrix 10G-CWDM-XFP-40-A Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. They comply with 10-Gigabit Ethernet 10GBASE-ER/EW per IEEE 802.3ae and 10G Fiber Channel 40KM.   Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.   The transceiver is RoHS compliant and leads free per Directive 2002/95/EC.   The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA.   All modules satisfy class I laser safety requirements. Gigalight CWDM XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.       Main Features:

Uncooled CWDM DFB laser from1270nm to 1450nm, with Step 20nm	Low Power Dissipation 3.5W Maximum
Supply Voltages, laser bias current, transmit optical power, and receive optical power	XFI and lineside loopback Mode Supported
Supports 9.95Gbps to 11.3Gbps bit rates	0ºC to 70ºC Operating Case Temperature
XFP MSA Rev 4.5 Compliant	Diagnostic Performance Monitoring of module temperature
Maximum link length of 40km with SMF	+1.8V,+3.3V Supply Voltage
No reference clock required	RoHS6 compliant (lead free)

    Applications

SDH STM 64 SONET OC-192	10G Fiber Channel
10GBASE-ER/EW 10G Ethernet

   Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.       Detailed Images            Packaging & Shipping       Payment & Warranty We offer 3 year warranty to our products.           Ordering Information

Part number	Package Style	Data Rate	Distance	LD	PD
8.5G-CWDM-XFP-40	XFP	8.5Gb/s	40km	1470-1610nm CWDM DFB	PIN
8.5G-CWDM-XFP-80	XFP	8.5Gb/s	80km	1470-1610nm CWDM DFB	APD
10G-CWDM-XFP-10	XFP	10Gb/s	10km	1270-1330nm CWDM DFB	PIN
10G-CWDM-XFP-40-A	XFP	10Gb/s	40km	1270-1450nm CWDM DFB	PIN
10G-CWDM-XFP-40-B	XFP	10Gb/s	40km	1470-1610nm CWDM DFB	PIN
10G-CWDM-XFP-60	XFP	10Gb/s	60km	1270-1450nm CWDM DFB	APD
10G-CWDM-XFP-80	XFP	10Gb/s	80km	1470-1610nm CWDM DFB	APD
