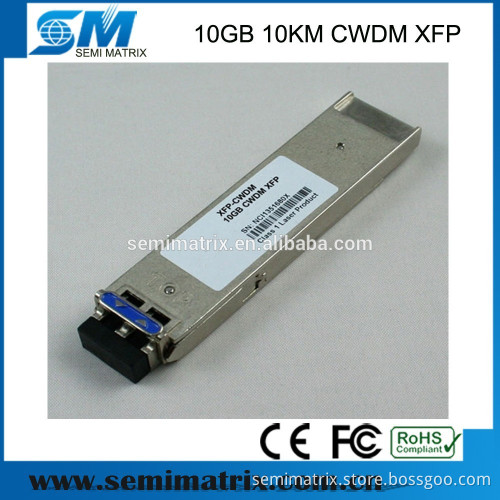

10G 10km CWDM XFP Optical Transceiver module
- Delivery Time:
- 1 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description
Specifications -10G CWDM XFP
- link length up to 10km
- CWDM EML transmitter
-1270-1330nm 4 wavelength, 20nm space
-Hot Pluggable with DDM
10G 10km CWDM XFP Optical Transceiver module Product Description Overview: Semi Matrix 10G-CWDM-XFP-10 is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-LR) or 9.953Gbps 10GBASE-LW), andtransmission distance up to 10km on SMF. The transceiver module comprises a transmitter with uncooled CWDM DFB laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems
Main Features:
Applications
Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.
Detailed Images
Packaging & Shipping
Payment & Warranty We offer 3 year warranty to our products.
Ordering Information
- link length up to 10km
- CWDM EML transmitter
-1270-1330nm 4 wavelength, 20nm space
-Hot Pluggable with DDM
10G 10km CWDM XFP Optical Transceiver module Product Description Overview: Semi Matrix 10G-CWDM-XFP-10 is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-LR) or 9.953Gbps 10GBASE-LW), andtransmission distance up to 10km on SMF. The transceiver module comprises a transmitter with uncooled CWDM DFB laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems
Main Features: | 4-Wavelengths Uncooled CWDM DFB laser from1270nm to 1330nm, with Step 20nm | Low Power Dissipation 2W Maximum |
| Supply Voltages, laser bias current, transmit optical power, and receive optical power | XFI and lineside loopback Mode Supported |
| Supports 9.95Gbps to 11.3Gbps bit rates | 0ºC to 70ºC Operating Case Temperature |
| XFP MSA Rev 4.5 Compliant | Diagnostic Performance Monitoring of module temperature |
| Maximum link length of 10km with SMF | +1.8V,+3.3V Supply Voltage |
| No reference clock required | RoHS6 compliant (lead free) |
| SDH STM I-64.1 at 9.953Gbps | 10G Fiber Channel |
| 10GBASE-LR/LW 10G Ethernet | 10GBASE-LR/LW 10G Ethernet with FEC |
Detailed Images Packaging & Shipping Payment & Warranty We offer 3 year warranty to our products. Ordering Information | Part number | Package Style | Data Rate | Distance | LD | PD |
| 8.5G-CWDM-XFP-40 | XFP | 8.5Gb/s | 40km | 1470-1610nm CWDM DFB | PIN |
| 8.5G-CWDM-XFP-80 | XFP | 8.5Gb/s | 80km | 1470-1610nm CWDM DFB | APD |
| 10G-CWDM-XFP-10 | XFP | 10Gb/s | 10km | 1270-1330nm CWDM DFB | PIN |
| 10G-CWDM-XFP-40-A | XFP | 10Gb/s | 40km | 1270-1450nm CWDM DFB | PIN |
| 10G-CWDM-XFP-40-B | XFP | 10Gb/s | 40km | 1470-1610nm CWDM DFB | PIN |
| 10G-CWDM-XFP-60 | XFP | 10Gb/s | 60km | 1270-1450nm CWDM DFB | APD |
| 10G-CWDM-XFP-80 | XFP | 10Gb/s | 80km | 1470-1610nm CWDM DFB | APD |
