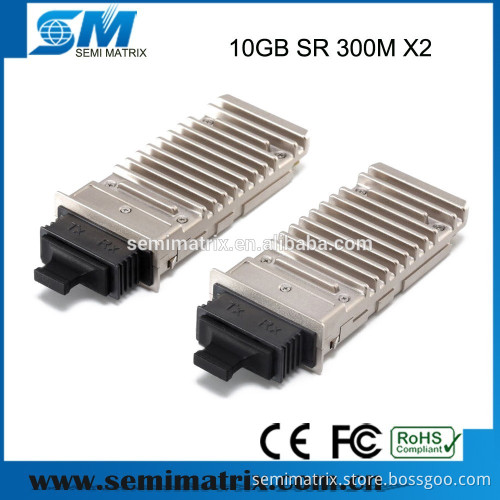

10G SR 850nm 300m X2 optical Transceiver

Specifications -10GBASE-SR X2

-MMF Up to 300M

-850nm VCSEL

-SC Duplex Optical Connector

-Built-in Diagnostic Optics Monitoring

10GBASE-SR 850nm 300m X2 optical Transceiver     Product Description  The 10GBASE X2 modules offer you a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.   It is a hot pluggable in the Z-direction module that is usable in typical router line card applications, Storage, IP network and LAN and compliant to X2 MSA.
The 10G-X2-SR is a fully integrated 10.3Gbit/s optical transceiver module that consists of a 10.3Gbit/s optical transmitter and receiver, XAUI interface, Mux and De-mux with clock and data recovery(CDR).   Main Features   *Compatible with X2 MSA Rev2.0b
*Support of IEEE 802.3ae 10GBASE-SR at 10.3125Gbps
*Transmission Distance up to 300M(MMF)
*SC Duplex Optical Connector
*Hot Pluggable 70-PIN Connector with XAUI Electrical Interface
*Management and control via MDIO 2-wire interface
*Built-in Diagnostic Optics Monitoring
*Temperature Range: 0~ 70 °C
*ROHS-6 Compatible Lead-free   Applications   *10GE Ethernet
*Storage , DATA Center
*Other 10Gbps Ethernet Transmission Systems       Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.       Detailed Images       Packaging & Shipping       Ordering Information

Part number	Package Style	Data Rate	Distance	LD	PD
10G-X2-SR	X2	10Gb/s	300m	850nm VSCEL	PIN
10G-X2-LRM	X2	10Gb/s	220M	1310nm DFB	PIN
10G-X2-LR-10	X2	10Gb/s	10km	1310nm DFB	PIN
10G-X2-ER-40	X2	10Gb/s	40km	1550nm Cooled EA-DFB	PIN
10G-X2-ZR-80	X2	10Gb/s	80km	1550nm Cooled EA-DFB	APD
