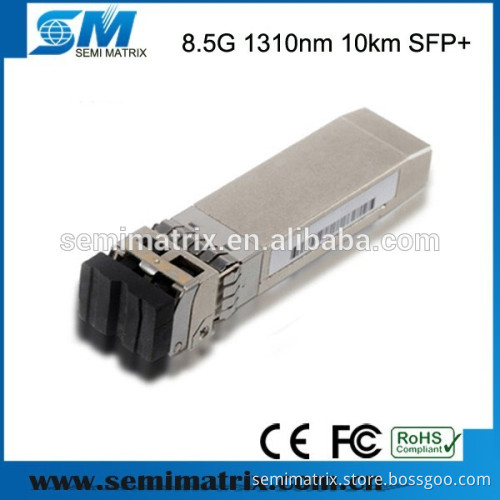

8.5G 1310nm 10km SFP+ Optical Transceiver Module

Specifications -8.5G SFP+

-10km Reach distance

-1310nm DFB laser

-Tri-Rate 2/4/6/8G Fiber

-All Brands compatible

8.5G LR 1310nm 10km SFP+ Optical Transceiver Module   Product Description This 8.5G SFP+ transceiver is designed for use in Fibre Channel links up to 8.5 Gb/s data rate over multimode fiber.   They are compliant with FC-PI-4 Rev. 8.00 and SFF-8472 Rev 11.0, and compatible with SFF-8432 and applicable portions of SFF-8431 Rev. 4.1.   The product is RoHS compliant and lead-free per Directive 2002/95/EC and F-tone Application Note FN-2038.       Main Features

1.Up to 8.5 Gb/s bi-directional data links	7. Maximum link length of 10km on SMF
2.Hot-pluggable SFP+ footprint	8.Metal enclosure, for lower EMI
3.Built-in digital diagnostic functions	9.Single 3.3V power supply
4.1310nm DFB laser transmitter	10.<0.5W power dissipation
5.Duplex LC connector	11.Extended operating temperature range: 0°C to 70°C/-40°C to 85°C
6.RoHS compliant and Lead Free

                                                  Applications   *. Tri-Rate 2.125/4.25/8.5 Gb/s Fibre Channel   *. others   Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.       Detailed Images       Installation Demo                 Packaging & Shipping       Payment & Warranty We offer 3 years warranty to our products.       Ordering Information

Part number	Package Style	Data Rate	Distance	LD	PD
8.5G-SFP-SR	SFP+	8.5Gb/s	150m	850nm VSCEL	PIN
8.5G-SFP-2C	SFP+	8.5Gb/s	2km	1310nm FP	PIN
8.5G-SFP-LR-10	SFP+	8.5Gb/s	10km	1310nm DFB	PIN
8.5G-SFP-ER-40	SFP+	8.5Gb/s	40km	Cooled EML	PIN
8.5G-SFP-ZR-80	SFP+	8.5Gb/s	80km	1550nm Cooled EML	APD
