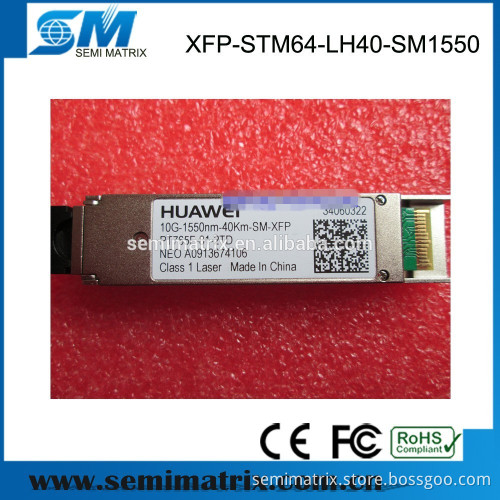

Huawei XFP optical module 10G 1550nm 40KM XFP-STM64-LH40-SM1550

Huawei XFP optical module 10G 1550nm 40KM  XFP-STM64-LH40-SM1550   Product Description   The SFP+ and XFP optical modules are 10GE hot-pluggable optical modules. Compared with the XFP optical modules, the SFP+ optical modules have a smaller caliber.
The 10GE SFP+ and XFP optical modules support LAN access and WAN access.       Specifications 1.   Attributes of 10GE optical modules

Model	Transmission Distance (km)	Standard	Fiber Type	Operating Temperature
XFP-SX-MM850	≤ 0.3	10Gbase-SR	Fiber mode: multimode	0°C to 70°C
			Pattern bandwidth: 2000 MHz*km
			Core diameter: 50 μm
			Connector type: LC
XFP-STM64-LX-SM1310	≤ 10	10Gbase-LR	Fiber mode: single-mode
XFP-STM64-LH40-SM1550	≤ 40	10Gbase-ER	Connector type: LC
XFP-STM64-SM1550-80km	≤ 80	10Gbase-ZR

     2.   Optical parameters of 10GE XFP optical modules

Model	Center Wavelength (nm)	Transmit Power (dBm)	Receiver Sensitivity (dBm)	Overload Optical Power (dBm)	Extinction Ratio (dB)
XFP-SX-MM850	850	-7.3 to -1.3	≤ -7.5	-1	3
XFP-STM64-LX-SM1310	1310	-6.0 to -1.0	≤ -14.4	0.5	6
XFP-STM64-LH40-SM1550	1550	-1 to 2	≤ -15.0	-1	8.2
XFP-STM64-SM1550-80km	1550	0 to 4	≤ -24.0	-7	9

     Detailed Images                 Payment & Warranty We offer 3 years warranty to our products.       Ordering Information

Description	Part Number
XFP-10G-  SR 850nm 0.3km LC	XFP-SX-MM850
XFP-10G- SMF 1310nm,10km,LC)	XFP-STM64-LX-SM1310
XFP-10G-SMF (1550nm,40km,LC)	XFP-STM64-LH40-SM1550
XFP-10G-SMF (1550nm,80km,LC)	XFP-STM64-SM1550-80km
SFP-GE copper (100m,RJ45)	SFP-1000BaseT
ESFP-GE-MMF(850nm,0.5km,LC)	eSFP-GE-SX-MM850
SFP-GE- SMF (1310nm,10km,LC)	SFP-GE-LX-SM1310
eSFP-GE- SMF (1310nm,40km,LC)	S-SFP-GE-LH40-SM1310
eSFP-GE- SMF (1550nm,40km,LC)	S-SFP-GE-LH40-SM1550
eSFP-GE- SMF (1550nm,80km,LC)	S-SFP-GE-LH80-SM1550
ESFP-GE- SMF (1550nm,100km,LC)	eSFP-GE-ZX100-SM1550
SFP-100M/155M- MMF (1310nm,2km,LC)	SFP-FE-SX-MM1310
ESFP-100M/155M- SMF (1310nm,15km,LC)	eSFP-FE-LX-SM1310
eSFP-FE- SMF (1310nm,40km,LC)	S-SFP-FE-LH40-SM1310
eSFP-FE- SMF (1550nm,80km,LC)	S-SFP-FE-LH80-SM1550
SFP-GE-BIDI SMF (TX1490/RX1310,10km,LC)	SFP-GE-LX-SM1490-BIDI
SFP-GE-BIDI SMF (TX1310/RX1490,10km,LC)	SFP-GE-LX-SM1310-BIDI
SFP-FE-BIDI SMF (TX1310/RX1550,15km,LC)	SFP-FE-LX-SM1310-BIDI
SFP-FE-BIDI SMF (TX1550/RX1310,15km,LC)	SFP-FE-LX-SM1550-BIDI
SFP+-10G- MMF (850nm,0.3km,LC)	OMXD30000
SFP+-10G- SMF (1310nm,10km,LC)	OSX010000
SFP+-10G- SMF (1550nm,40km,LC)	OSX040N01
