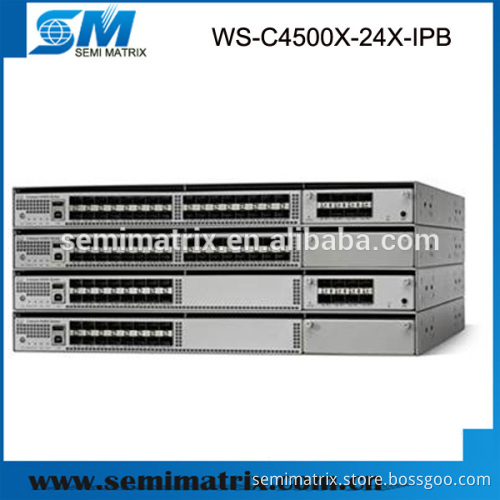

Catalyst 4500-X Series LAN Core Switch WS-C4500X-24X-IPB

Specifications -WS-C4500X-24X-IPB

-24 10GB ports

-IP Base

-Front-to-Back Cooling

-No P/S

Cisco Catalyst  4500-X  Series LAN Core Switch   WS-C4500X-24X-IPB   Product Description   Product Overview   Cisco Catalyst 4500-X Series Switch ) is a fixed aggregation switch that delivers best-in-class scalability, simplified network virtualization, and integrated network services for space-constrained environments in campus networks. It meets business growth objectives with unprecedented scalability, simplifies network virtualization with support for one-to-many (Cisco Easy Virtual Networks [EVN]) and many-to-one (Virtual Switching System [VSS]) virtual networks, and enables emerging applications by integrating many network services.   Catalyst 4500-X Series Highlights: A) Platform Scalability: Delivers up-to 800 Gbps of switching capacity, capable of scaling up to 1.6-Tbps capacity with the VSS technology. Future-proof investment with modular uplink and auto-detect 10 Gigabit Ethernet and 1 Gigabit Ethernet ports.   B) High Availability: Delivers the network availability demanded by business-critical enterprise applications through comprehensive high-availability capabilities, including VSS and EVN. Furthermore, innovative features such as redundant hot swappable fans and power supplies with AC to DC, and DC to AC failover remove single point of failure in network.   C) Application Monitoring: Enhanced application monitoring through Flexible Netflow and eight ports of line rate bidirectional Switched Port Analyzer (SPAN)/Remote Switched Port Analyzer (RSPAN). In addition Cisco IOS XE Software provides the ability to host third-party applications.   D) Security: Support for Cisco TrustSec technologyas well as robust control plane policing (CoPP) to address denial of service attacks.   E) Simplified Operations: Support for Smart Install Director, providing a single point of management enabling zero-touch deployment for new switches and stacks in in campus and branch networks.         Specifications WS-C4500X-24X-IPB

GENERAL
Device Type	Switch - 24 ports
Enclosure Type	Rack-mountable
Subtype	10 Gigabit Ethernet
Ports	24 x 10 Gigabit
Performance	Throughput : 800 Gbps
	IPv4 routing : 250 Mpps
	IPv6 routing : 125 Mpps
Capacity	IPv4 forwarding table entries : 64000
	IPv6 forwarding table entries : 32000
	NetFlow entries : 128000
	Virtual interfaces (VLANs) : 4094
	IGMP groups : 32000
	Multicast entries (IPv4) : 24000
	Multicast entries (IPv6) : 12000
	ARP entries : 47000
	Spanning Tree Protocol instances : 10000
	QoS hardware queues : 64
	QoS hardware entries : 128000
	ACL entries : 131072
MAC Address Table Size	55K entries
Jumbo Frame Support	9216
Remote Management Protocol	RMON 1, RMON 2
Features	Layer 2 switching, VLAN support, Access Control List (ACL) support, Quality of Service (QoS), front to back airflow, redundant hot swappable fans
Compliant Standards	IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s
Processor	: 1.5 GHz
RAM	4 GB - DDR2 SDRAM
Flash Memory	2 GB (max)
EXPANSION / CONNECTIVITY
Interfaces	24 x 10Gb Ethernet
	1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - management
	1 x USB - Type A
	1 x console - RJ-45
Expansion Slots	1 (total) / 1 (free) x SD Memory Card
	1 (total) / 1 (free) x Expansion Slot
POWER
Power Device	Internal power supply - hot-plug
Installed Qty	0 (installed) / 2 (max)
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Power Consumption Operational	330 Watt
MISCELLANEOUS
MTBF	209,330 hours
Compliant Standards	CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, EN300-386, UL 60950-1, AS/NZS, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition
SOFTWARE / SYSTEM REQUIREMENTS
Software Included	Cisco IOS IP Base
MANUFACTURER WARRANTY
Service & Support	Limited lifetime warranty
Service & Support Details	Limited warranty - advance parts replacement - lifetime - response time: 10 days
ENVIRONMENTAL PARAMETERS
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Min Storage Temperature	-40 °C
Max Storage Temperature	70 °C

       Payment & Warranty We offer 3 years warranty to our products.           Packaging & Shipping   Cisco ORIGINAL NEW IN BOX WITH EXTRA PROTECTION.                 Ordering Information     Ordering Information for Cisco Catalyst 4500-X  Series Switches

Product Number	Description
Base Switch PIDs
WS-C4500X-16SFP+	Catalyst 4500-X 16 Port 10GE IP Base, Front-to-Back Cooling, No P/S
WS-C4500X-24X-IPB	Catalyst 4500-X 24 Port 10GE IP Base, Front-to-Back Cooling, No P/S
WS-C4500X-24X-ES	Catalyst 4500-X 24 Port 10GE Enterprise Services, Front-to-Back Cooling, No P/S
WS-C4500X-32SFP+	Catalyst 4500-X 32 Port 10GE IP Base, Front-to-Back Cooling, No P/S
WS-C4500X-40X-ES	Catalyst 4500-X 40 Port 10GE Enterprise Services, Front-to-Back Cooling, No P/S
C4KX-NM-8SFP+	Catalyst 4500-X 8 Port 10GE Network Module
WS-C4500X-F-16SFP+	Catalyst 4500-X 16 Port 10GE IP Base, Back-to-Front Cooling, No P/S
WS-C4500X-F-32SFP+	Catalyst 4500-X 32 Port 10GE IP Base, Back-to-Front Cooling, No P/S
FRU and OIR FANs
C4KX-FAN-F	Catalyst 4500-X Back-to-Front Cooling Fan
C4KX-FAN-R	Catalyst 4500-X Front-to-Back Cooling Fan
Power Supply
C4KX-PWR-750AC-F	Catalyst 4500-X 750W AC Back-to-Front Cooling Power Supply
C4KX-PWR-750AC-R	Catalyst 4500-X 750W AC Front-to-Back Cooling Power Supply
C4KX-PWR-750DC-F	Catalyst 4500-X 750W DC Back-to-Front Cooling Power Supply
C4KX-PWR-750DC-R	Catalyst 4500-X 750W DC Front-to-Back Cooling Power Supply
Accessories
CAB-CON-C4K-RJ45	Console Cable 6ft with RJ-45-to-RJ-45
SD-X45-2GB-E	Cisco Catalyst 4500 2-GB SD card
USB-X45-4GB-E	Cisco Catalyst 4500 4-GB USB device
