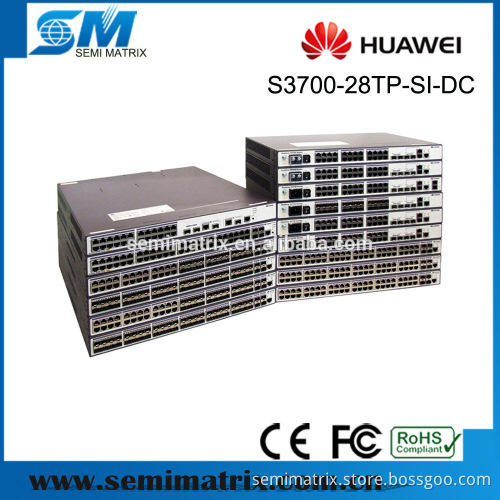

S3700 Series 24 Ports DC Power Enterprise Switches S3700-28TP-SI-DC

Get Latest Price

Delivery Time:: 1 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Huawei S3700 Series 24 Ports DC Power Enterprise Switches S3700-28TP-SI-DC------ 24 Ethernet 10/100 ports, 2 Gig SFP, and 2 dual-purpose 10/100/1,000 or SFP, DC -48V Product Description Product Overview The S3700 series enterprise switches (S3700s) are next-generation energy-saving Layer 3 switches. The S3700 utilizes cutting-edge hardware and Huawei Versatile Routing Platform (VRP) software to provide high-performance access and aggregation to an enterprise campus network. The S3700 is easy to install and maintain. With its flexible VLAN deployment, PoE capabilities, comprehensive routing functions, and capability to migrate to an IPv6 network, the S3700 helps enterprise customers build next-generation IT networks. In addition, the S3700 uses advanced reliability technologies such as stacking, VRRP, and RRPP, enhancing network reliability and diversity. The S3700 is a box device that is 1U high. It is available in a standard version (SI), an enhanced version (EI). The SI version provides Layer 2 functions and basic Layer 3 functions. The EI version supports complex routing protocols and provides more functions than the SI version offers.

Specifications Product Secifications

Item	S3700-SI*	S3700-EI*
Ports Description	S3700-28TP-EI**/S3700-28TP-SI/S3700-28TP-PWR-EI/S3700-28TP-EI-MC:24 x 10/100 Base-TX S3700-52P-EI/S3700-52P-SI/S3700-52P-PWR-EI:48 x 10/100 Base-T S3700-28TP-EI-24S:24 x 100 Base-FX S3700-52P-EI-24S:24 x 10/100 Base-T + 24 x 100 Base-FX S3700-52P-EI-48S:48 x 100 Base-FX
Ports Description	SI/EI 28 ports: 2 x 1,000 Base-X, 2 x GE Combo SI/EI 52 ports: 2 x 100/1,000 Base-X, 2 x 1,000 Base-X
MAC Address Table	IEEE 802.1d compliance 16K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
VLANs	4K VLANs Guest VLANs, voice VLAN, and super VLAN VLAN assignment based on MAC addresses, protocols, and IP subnets QinQ Selective QinQ 1:1 VLAN mapping N:1 VLAN mapping
Reliability	RRPP (ring topology, intersecting rings, and multi-instance), implementing protection switchover within 50 ms Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection Smart Ethernet Protection (SEP)
Reliability	N/A	BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM
IP Routing	Static routing, RIPv1, RIPv2, and ECMP
IP Routing	N/A	OSPF, IS-IS, and BGP
IPv6 Features	Neighbor Discovery (ND) Path MTU (PMTU) IPv6 ping, IPv6 tracert, and IPv6 Telnet Manually configured tunnel 6to4 tunnel ISATAP tunnel ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type MLD v1/v2 snooping
Multicast	1 K multicast groups IGMP v1/v2/v3 snooping and IGMP fast leave Multicast VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics
Multicast	N/A	IGMP v1/v2/v3, PIM-SM, and PIM-SSM
QoS/ACL	Rate limiting on packets sent and received by an interface Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port WRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithms Re-marking of the 802.1p priority and DSCP priority Packet filtering on Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on ports
Security and Access	User privilege management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, interface, and VLAN Port isolation, port security, and sticky MAC Blackhole MAC address entries Limit on the number of learned MAC addresses 802.1x authentication and limit on the number of users on an interface AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC SSH v2.0 CPU defense Blacklist and whitelist DHCP Server,DHCP Relay,DHCP Snooping,and DHCP Security
Surge Protection	7 kV surge protection capability on service ports
Management and Maintenance	iStack MAC Forced Forwarding (MFF) Remote configuration and maintenance using Telnet Auto-Config. Virtual cable test Ethernet OAM (IEEE 802.3ah and 802.1ag) Dying gasp power-off alarm (S3700-28TP-EI-MC-AC) SNMPv1/v2c/v3 and RMON MUX VLAN and GVRP Web NMS
Operating Environment	Operating temperature: 0°C to 50°C (long-term); Relative humidity: 10% to 90% (non-condensing)
Power Supply	AC: Rated voltage range: 100V to 240V; 50/60 Hz Maximum voltage range: 90V to 264V; 50/60 Hz DC: Rated voltage range: –48V to –60V Maximum voltage range: –36V to –72V Note: PoE-support switches do not use DC power supplies.
Dimensions (W x D x H)	S3700-28TP-EI/SI, S3700-28TP-EI-MC, S3700-28TP-EI-24S, and S3700-52P-EI/SI: 442 mm x 220 mm x 43.6 mm S3700-28TP-PWR-EI/SI, S3700-52P-EI-48S, S3700-52P-EI-24S, and S3700-52P-PWR-EI/SI: 442 mm x 420 mm x 43.6 mm
Weight	S3700-28TP-SI < 2.5 Kg S3700-52P-SI < 3 Kg S3700-28TP-PWR-SI < 4 Kg (without power supply) S3700-52P-PWR-SI < 4.3 Kg (without power supply)	S3700-28TP-EI < 2.5 Kg S3700-28TP-EI-MC < 2.5 Kg S3700-28TP-EI-24S < 2.6 Kg S3700-52P-EI < 3 Kg S3700-52P-EI-24S < 4.8 Kg S3700-52P-EI-48S < 4.8 Kg S3700-28TP-PWR-EI < 4 Kg (without power supply) S3700-52P-PWR-EI < 4.3 Kg (without power supply)
Power Consumption	S3700-28TP-SI < 20W S3700-52P-SI < 38W S3700-28TP-PWR-SI < 818W (PoE: 740W) S3700-52P-PWR-SI < 880W (PoE: 740W)	S3700-28TP-EI < 20W S3700-28TP-EI-MC < 20W S3700-28TP-EI-24S < 52W S3700-52P-EI < 38W S3700-52P-EI-24S < 65W S3700-52P-EI-48S < 90W S3700-28TP-PWR-EI < 818W (PoE: 740W) S3700-52P-PWR-EI < 880W (PoE: 740W)
The product information may contain the product functions provided in future. For the actual product specifications, contact Huawei local sales office.

The S3700 is provided in the standard version (SI) , enhanced version (EI). The S3700 switches of the EI series are collectively called S3700-EI, the S3700 switches of the SI series are collectively called S3700-SI. S3700-28TP-EI is short for S3700-28TP-EI-AC and S3700-28TP-EI-DC. As product versions are irrelevant to the power supply mode, the product names mentioned in product specifications do not contain AC or DC. This rule also applies to other product models. Applications Networking and Applications Large-scale enterprise networks The S3700 can function as an access device on large-scale enterprise networks

Medium- and small-scale enterprise networks
Medium- and small-scale enterprises can use S3700s as core switches. The S3700s provide routing functions to enable users in different departments to communicate with each other. Multiple S3700s can be stacked to expand system capacity and increase the number of ports.

Payment & Warranty Normally we offer 1 year warranty for our products and some products get 3 years warranty.

Packaging & Shipping Choose the shipping way you like!!!

Ordering Information Ordering information

S3700 models	Product Description
S3700-28TP-SI-DC	24 Ethernet 10/100 ports, 2 Gig SFP, and 2 dual-purpose 10/100/1,000 or SFP, DC -48V
S3700-28TP-EI-DC	24 Ethernet 10/100 ports, 2 Gig SFP, and 2 dual-purpose 10/100/1,000 or SFP, DC -48V
S3700-52P-PWR-EI	48 Ethernet 10/100 ports, 4 Gig SFP, PoE+, Dual Slots of power, Without Power Module
S3700-28TP-PWR-EI	24 Ethernet 10/100 ports, 2 Gig SFP, and 2 dual-purpose 10/100/1,000 or SFP, PoE+, Dual Slots of power, Without Power Module
S3700-28TP-EI-AC	24 Ethernet 10/100 ports, 2 Gig SFP, and 2 dual-purpose 10/100/1,000 or SFP, AC 110/220V
S3700-28TP-EI-24S-AC	24 FE SFP, 2 Gig SFP and 2 dual-purpose 10/100/1,000 or SFP, AC 110/220V
S3700-28TP-EI-MC-AC	24 Ethernet 10/100 ports, 2 Gig SFP, and 2 dual-purpose 10/100/1,000 or SFP, 2 MC ports, AC 110/220V
S3700-52P-SI-AC	48 Ethernet 10/100 ports, 4 Gig SFP, AC 110/220V
S3700-52P-EI-48S-AC	48 FE SFP, 4 Gig SFP, AC 110/220V
S3700-28TP-SI-AC	24 Ethernet 10/100 ports, 2 Gig SFP, and 2 dual-purpose 10/100/1,000 or SFP, AC 110/220V
S3700-52P-EI-24S-AC	24 Ethernet 10/100 ports, 24 FE SFP, 4 Gig SFP, AC 110/220V
S3700-52P-EI-AC	48 Ethernet 10/100 ports, 4 Gig SFP, AC 110/220V
S3700-52P-PWR-SI	48 Ethernet 10/100 ports, 4 Gig SFP, PoE+, Dual Slots of Power, Including Single 500W AC Power
S3700-28TP-PWR-SI	24 Ethernet 10/100 ports, 2 Gig SFP, and 2 dual-purpose 10/100/1,000 or SFP, PoE+, Dual Slots of Power, Including Single 500W AC Power
