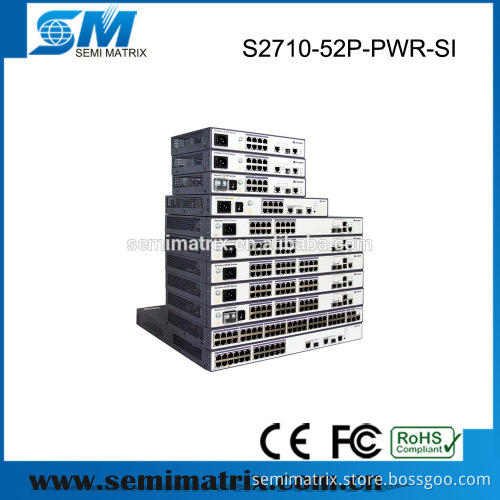

S2700 Series 48 ports POE Enterprise Switch S2710-52P-PWR-SI

Get Latest Price

Delivery Time:: 1 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Huawei S2700 Series 48 ports POE Enterprise Switch S2710-52P-PWR-SI------ 48 Ethernet 10/100 ports,4 Gig SFP,PoE+,Dual Slots of Power,Including Single 500W AC Power Product Description Product Overview S2700 series enterprise switches, including S2710, S2750, and S2751 series, are next-generation, energy-saving intelligent 100M Ethernet switches developed by Huawei. The S2700 uses cutting-edge switching technology and Huawei’s Versatile Routing Platform (VRP) software to meet the demand for multi-service provisioning and access on Ethernet networks. They are easy to install and maintain. With its flexible network deployment, comprehensive security, Quality of Service (QoS) policies, and energy-saving technology, the S2700 helps enterprise customers build next-generation IT networks.
The S2700 is a box device that is 1U 1.75 in. (44.45 mm) high. It is available in a standard version (SI) or an enhanced version (EI).

Specifications Product specifications

Item	S2700-SI/S2710-SI*	S2700-EI	S2750-EI/S2751-EI
Downlink Ports	S2700-9TP-SI**/S2700-9TP-EI/S2700-9TP-PWR-EI: 8 10/100 Base-TX Ethernet ports S2700-18TP-SI/S2700-18TP-EI/S2750-20TP-PWR-EI-AC: 16 10/100 Base-TX Ethernet ports S2700-26TP-SI/S2700-26TP-EI/S2700-26TP-PWR-EI/S2750-28TP-EI-AC/S2750-28TP-PWR-EI-AC/S2751-28TP-PWR-EI-AC: 24 10/100 Base-TX Ethernet ports S2710-52P-SI/S2700-52P-EI: 48 10/100 Base-TX Ethernet ports
Uplink Ports	S2700-9TP-SI/S2700-9TP-EI/S2700-9TP-PWR-EI/: 1 dual-purpose 10/100/1,000 or SFP S2700-18TP-EI /S2700-18TP-SI /S2700-26TP-EI /S2700-26TP-EI /S2700-26TP-PWR-EI/S2700-26TP-SI: 2 dual-purpose 10/100/1,000 or SFP S2710-52P-SI/S2700-52P-EI/: 4 Gb SFP S2750-20TP-PWR-EI /S2750-28TP-EI-AC/S2750-28TP-PWR-EI/S2751-28TP-PWR-EI: 2 Gb SFP and 2 dual-purpose 10/100/1,000 or SFP
MAC Address	8 K MAC address entries Manual deletion of dynamic MAC address entries Aging time of MAC address configurable Black hole MAC address entries	8 K MAC address entries Manual deletion of dynamic MAC address entries Aging time of MAC address configurable Black hole MAC address entries MAC address learning control based on ports	16 K MAC address entries Manual deletion of dynamic MAC address entries Aging time of MAC address configurable MAC address learning control based on ports Black hole MAC address entries
VLAN Feature	4K active VLANs, complying with IEEE 802.1Q Port-based VLAN assignment
VLAN Feature	N/A	MAC address-based assignment Port-based QinQ
QoS	Outbound port-based rate limiting and flow-based rate limiting 4 or 8 queues of different priorities on each port Mapping between 802.1ppriorities and queues SP, WRR, and SP + WRR algorithms	Port-based rate limiting and flow-based rate limiting 4 or 8 queues of different priorities on each port Mapping between 802.1ppriorities and queues SP, WRR, and SP + WRR algorithms	Port-based rate limiting and flow-based rate limiting 8 queues of different priorities on each port Mapping between 802.1p priorities and queues SP, WRR, and SP + WRR algorithms
QoS	N/A		Packet-based priority remark and packet redirection
IPv6 Features	IPv6 protocol Static IPv6 routes	IPv6 protocol Static IPv6 routes Supports MLD v1/v2 snooping
Multicast	IGMP v1/v2/v3 snooping Port-based rate limiting formulticast packets	MVLAN Controllable multicast IGMP v1/v2/v3 snooping Port-based rate limiting for multicast packets
Reliability	S2700-SI: STP (IEEE 802.1d), RSTP (IEEE 802.1w) S2710-SI: STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)	STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s), RRPP topology, and RRPP multi-instance	STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s), and RRPP topology and RRPP multi-instance SEP and ERPS (G.8032) Smart Link tree topology and Smart Link multi-instance, implementing millisecond-level protective switchover
Traffic Sampling	N/A		sFlow
Security and Access Features	S2700-SI: Storm suppression S2710-SI: Storm suppression, IP Source Guard	802.1x authentication and limit on the number of users on an interface Storm suppression IP Source Guard
Security and Access Features	S2700-SI: Multiple authentication methods including AAA, RADIUS, andTACACS+ Port isolation, multicasesuppression, broadcast, and unknown unicast packets CPU defense S2710-SI: Multiple authentication methods including AAA, RADIUS, and TACACS+ Port isolation, multicasesuppression, broadcast, and unknown unicast packets CPU defense DHCP snooping	Multiple authentication methods including AAA, RADIUS, and TACACS+ 802.1x authentication, MAC address authentication, MAC bypass authentication DHCP snooping Port isolation and sticky MAC Packet filtering based on MAC addresses Multicast suppression, broadcast, and unknown unicast packets Limit on the number of learned MAC addresses CPU defense S2750-EI/S2751-EI: DHCP relay
Surge Protection	Surge protection capability of service ports: 6 kV (1 kV on PoE switches)		Surge protection capability of service ports: 6 kV
Management	Stack (S2710-52P-SI-AC, S2710-52P-PWR-SI, S2700-52P-EI-AC, and S2700-52P-PWR-EI) Auto-config CLI-based configuration Remote configuration using Telnet SNMP v1/v2C/v3 Remote network monitoring SSHv2 Web-based device management		Stack Easy Operation CLI-based configuration Remote configuration using Telnet SNMP v1/v2C/v3 Remote network monitoring SSHv2 Web-based device management
Interoperability	NA		Supports VBST (Compatible withPVST/PVST+/RPVST)
			Supports LNP (similar to DTP)
			Supports VCMP (similar to VTP)
Operating Environment	Long-term operating temperature: 23^oF to 122^oF (–5°C to 50°C) Relative humidity: 10% to 90% (non-condensing)
Power	Rated AC voltage: 100V to 240V, 50/60 Hz, Maximum voltage: 90V to 264V, 50/60 Hz Rated DC voltage: –48V to –60V, Maximum voltage: –36V to –72V Note: PoE models do not use DC power supplies.
Dimensions (W x D x H)	S2700-9TP-EI/SI: 9.8 in. x 7.1 in. x 1.7 in. (250 mm × 180 mm × 43.6 mm) S2700-9TP-PWR-EI: 12.6 in. x 8.7 in. x 1.7 in. (320 mm × 220 mm × 43.6 mm) S2700-18TP-EI/SI/S2700-26TP-EI/SI/S2750-28TP-EI-AC: 17.4 in. x 8.7 in. x 1.7 in. (442 mm × 220 mm × 43.6 mm) S2700-26TP-PWR-EI: 17.4 in. x 16.5 in. x 1.7 in. (442 mm × 420 mm × 43.6 mm) S2710-52P-SI/S2700-52P-EI: 17.4 in. x 8.7 in. x 1.7 in. (442 mm × 220 mm × 43.6 mm) S2750-20TP-PWR-EI-AC/S2750-28TP-PWR-EI-AC/S2751-28TP-PWR-EI-AC/ S2720-28TP-EI-AC: 17.4 in. x 12.2 in. x 1.7 in. (442 mm × 310 mm × 43.6 mm)
Weight	S2700-9TP-SI < 3.1 lb. (1.4 kg) S2700-18TP-SI < 5.3 lb. (2.4 kg) S2700-26TP-SI < 5.3 lb. (2.4 kg) S2710-52P-SI < 6.6 lb. (3 kg)	S2700-9TP-SI < 3.1 lb. (1.4 kg) S2700-9TP-PWR-EI < 5.5 lb. (2.5 kg) S2700-18TP-EI < 5.3 lb. (2.4 kg) S2700-26TP-EI < 5.3 lb. (2.4 kg) S2700-52P-EI < 6.6 lb. (3 kg) S2700-26TP-PWR-EI < 8.8 lb. (4 kg) without power supply	S2750-20TP-PWR-EI < 9.9 lb. (4.5 kg) S2750-28TP-EI < 6.6 lb. (3 kg) S2750-28TP-PWR-EI < 9.9 lb. (4.5 kg) S2751-28TP-PWR-EI-AC < 9.9 lb. (4.5 kg)
Power Consumption	S2700-9TP-SI < 12.8W S2700-18TP-SI < 14.5W S2700-26TP-SI < 15.5W S2710-52P-SI < 38W	S2700-9TP-EI < 12.8W S2700-9TP-PWR-EI < 154W(PoE: 124W) S2700-18TP-EI < 14.5W S2700-26TP-EI < 15.5W S2700-52P-EI < 38W S2700-26TP-PWR-EI < 808W(PoE: 740W)	S2750-20TP-PWR-EI < 435W S2750-28TP-EI < 15.7W S2750-28TP-PWR-EI < 445W S2751-28TP-PWR-EI-AC < 147W S2720-28TP-EI-AC < 5.7W
The product information may contain the product functions provided in future. For the actual product specifications, contact Huawei local sales office.

The S2700 is provided in the standard version (SI) and enhanced version (EI). The S2700 switches of the EI series are collectively called S2700-EI, and the S2700 switches of the SI series are collectively called S2700-SI. S2710-SI is a sub-series switch of S2700-SI. S2750-EI/S2751-EI are the sub-series switches of S2700-EI.
*S2700-9TP-SI is short for S2700-9TP-SI-AC. As product versions are irrelevant to the power supply mode, the product names mentioned in product specifications do not contain AC or DC. This rule also applies to other product models. Applications

Payment & Warranty We offer 1 year warranty to our products.

Packaging & Shipping

Ordering Information Ordering information

S2700 switch models	Product Description
S2700-9TP-EI-AC	8 Ethernet 10/100 ports,1 dual-purpose 10/100/1000 or SFP,AC 110/220V
S2700-9TP-EI-DC	8 Ethernet 10/100 ports,1 dual-purpose 10/100/1000 or SFP,DC -48V
S2700-9TP-SI-AC	8 Ethernet 10/100 ports,1 dual-purpose 10/100/1000 or SFP,AC 110/220V
S2700-18TP-EI-AC	16 Ethernet 10/100 ports,2 dual-purpose 10/100/1000 or SFP,AC 110/220V
S2700-18TP-SI-AC	16 Ethernet 10/100 ports,2 dual-purpose 10/100/1000 or SFP,AC 110/220V
S2700-26TP-EI-AC	24 Ethernet 10/100 ports,2 dual-purpose 10/100/1000 or SFP,AC 110/220V
S2700-26TP-EI-DC	24 Ethernet 10/100 ports,2 dual-purpose 10/100/1000 or SFP,DC -48V
S2700-26TP-SI-AC	24 Ethernet 10/100 ports,2 dual-purpose 10/100/1000 or SFP,AC 110/220V
S2700-52P-EI-AC	48 Ethernet 10/100 ports,4 Gig SFP,AC 110/220V
S2710-52P-SI-AC	48 Ethernet 10/100 ports,4 Gig SFP,AC 110/220V
S2700-9TP-PWR-EI	8 Ethernet 10/100 ports, PoE+,1 dual-purpose 10/100/1000 or SFP,AC 110/220V
S2700-26TP-PWR-EI	24 Ethernet 10/100 ports,2 dual-purpose 10/100/1000 or SFP, PoE+,without power module
S2700-52P-PWR-EI	48 Ethernet 10/100 ports,4 Gig SFP,PoE+,Dual Slots of Power,Including Single 500W AC Power
S2710-52P-PWR-SI	48 Ethernet 10/100 ports,4 Gig SFP,PoE+,Dual Slots of Power,Including Single 500W AC Power
S2750-20TP-PWR-EI-AC	16 Ethernet 10/100 ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, PoE+,AC 110/220V
S2750-28TP-EI-AC	24 Ethernet 10/100 ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V
S2750-28TP-PWR-EI-AC	24 Ethernet 10/100 ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,PoE+,AC 110/220V
S2751-28TP-PWR-EI-AC	24 Ethernet 10/100 ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,PoE+,AC 110/220V
S2720-28TP-EI-AC	24 Ethernet 10/100 ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V
