poly solar module 80w18v with cables for LED light
  • poly solar module 80w18v with cables for LED light
poly solar module 80w18v with cables for LED light

poly solar module 80w18v with cables for LED light

Delivery Time:
10 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Guangdong, China (Mainland)
Product Description
Product Description

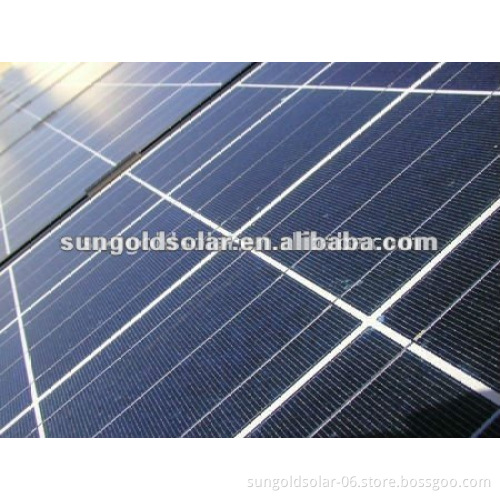

poly solar module 80w18v with cables for LED light

Chinese poly solar panel 80W



1. Solar panel/solar module/PV module/produced with high conversion effeciency, which purchased from Q-CELLS, CONERGY, ERSOL;

2. High quality of TPT, EVA, Tempered glass, aluminum frame to laminate solar panels and waterproof junction box and label;

3. With long lifetime of 25-30years, 5-10years warranty with and stable characterstics and performance;

4. We laminate solar panels from 5w-300w, with mono crystalline and poly crystalline solar cells.

5.We have TUV, ISO 9001/14001, CE, CEC certificate and so on.



Electrical Characteristics:

Model

SGP-80W

Cells size (mm):

156*89

Cells per module:

4*9

Module size (mm):

674*865*30mm

Power tolerance:

+/-3%

Nominal peak power(WP):

80

Nominal voltage(V):

17.5

Nominal current (A):

4.57

NOCT:

45+/-2

Voltage temperature coefficient:

-0.33%/C

Current temperature coefficient:

+0.05%/C

Power temperature coefficient:

-0.23%/C

Open circuit voltage (Voc):

21.6

Short cirsuit current(Isc):

4.93

Conversion efficiency:

15.9%C

Operating temperature:

-40 to+85

Max system voltage:

1000V DC

         Warranty:    5 years product warranty    10years 90% of power output   25years 80% of power output           EFFICIENCY   •Low voltage-temperature coefficient allows higher power output at high-temperature condition
•High efficient, high reliable solar cells ensure our product output stability
MATERIALS   •Advanced EVA encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation
•The sturdy, anodized aluminum frame allows the modules to be mounted on a variety of standard racking systems and to withstand harshest conditions   •Ultra reliable bypass diodes prevent damage through overheating due to shaded or defective cells
•Innovative, environmentally friendly packing method using pile-edges ensures modules arrive in perfect condition
•New frame design incorporating hexagonal shaped drainage holes, with more grounding holes, provide flexible installation and use       BENEFITS   •Manufactured in an ISO 9001:2008 certified plant
•High efficiency, high safety, high reliability
•Output power tolerance of +/-3%
•25-year limited warranty on power output, 5-year limited warranty on materials and workmanship           ...
