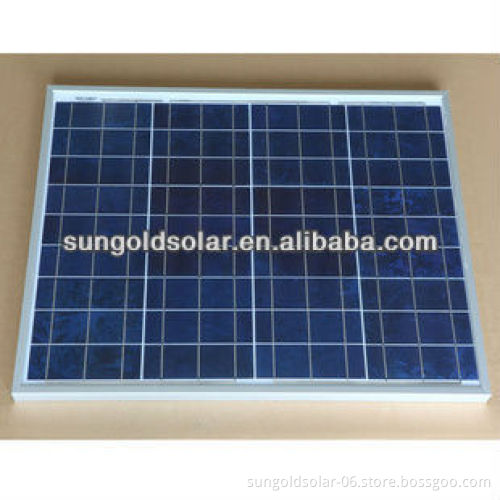

Green solar power engergy poly solar panel /solar module kit 45w

Specifications green solar power engergy poly solar panel /solar module 45w

1.CEC,ISO9001/14000,CE and ROHS certified

2.competitive price

Green solar power engergy poly solar panel /solar module kit 45w / poly solar panel/solar module kit   Quality and Safety   1). solar panel made of Germany manufactured Bosch solar cell.   2). Management Certification: ISO 9001:2008 TUV CE  RoHS  ISO 14001:2004   3).  Factory directly supply   4). Perfect quality and long lifespan   5).5-year limited product warranty   6).25-year linear power warranty   7).12 years at 90% of minimal rated power output and 25 years at 85% of minimal rated power output   8).25 years quality warranty   EFFICIENCY 1.STC: lrradiance 1000W/m2,Module temperature 25,AM=1.5  2.Nominal 24V DC standard output. 3.High efficiency, good quality. 4.High transmission tempered glass. 5.TPT imported from Krempel, Germany 6.Rugged design to withstands high wind pressure and snow load, easy installation. Product parameters

Electrical Characteristics
Model	SGP-45w
Cells size (mm):	156*50
Cells per module:	36pcs
Module size (mm):	670*520*25
Power tolerance:	+/-3%
Nominal peak power(WP):	45w
Nominal voltage(V):	17.5
Nominal current (A):	2.57
NOCT:	45+/-2degree
Voltage temperature coefficient:	-0.33%/degree
Current temperature coefficient:	+0.05%/degree
Power temperature coefficient:	-0.23%/degree
Open circuit voltage (Voc):	21.6
Short cirsuit current(Isc):	2.78
Conversion efficiency:	15.94%
Operating temperature:	-40 to+85degree
Max system voltage:	1000V DC
Surface Maximum Load Capacity	60m/s(200kg/sq. m)
Cell power	3.88w

    MATERIALS •Advanced EVA encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation
•The sturdy, anodized aluminum frame allows the modules to be mounted on a variety of standard racking systems and to withstand harshest conditions •Ultra reliable bypass diodes prevent damage through overheating due to shaded or defective cells
•Innovative, environmentally friendly packing method using pile-edges ensures modules arrive in perfect condition
•New frame design incorporating hexagonal shaped drainage holes, with more grounding holes, provide flexible installation and use   OEM services:    We supply OEM services, you can put your logo and picture on the solar panel if you have any other requirement, please feel free to contact me at anytime. Any suggestion will be appreciated.    Note: we can design different watts panel according to customer's requirement.   Quality and Safety 1). solar panel 200w made of Germany manufactured Bosch solar cell. 2). Management Certification: ISO 9001:2008 TUV CE  RoHS  ISO 14001:2004 3).  Factory directly supply 4). Perfect quality and long lifespan 5).5-year limited product warranty 6).25-year linear power warranty 7).12 years at 90% of minimal rated power output and 25 years at 85% of minimal rated power output 8).25 years quality warranty     ....
