Manufacturers solar panel power energy solar system in dubai

Specifications 1.solar panels in dubai

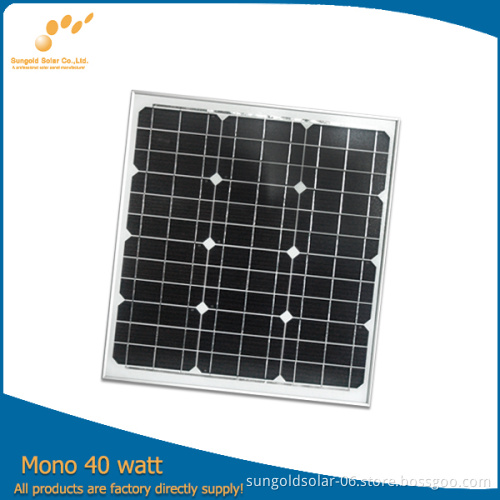

2.Good price mono watt solar panels

3.40watt panel mono with Bosch cell

4.size:505*550*25mm

Manufacturers solar panel power energy solar system in dubai / solar panels in dubai / solar panel mono Features
1.Designed according to and complying with all requirements in internaltional standard. 2.Tempered front glass, EVA, weather-proof substrate film and a sturdy anodized aluminium frame provide adequate protection against various environmental conditions 3.The junction box and connectors with IP65 protection degree provide convenient and reliable electric connection the incorporated schottky bypass diodes protect the module from hot spot damages 4.Cells are 100% visually inspected and sorted according to electric characteristics against mismatching 5.Visual inspection, performance measurement and dielectric strength tests on every product 6.All backed by a 25 year limited power warranty (≥80%) and 5 years workmanship warranty 7.Customization upon request 8.welcome to enquiry us for newest solar panel price. Efficiency
Low voltage-temperature coefficient allows higher power output at high-temperature condition
High efficient, high reliable solar cells ensure our product output stability Product parameters

Electrical Characteristics
Model	SGM-40W-18v
Cells size (mm):	156*39.39
Cells per module:	36pcs
material	monocrystalline Silicon
Module size (mm):	505*550*25mm
Power tolerance:	+/-3%
Nominal peak power(WP):	40w
Nominal voltage(V):	17.5
Nominal current (A):	2.29
NOCT:	45+/-2degree
Voltage temperature coefficient:	-0.33%/degree
Current temperature coefficient:	+0.05%/degree
Power temperature coefficient:	-0.23%/degree
Open circuit voltage (Voc):	21.6
Short cirsuit current(Isc):	2.47
Conversion efficiency:	17.87%
Product name :	solar panels in dubai
Max system voltage:	1000V DC
Surface Maximum Load Capacity	60m/s(200kg/sq. m)

material Glass
1. High light transmission no less than 91.6%
2. Excellent mechanical loading performance (5400 PA)
EVA
1. High light transmission
2.High GEL and peeling strength guarantying strong encapsulation
3. Good ultraviolet aging resistance
4. Excellent oxidation resistance
5. TUV certified Cell
1. Excellent efficiency and long term reliability
2. Good performance under high temperature and low irradiance conditions
3.100% In-line Electroluminescence (EL) tested
4. Positive tolerance for each panel
5. Cell efficiency filling by 0.2 percentage
6. TUV certified
Back sheet
1. TPT based encapsulation and protection
2. Good aging resistance
3. Excellent adhesion and ultraviolet stability
4. TUV certified
Frame
1. Anodized/ Electrophoretic aluminium means durable protection from environment
2. Unique design profile ensuring strong mechanical loading performance
3. Silver/ Black color available
Junction box
1. Climate membrance: Excellent heat dissipation, prevent steam coming from outside and corrosion of diode by inside steam on the condition of big difference in temperature
2. IP65 protection
3. TUV certified
Connector
1. MC4 compatible/ IP65 or MC4 original/ IP67 Main Export Markets:
1. Central/South America
2. Eastern Europe
3.MID East/Africa
4. North America
5. Western Europe

The Sungold Solar Advantage
Our products are backed by an industry standard 5/10/25 warranty to assure the longevitiy of your system. Not only this, we assure the quality of our modules with 100% infrared scanning to go with our standard quality assurance procedures. Depending on the availability by your location, we may also be able to offer liability insurance coverage for our products.
When you're ready to go green, give us a call, or contact us via our inquiry form! Application ....
