Sungold 150W Flexible Solar Panel Supplier for RV, Caravan, Boat, and Yacht (2024)

Sungold 150W Flexible Solar Panel Supplier for RV, Caravan, Boat, and Yacht (2024)

$65.00

100-499 piece
$59.00

≥500 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,Western Union,T/T

Product Description

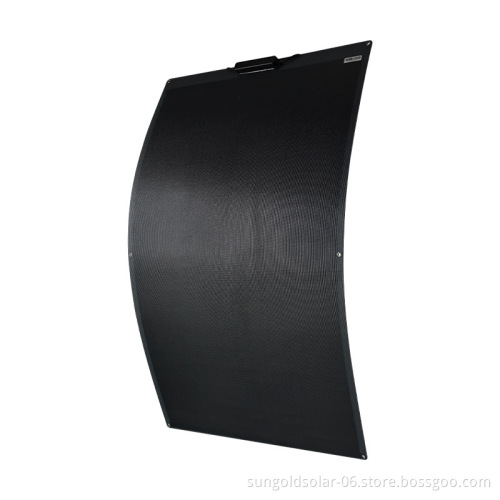

Sungold 150W Balcony solar Hot Selling 150w Flexible Car Solar Panel Supplier Rv Caravan Boat Yacht solar panel 2024

Product Feature

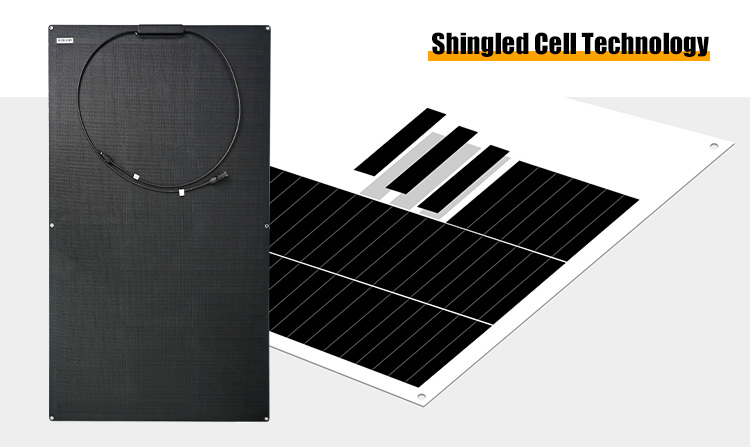

Shingled-cell technology eliminates cell spacing by overlapping small cells.

Therefore morecells can be packaged in the same module area, which directly leads to

an increase in module power. Shingled modules can produce more electricity in the same amount of time.

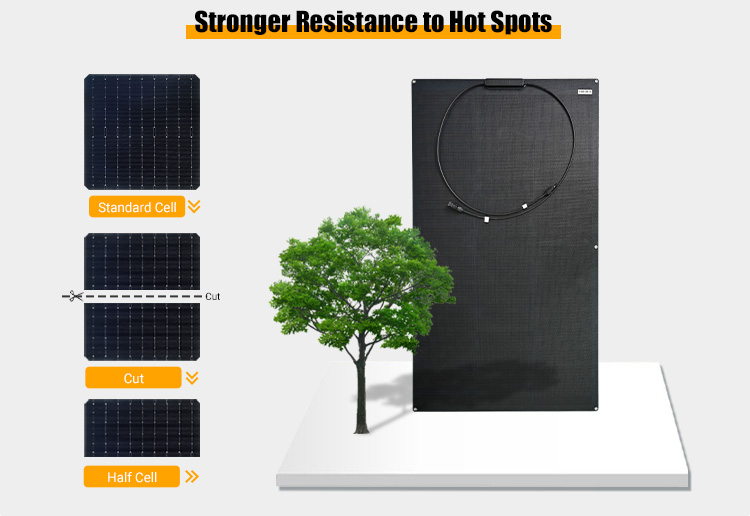

Shingled solar panels can effectively reduce power loss and hot

spot problems caused by shading. So the solar panels will perform longer and last longer.

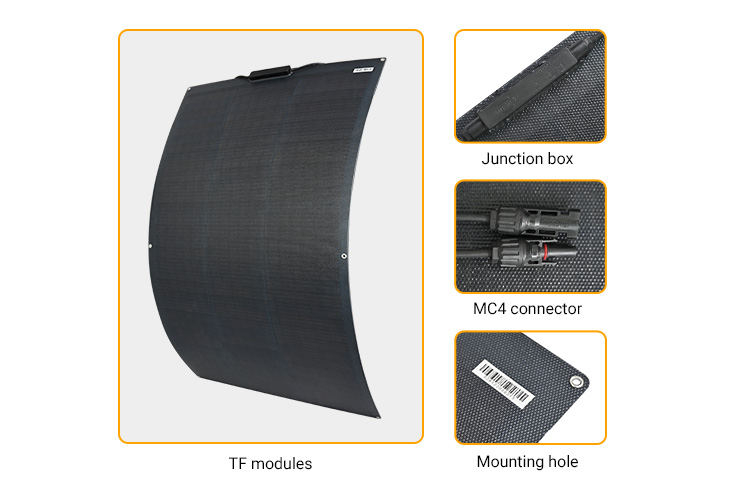

Product Details

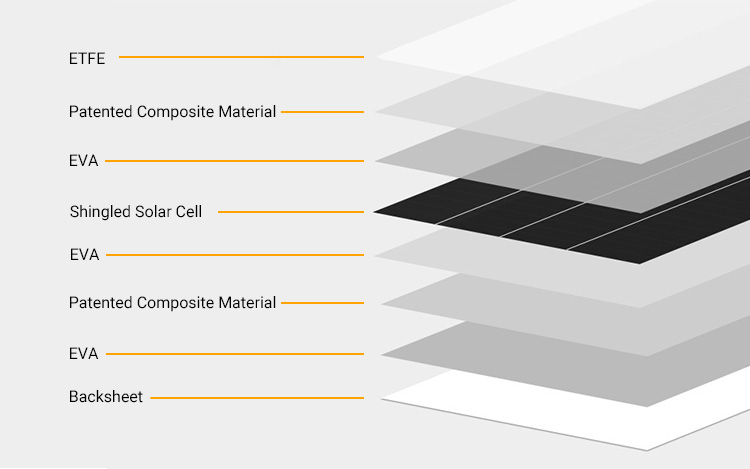

TF-D series are made of Sungold patented

composite material, impact resistant, anti-tramping and waterproof.

Product Specification

Model	SG-TF-D-50W	SG-TF-D-100W	SG-TF-D-150W	SG-TF-D-200W
Maximum Power/Pmax(Wp)	50W	100W	150W	200W
Cell Efficiency	>22%	>22%	>22%	>22%
Number of cells	2*16	2*33	3*33	3*44
Operating Voltage/Vmp(V)	18.20	18.80	18.80	25.10
Operating Current/Imp(A)	2.75	5.32	7.98	7.97
Open Circuit Voltage/Voc(V)	21.50	22.20	22.20	29.60
Short Circuit Current/Isc(A)	2.91	5.64	8.46	8.45
Dimension(mm)	6004702mm	11704702mm	11806802mm	15506802mm
Solar cells	shingled cell	shingled cell	shingled cell	shingled cell
Weight(kg)	0.96	1.65	2.44	3.21
The maximum system voltage	600V DC(IEC)	600V DC(IEC)	600V DC(IEC)	600V DC(IEC)
Output cable	JB (1 bypass diodes) + 900mm/2.5mm² cable+MC4 compatible	JB (1 bypass diodes) + 900mm/4mm² cable+MC4 compatible	JB (2*bypass diodes) + 900mm/4mm² cable+MC4 compatible	JB (2*bypass diodes) + 900mm/4mm² cable+MC4 compatible

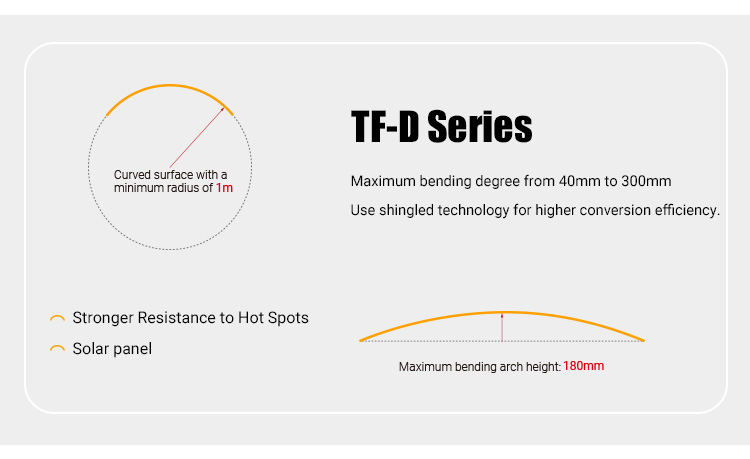

Maximum bending arch height	45mm	180mm	180mm	260mm
Output power tolerance	±3%	±3%	±3%	±3%
Operating Temperature	-40~85℃	-40~85℃	-40~85℃	-40~85℃
Color	Black	Black	Black	Black
Warranty	5 Years	5 Years	5 Years	5 Years
Remark	SUNGOLD offer customize service,please refer to our website or ask SUNGOLD workers for more sizes and the latest parameters.

Product Application

customized logo shingled cell flexible solar panels 50-290W

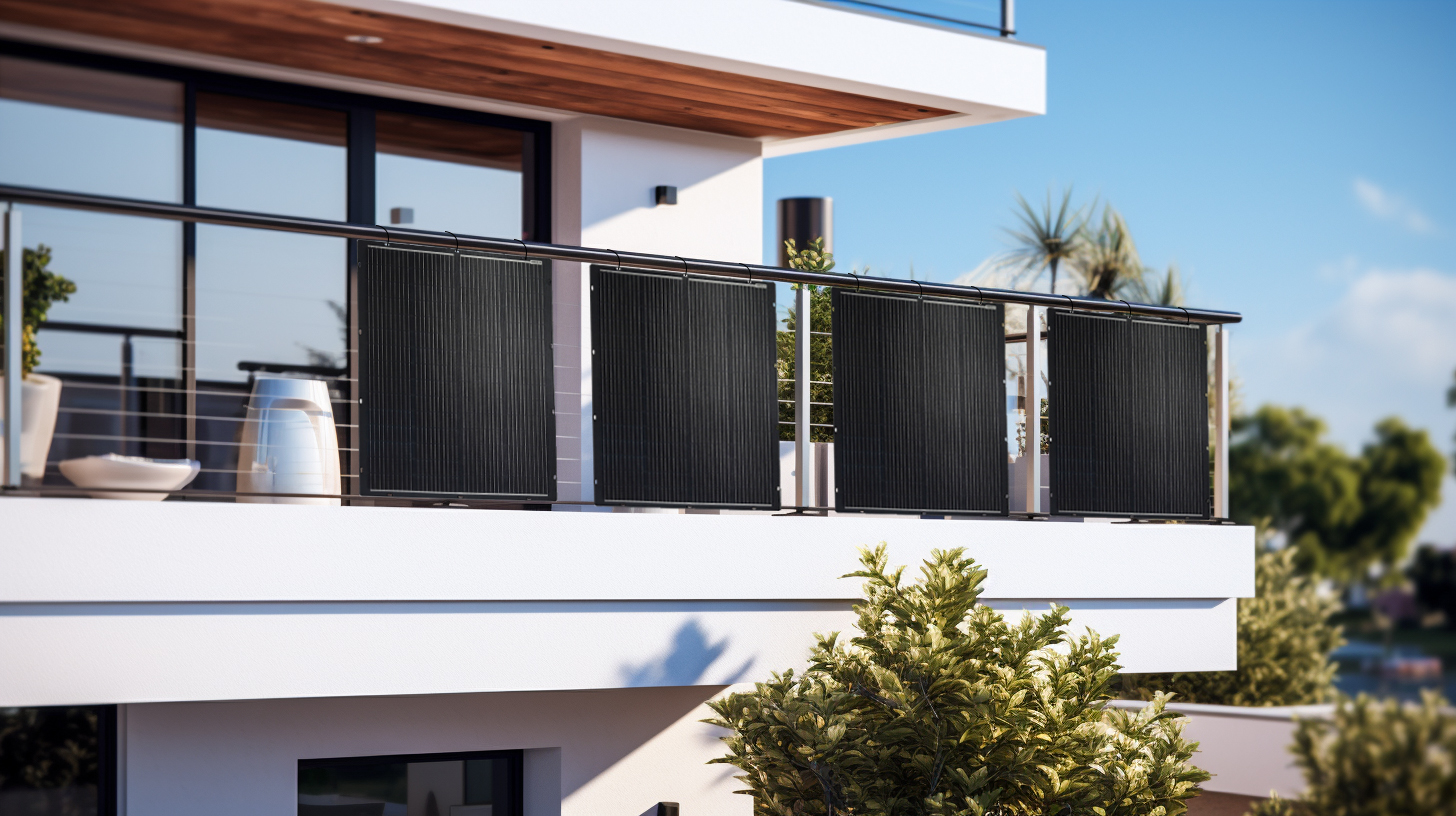

customizable wattage suitable for yachts, caravans, roofs, tents, outdoor camping, balconies

Production Process

Product Packaging

Client Feedback

FAQs

1. Q: Your prices are quite expensive, why? Sungold uses the best quality materials and solar cells on the market, only to achieve the highest power generation efficiency, but also to ensure product quality, so the price may be on the expensive side.

2. Q: What is the scale of your company? Can you be trusted? Sungold has nearly 300 staff, and the company has been certified as an ISO company, so it is trustworthy.

3. Q: Can you provide customized solar panel service? Yes, we support OEM and ODM, we can customize wattage, shape, appearance, logo, etc.

4, Q: Which of your flexible panels do you recommend most? Different series are suitable for different application scenarios, we can recommend them according to your needs.

5. Q: Are your flexible solar panels waterproof?

Yes, they are waterproof. They are made of professional waterproof materials and are certified by professional waterproof testing.

6. Q: Where is your company located? Shenzhen is the most developed city in China for the photovoltaic industry and high technology.

7, Q: Why is your delivery time so long? It depends on the quantity and requirements of your order, we are also trying to ensure the quality of our products while shortening the delivery time.

8. Q: Why is the warranty time of the products different? The warranty period is different because of the different materials and processes used in the products.

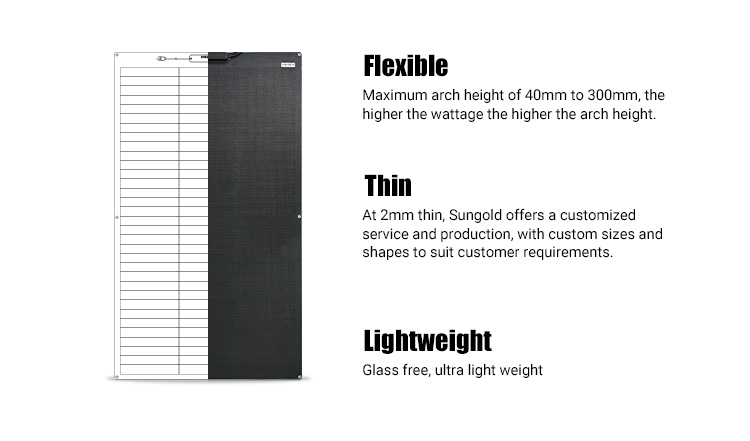

9. What is the maximum bending angle of TF series? Different wattage bending angle is different, the maximum bending arch height from 45mm to 300mm.

10. How is your packaging method? We are generally 1 piece into 1 bubble bag and then into the carton, 10 small cartons into a large carton, also can be customized according to your requirements packaging.

About Sungold

Sungold has advanced production equipment and a mature management system,

and can customize and design high-quality solar panels according to customer needs.

Product innovation is one of Sungold’s most important driving forces.
