Flexible Solar Panel System: OEM/ODM 55W to 270W Mono ETFE Modules

Flexible Solar Panel System: OEM/ODM 55W to 270W Mono ETFE Modules

$55.00

100-499 piece
$52.00

≥500 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	65000000 Watt/Watts per Month
Payment Type:	L/C,Western Union,T/T

Product Description

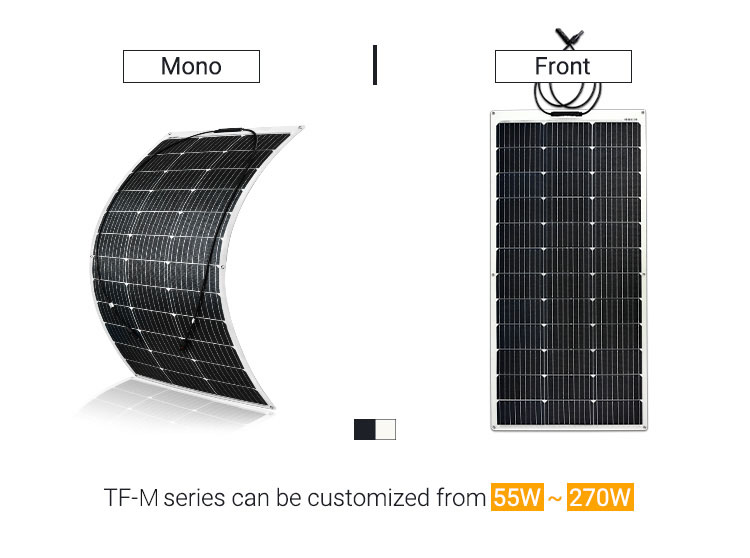

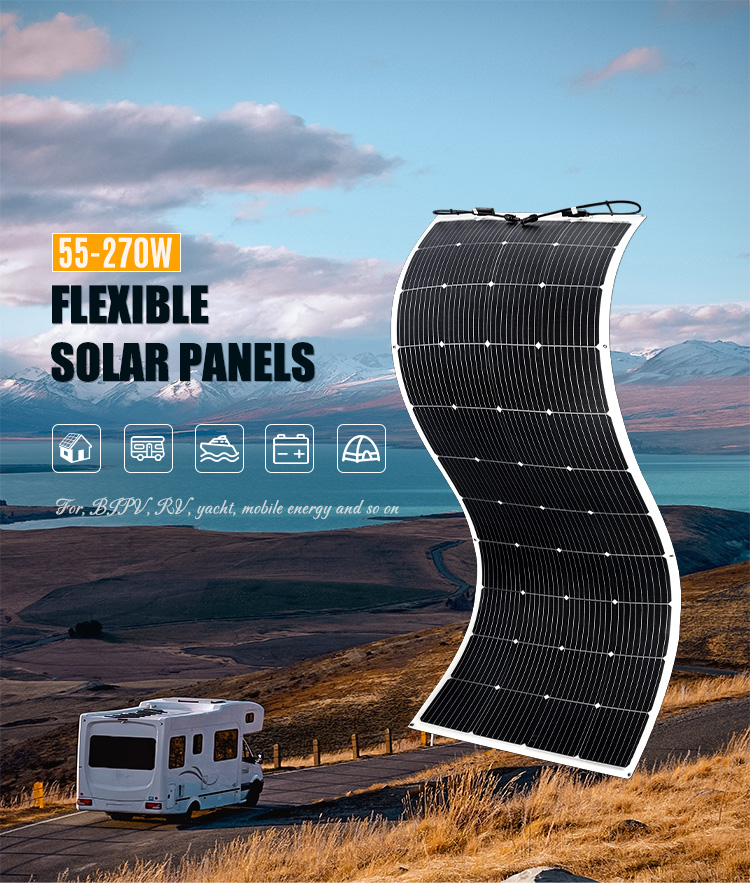

OEM/ODM 55W 70W 110W 150W 200W 270W flexible solar panel Module Mono ETFE solar panel system

Product Feature

TF-M series is an innovative glss-free solar module, adopt Mono

Product Advantage

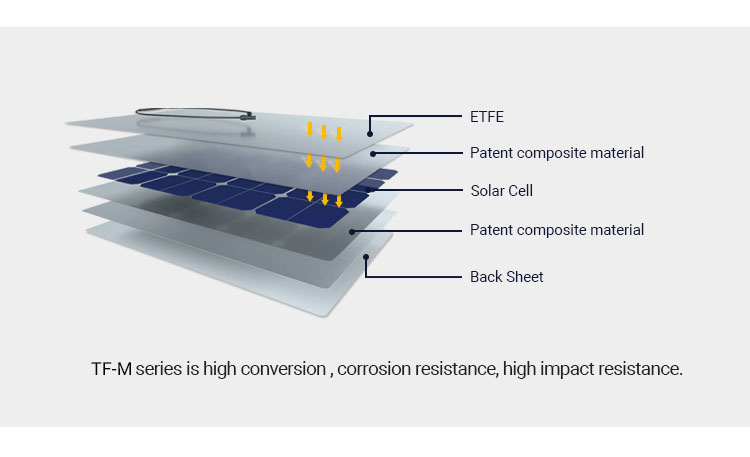

TF-M series use an organic polymer composite to replace the typical glass front sheet as a laminate. The polymer composite material used is extremely durable and capable of withstanding extreme temperatures and climate conditions.

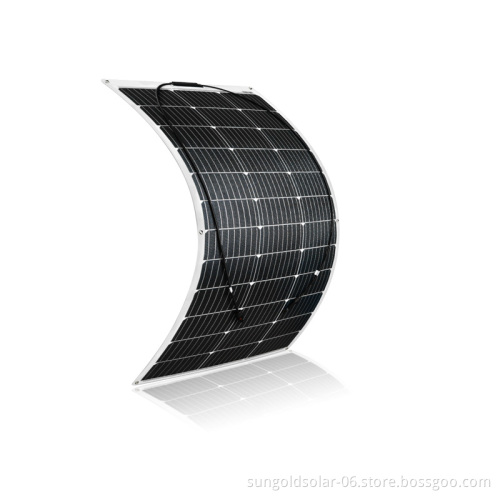

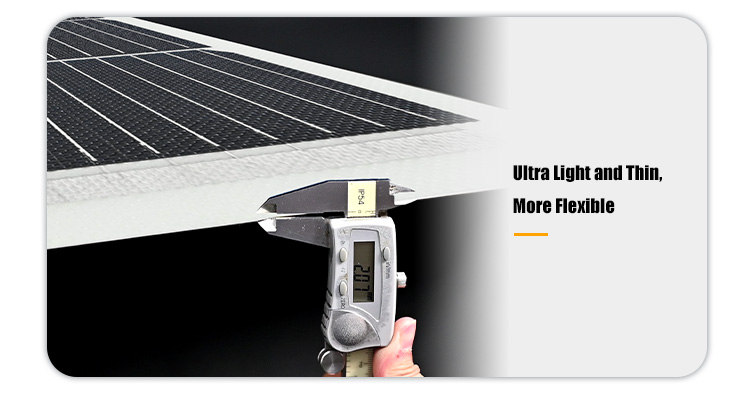

TF-M Series solar panel is only 2mm thick. It uses Sungold’s patented material, which allows the solar panels to bend more while protecting the cells. This solar panel is more flexible and fits many curves, allowing it to conform to a variety of unique shapes.

TF-M series come with a 5-year warranty, which is supported by rigorous trampling and hail resistance tests conducted by the company. These tests have verified the product’s protection and stability, providing confidence in its reliability. Additionally, the product features a newly patented material that has proven highly effective in protecting the battery sheet, further ensuring the product’s durability and longevity.

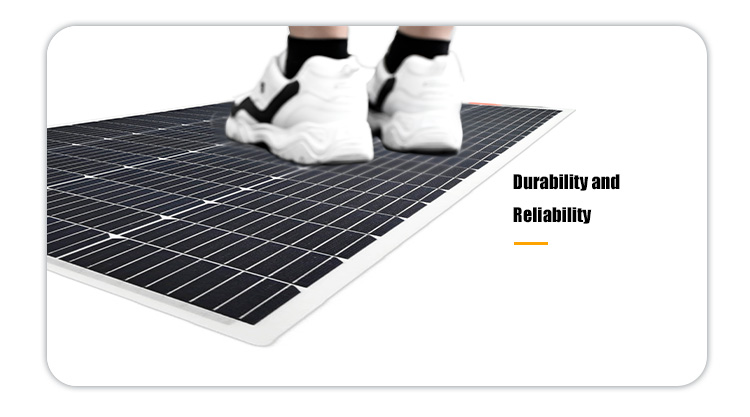

TF-M series has undergone rigorous anti-stepping tests, and the flexible solar panels have performed well when stepped on irregular surfaces, verifying the good flexibility of the TF-M series and its adaptability to various curved environments.

Product Details

Product Specification

Model	SG-TF-M-55W	SG-TF-M-70W	SG-TF-M-110W	SG-TF-M-150W
Maximum Power/Pmax(Wp)	55W	70W	110W	150W
Cell Efficiency	>22.8%	>22.8%	>22.8%	>22.8%
Number of cells	3*12	3*12	3*12	4*18
Operating Voltage/Vmp(V)	20.9	20.9	20.9	20.9
Operating Current/Imp(A)	2.64	3.35	5.27	7.18
Open Circuit Voltage/Voc(V)	24.5	24.5	24.5	24.5
Short Circuit Current/Isc(A)	2.76	3.52	5.53	7.54
Dimension(mm)	5805403mm	7455403mm	10805403mm	11107103mm
Solar cells	mono cell	mono cell	mono cell	mono cell
Weight(kg)	1.36	1.75	2.54	3.43
The maximum system voltage	600V DC(IEC)	600V DC(IEC)	600V DC(IEC)	600V DC(IEC)

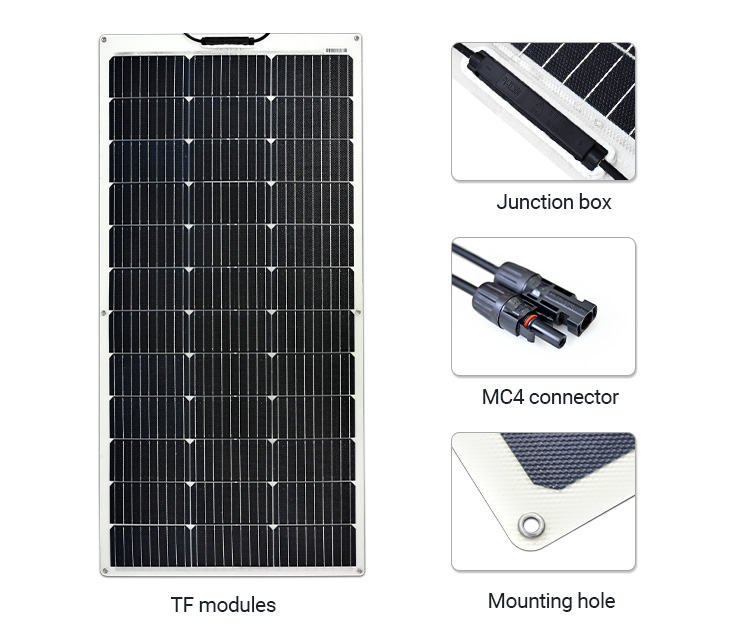

Output cable	JB (1 bypass diodes) + 900mm/2.5mm² cable+MC4 compatible	JB (1 bypass diodes) + 900mm/2.5mm² cable+MC4 compatible	JB (2*bypass diodes) + 900mm/4mm² cable+MC4 compatible	JB (2*bypass diodes) + 900mm/4mm² cable+MC4 compatible

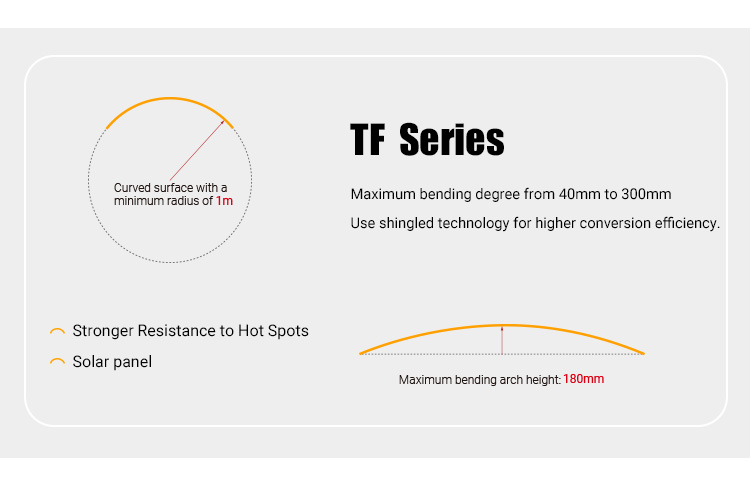

Maximum bending arch height	45mm	70mm	150mm	160mm
Output power tolerance	±3%	±3%	±3%	±3%
Operating Temperature	-40~85℃	-40~85℃	-40~85℃	-40~85℃
Color	black/white	black/white	black/white	black/white
Warranty	6 Years	6 Years	6 Years	6 Years

Product Application

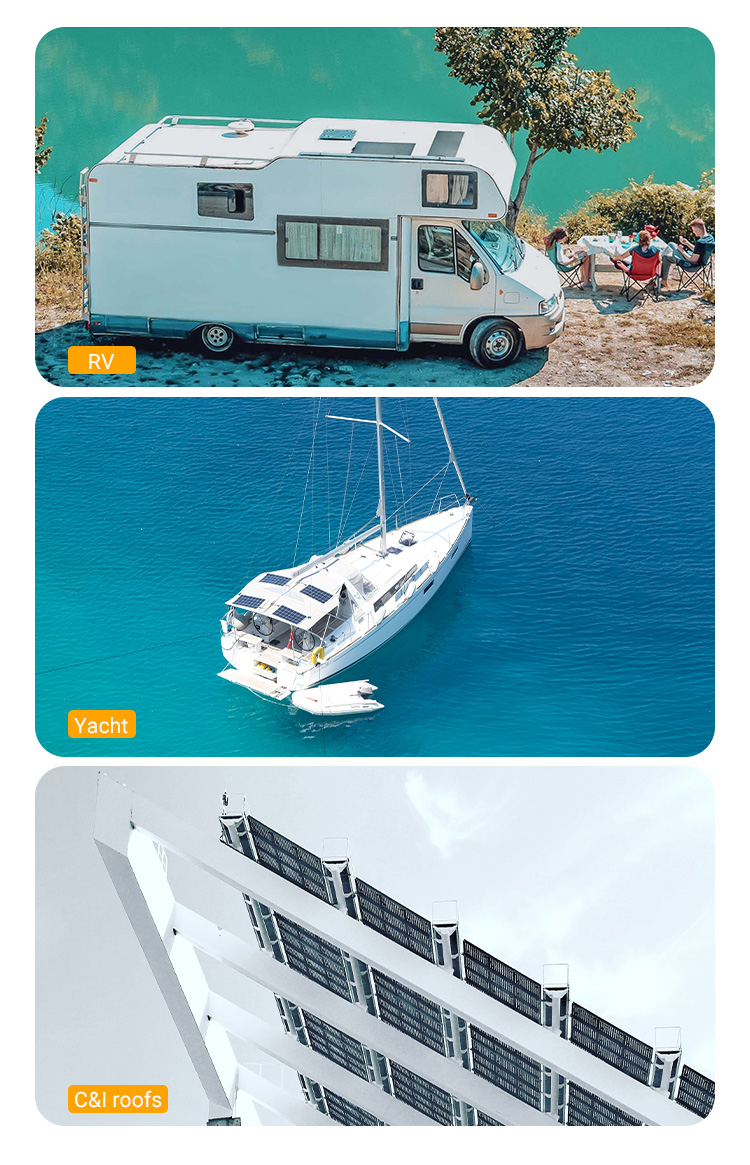

TF-M is suitable for caravans, motorhomes, yachts, PV building integration, commercial roofs.

Production Process

Product Packaging

Client Feedback

FAQs

1.Q：What is this product used for? TF-M is suitable for caravans, motorhomes, yachts, PV building integration, commercial roofs, etc. 2.Q: How long is the warranty of this product? How long is the service life? TF-M is 5 years warranty and 20 years service life. 3.Q: Does this product have any professional certification? Is it reliable? TF-M has passed EMC, LVD and RoHS professional certification, the quality is trustworthy. 4.Q: I want to use it in RV, should it be TF or LEE? For comparison, TF series will be more suitable for RV use and LEE for marine use. 5.Q: What is the maximum and minimum temperature for use? The ambient temperature is -40℃~85℃. 6.Q: Why is the actual efficiency not as high as you give? Our efficiency is obtained under the most ideal power generation environment. The efficiency of solar power generation is affected by various power generation factors: such as the angle of direct sunlight, surface shading, placement position, etc. 7.Q: Do you have a bezel on this product? No, Sungold flexible panels have no bezel design to achieve greater flexibility and bendability. 8.Q: Will the product be damaged if I step on it when I use it? No, TF series has been strictly tested by stepping on it, so you can use it without worry. 9.Q: Is it waterproof, will it affect the use because it is not waterproof? Yes, waterproof, TF series is made of waterproof materials, high waterproof level does not affect the use. 10.Q: Can this product be bent? How much can be bent? Yes, TF series flexible bendable, the maximum bending arch height from 45mm to 360mm.

About Sungold

Sungold has advanced production equipment and a mature management system,

and can customize and design high-quality solar panels according to customer needs.

Product innovation is one of Sungold’s most important driving forces.
