Wholesale ETFE Flexible Solar Panels: 300W to 500W for RVs, Marine, Sunrooms, Rooftops, and Balconies

Wholesale ETFE Flexible Solar Panels: 300W to 500W for RVs, Marine, Sunrooms, Rooftops, and Balconies

$0.35

10-99 piece
$0.30

100-299 piece
$0.29

≥300 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

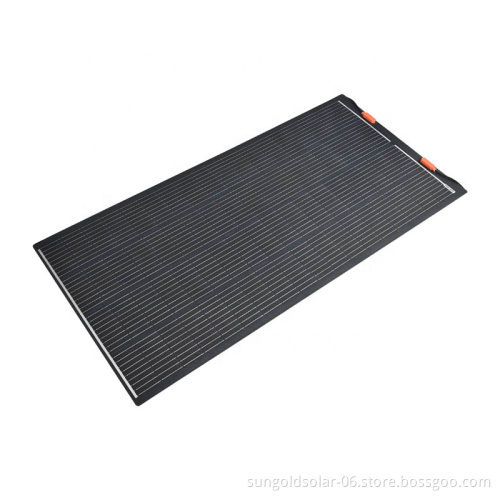

Customized logo flexible solar panels 55-270W customizable wattage. Ideal for outdoor, RV, home, BIPV and other applications

Product Feature

TF-M series is an innovative glss-free solar module, adopt Mono

Product Advantage

TF-M series use an organic polymer composite to replace the typical glass front sheet as a laminate. The polymer composite material used is extremely durable and capable of withstanding extreme temperatures and climate conditions.

TF-M Series solar panel is only 2mm thick. It uses Sungold’s patented material, which allows the solar panels to bend more while protecting the cells. This solar panel is more flexible and fits many curves, allowing it to conform to a variety of unique shapes.

TF-M series come with a 5-year warranty, which is supported by rigorous trampling and hail resistance tests conducted by the company. These tests have verified the product’s protection and stability, providing confidence in its reliability. Additionally, the product features a newly patented material that has proven highly effective in protecting the battery sheet, further ensuring the product’s durability and longevity.

TF-M series has undergone rigorous anti-stepping tests, and the flexible solar panels have performed well when stepped on irregular surfaces, verifying the good flexibility of the TF-M series and its adaptability to various curved environments.

Product Details

Product Specification

Model	SG-TF-M-200W	SG-TF-M-220W	SG-TF-M-245W	SG-TF-M-270W
Maximum Power/Pmax(Wp)	200W	220W	245W	270W
Cell Efficiency	>22.8%	>22.8%	>22.8%	>22.8%
Number of cells	4*16	4*18	4*20	4*22
Operating Voltage/Vmp(V)	18.6	20.9	23.2	25.5
Operating Current/Imp(A)	10.76	10.53	10.57	10.59
Open Circuit Voltage/Voc(V)	21.8	24.5	27.1	29.8
Short Circuit Current/Isc(A)	11.29	11.05	11.09	11.12
Dimension(mm)	14357102mm	16107102mm	17807102mm	19507102mm
Solar cells	mono cell	mono cell	mono cell	mono cell
Weight(kg)	3.63	4.08	4.53	4.96
The maximum system voltage	600V DC(IEC)	600V DC(IEC)	600V DC(IEC)	600V DC(IEC)
Output cable	JB (2*bypass diodes) + 500mm/4mm² cable+MC4 compatible	JB (2*bypass diodes) + 500mm/4mm² cable+MC4 compatible	JB (2*bypass diodes) + 500mm/4mm² cable+MC4 compatible	JB (2*bypass diodes) + 500mm/4mm² cable+MC4 compatible
Maximum bending arch height	240mm	270mm	320mm	360mm
Output power tolerance	±3%	±3%	±3%	±3%
Operating Temperature	-40~85℃	-40~85℃	-40~85℃	-40~85℃
Color	black/white	black/white	black/white	black/white
Warranty	5 Years	5 Years	5 Years	5 Years

Product Application

TF-M is suitable for caravans, motorhomes, yachts, PV building integration, commercial roofs.

Production Process

Product Packaging

Client Feedback

FAQs

1.Q：What is this product used for? TF-M is suitable for caravans, motorhomes, yachts, PV building integration, commercial roofs, etc. 2.Q: How long is the warranty of this product? How long is the service life? TF-M is 5 years warranty and 20 years service life. 3.Q: Does this product have any professional certification? Is it reliable? TF-M has passed EMC, LVD and RoHS professional certification, the quality is trustworthy. 4.Q: I want to use it in RV, should it be TF or LEE? For comparison, TF series will be more suitable for RV use and LEE for marine use. 5.Q: What is the maximum and minimum temperature for use? The ambient temperature is -40℃~85℃. 6.Q: Why is the actual efficiency not as high as you give? Our efficiency is obtained under the most ideal power generation environment. The efficiency of solar power generation is affected by various power generation factors: such as the angle of direct sunlight, surface shading, placement position, etc. 7.Q: Do you have a bezel on this product? No, Sungold flexible panels have no bezel design to achieve greater flexibility and bendability. 8.Q: Will the product be damaged if I step on it when I use it? No, TF series has been strictly tested by stepping on it, so you can use it without worry. 9.Q: Is it waterproof, will it affect the use because it is not waterproof? Yes, waterproof, TF series is made of waterproof materials, high waterproof level does not affect the use. 10.Q: Can this product be bent? How much can be bent? Yes, TF series flexible bendable, the maximum bending arch height from 45mm to 360mm.

About Sungold

Sungold has advanced production equipment and a mature management system,

and can customize and design high-quality solar panels according to customer needs.

Product innovation is one of Sungold’s most important driving forces.
