Customized SUNPOWER Flexible Solar Panels 220W/265W/295W for Off-grid RVs, Marine, Caravans, Yachts, Roofs, Balconies, and Tents

Customized SUNPOWER Flexible Solar Panels 220W/265W/295W for Off-grid RVs, Marine, Caravans, Yachts, Roofs, Balconies, and Tents

$248.00

10-99 piece
$213.00

100-499 piece
$207.00

≥500 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Customized logo flexible solar panels 60-295W customizable wattage. Ideal for outdoor, RV, home, BIPV and other applications

Product Feature

TF-S series is an innovative glss-free solar module, adopt SunPower solar cell,with higher efficiency.

Product Advantage

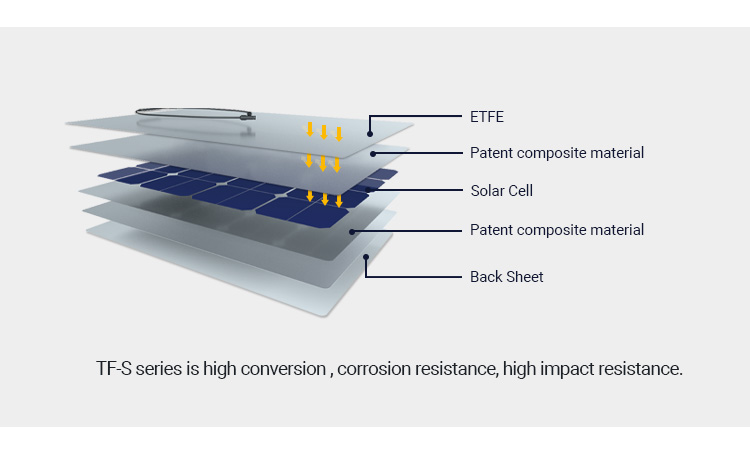

TF-S series use an organic polymer composite to replace the typical glass front sheet as a laminate. The polymer composite material used is extremely durable and capable of withstanding extreme temperatures and climate conditions.

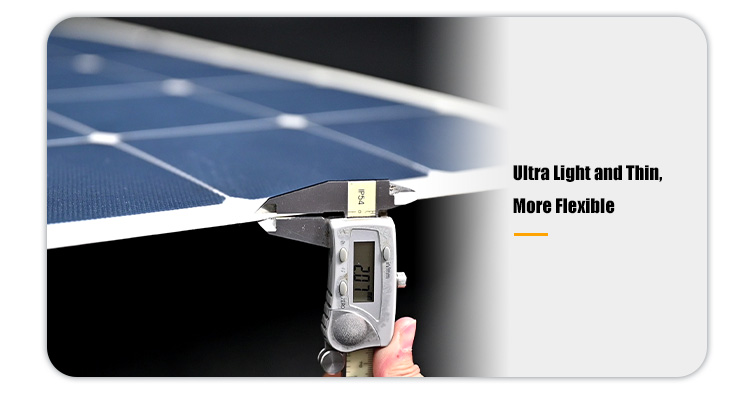

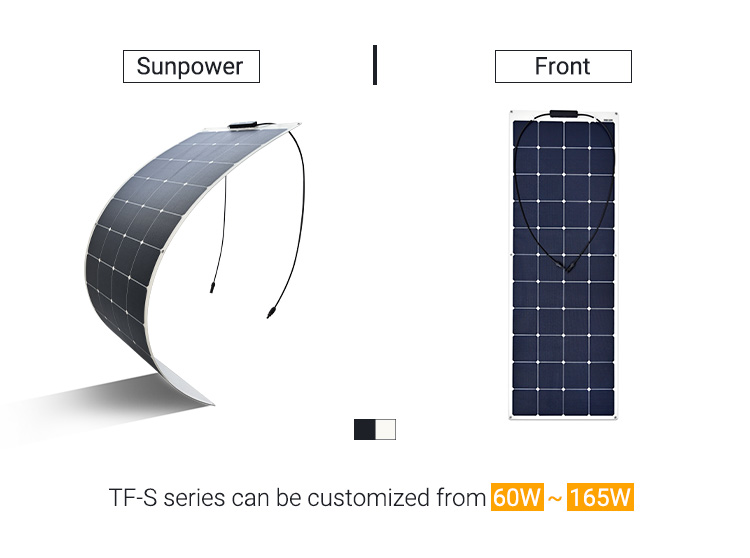

TF-S Series solar panel is only 2mm thick. It uses Sungold’s patented material, which allows the solar panels to bend more while protecting the cells. This solar panel is more flexible and fits many curves, allowing it to conform to a variety of unique shapes.

TF-S series come with a 5-year warranty, which is supported by rigorous trampling and hail resistance tests conducted by the company. These tests have verified the product’s protection and stability, providing confidence in its reliability. Additionally, the product features a newly patented material that has proven highly effective in protecting the battery sheet, further ensuring the product’s durability and longevity.

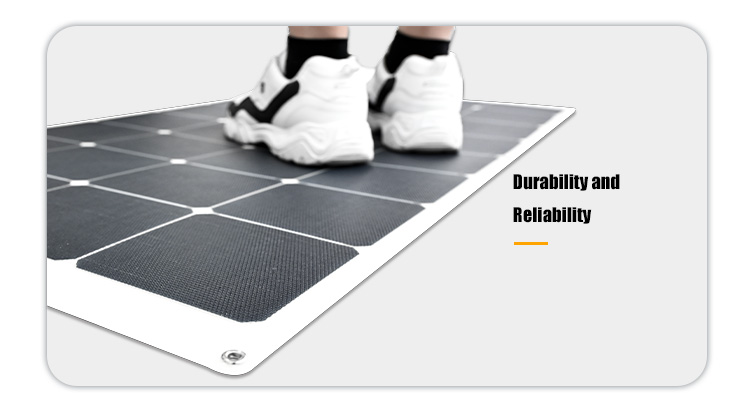

TF-S series has undergone rigorous anti-stepping tests, and the flexible solar panels have performed well when stepped on irregular surfaces, verifying the good flexibility of the TF-S series and its adaptability to various curved environments.

Product Details

Product Specification

Model	SG-TF-S-135W	SG-TF-S-150W	SG-TF-S-165W
Maximum Power/Pmax(Wp)	135W	150W	165W
Cell Efficiency	>24.4%	>24.4%	>24.4%
Number of cells	4*9	4*10	4*11
Operating Voltage/Vmp(V)	22.3	24.8	27.3
Operating Current/Imp(A)	6.06	6.05	6.05
Open Circuit Voltage/Voc(V)	26.2	29.2	32.1
Short Circuit Current/Isc(A)	6.42	6.41	6.41
Dimension(mm)	12005402mm	13305402mm	14605402mm
Solar cells	SunPower cell	SunPower cell	SunPower cell
Weight(kg)	2.33	2.59	2.84
The maximum system voltage	200V DC(IEC)	200V DC(IEC)	200V DC(IEC)

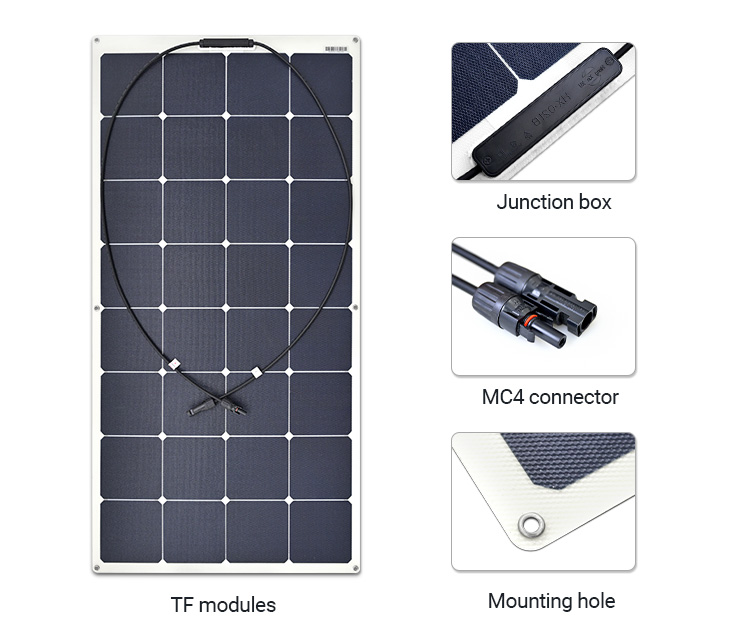

Output cable	JB (2*bypass diodes) + 900mm/4mm² cable+MC4 compatible	JB (2*bypass diodes) + 900mm/4mm² cable+MC4 compatible	JB (2*bypass diodes) + 900mm/4mm² cable+MC4 compatible
Maximum bending arch height	160mm	200mm	240mm
Output power tolerance	±3%	±3%	±3%
Operating Temperature	-40~85℃	-40~85℃	-40~85℃
Color	black/white	black/white	black/white
Warranty	5 Years	5 Years	5 Years

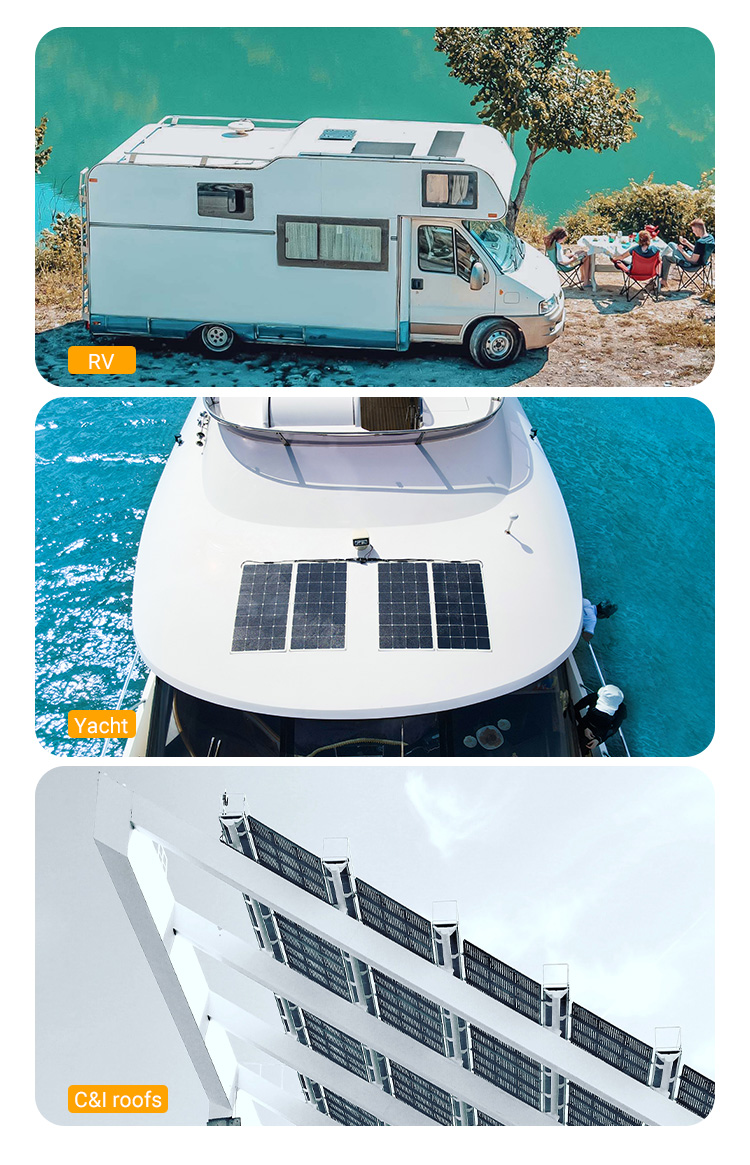

Product Application

customized logo shingled cell flexible solar panels 60~295W customizable wattage suitable for yachts, caravans, roofs, tents, outdoor camping, balconies

Production Process

Product Packaging

Client Feedback

FAQs

1.Q：What is this product used for? TF-S is suitable for caravans, motorhomes, yachts, PV building integration, commercial roofs, etc. 2.Q: How long is the warranty of this product? How long is the service life? TF-S is 5 years warranty and 20 years service life. 3.Q: Does this product have any professional certification? Is it reliable? TF-S has passed EMC, LVD and RoHS professional certification, the quality is trustworthy. 4.Q: I want to use it in RV, should it be TF or LEE? For comparison, TF series will be more suitable for RV use and LEE for marine use. 5.Q: What is the maximum and minimum temperature for use? The ambient temperature is -40℃~85℃. 6.Q: Why is the actual efficiency not as high as you give? Our efficiency is obtained under the most ideal power generation environment. The efficiency of solar power generation is affected by various power generation factors: such as the angle of direct sunlight, surface shading, placement position, etc. 7.Q: Do you have a bezel on this product? No, Sungold flexible panels have no bezel design to achieve greater flexibility and bendability. 8.Q: Will the product be damaged if I step on it when I use it? No, TF series has been strictly tested by stepping on it, so you can use it without worry. 9.Q: Is it waterproof, will it affect the use because it is not waterproof? Yes, waterproof, TF series is made of waterproof materials, high waterproof level does not affect the use. 10.Q: Can this product be bent? How much can be bent? Yes, TF series flexible bendable, the maximum bending arch height from 45mm to 360mm.
