OEM solar panel case --- Factory direct sale

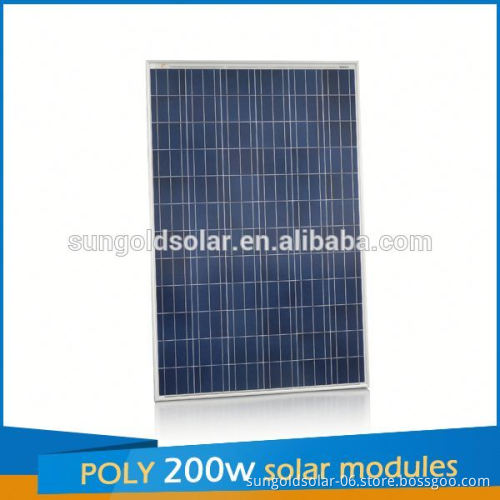

poly solar panel OEM solar panel case --- Factory direct sale
  Features
1.High reliability with guaranteed -3% to +3% power output tolerance, ensuring return on investment
2.High conversion efficiency based on leading innovative photovoltaic technologies
3.Withstands high wind-pressure and snow load, and extreme temperature variations
4.Attractive appearanceUnique frame design, high mechanical strength, and easy Installation

Material
1.Solar cell-conversion efficiency of solar cell: 17.1%
2.Front glass-3.2mm, high transmission, low iron, tempered glass
3.EVA-excellent anti-aging resistance
4.TPT-hot seal made of flame resistance
5.Flame-reinfored anodixed aluminum flame
6.Junction box-Ip54 rated and Ip65 rated, high quality, with diode protection.

Electrical Characteristics
Model	SGP-200w-18V
Solar panel :	200w  poly-crystalline
cell size（mm）	156*135.2
Cells per module:	6*8pcs
Power tolerance:	+/-3%
Module size (mm):	992*1324*40mm
Nominal voltage(V):	23.5
Nominal current (A):	8.51
NOCT:	45+/-2degree
Voltage temperature coefficient:	-0.34%/degree
Current temperature coefficient:	+0.017%/degree
Power temperature coefficient:	-0.46%/degree
Open circuit voltage (Voc):	29.3
Short cirsuit current(Isc):	9.19
Conversion efficiency:	17.10%
Product name :	poly solar panel
Max system voltage:	1000V DC
Surface Maximum Load Capacity	60m/s(200kg/sq. m)

Company Information About Us
Shenzhen Sungold Solar Co., Ltd committed to research and development solar panels. We have professional teams providing high quality solar panels with good service team. Thousands of our PV panels are applied to generate clean energy all over the world .We use top-quality solar cells and EVA , TPT, strengthen glass , seal silicon etc . 6years professional staff team assurance the ISO quality system standard.
Hardware Advantage We introduces the newest production line, testing machine, laser cutting machine , non-Pb soldering line , module testing machine , laminating machine and so on. We use top-quality solar cells and EVA,TPT, strengthen glass, seal silicon etc. Our experienced staff work together well to assurance quality under effective ISO system.
In addition, we adopt a single string tester ,SUNPOWER single test instrument 1: Professional sunpower Solar IV tester, with the international certification of AAA steady state solar simulator and related test accessories, can IV performance solar cells for fast and accurate measurement, classification sorting, etc.
Enterprise Certificate. Our products are exported to Europe ,Americans and other Asian countries with TUV,IEC61215&61730,ISO and CE international standard. Market Advantage Sungold solar have sold solar panel series products to USA, Canada, Germany, United Kingdom, Denmark, Sweden, Poland, Italy, Greece, Australia, New Zealand, Japan, Korea, India, South Africa, and so on.
We are always on the way, never stop….
