Wholesale Sunpower Solar Panels: Rigid, Customizable Wattage (40-165W) for Homes and Businesses

Wholesale Sunpower Solar Panels: Rigid, Customizable Wattage (40-165W) for Homes and Businesses

$94.80

100-499 piece
$92.40

≥500 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Port:: yantian

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	65000000 Watt/Watts per Month
Payment Type:	L/C,Western Union,T/T
Port:	yantian

Product Description

Product Feature

customized logo sunpower solar cell rigid solar panels 40~165W customizable wattage suitable for residential, commercial use, and large off-grid systems.

Product Advantage

High Efficiency Adopt sunpower solar cells for higher conversion efficiency of 24.40% and more beautiful appearance.

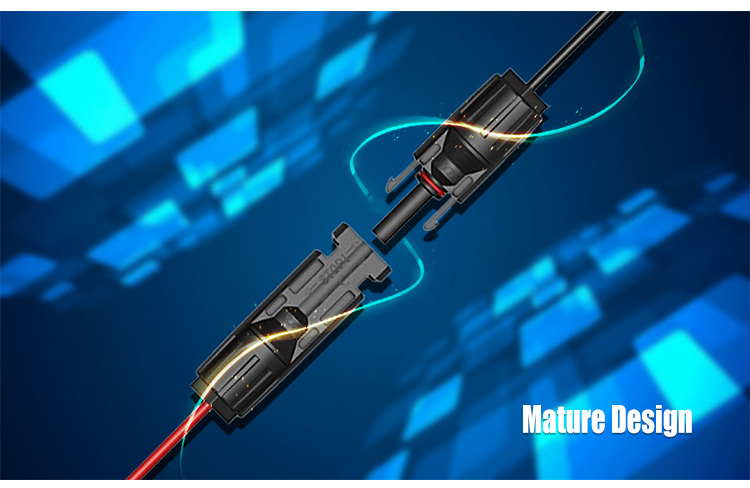

Mature Design Most mature product design, the overall product has been available for many years, has been tested for a long time environment

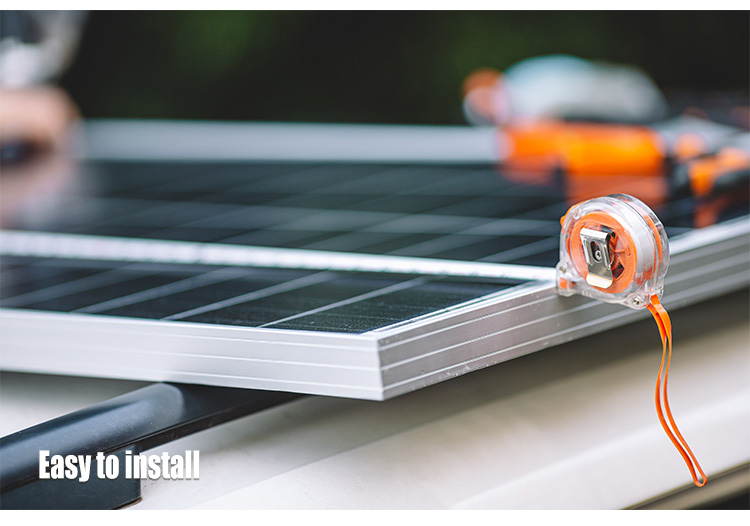

Easy to install Compatible with both grid-tied and off-grid inverters. Pre-drilled holes on the back of the panel allow for quick installation and fastening.

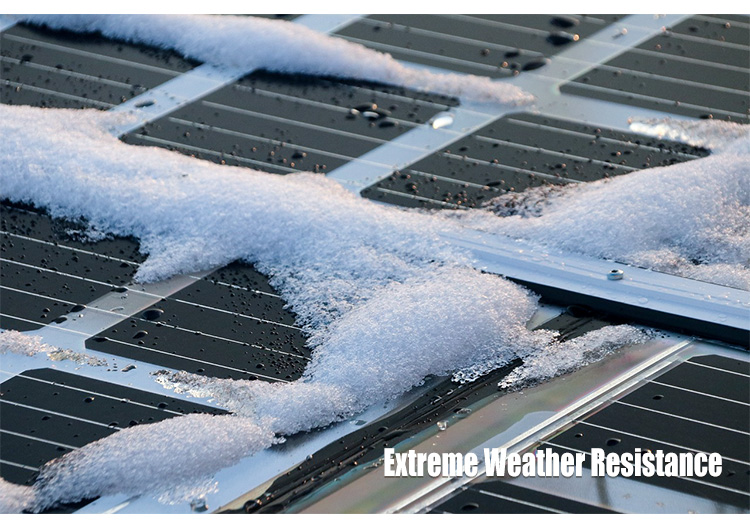

Extreme Weather Resistance Stronger resistance to extreme wind and snow, and can adapt to -10 degrees Celsius weather, are able to withstand a wind pressure of 5400 Pa.

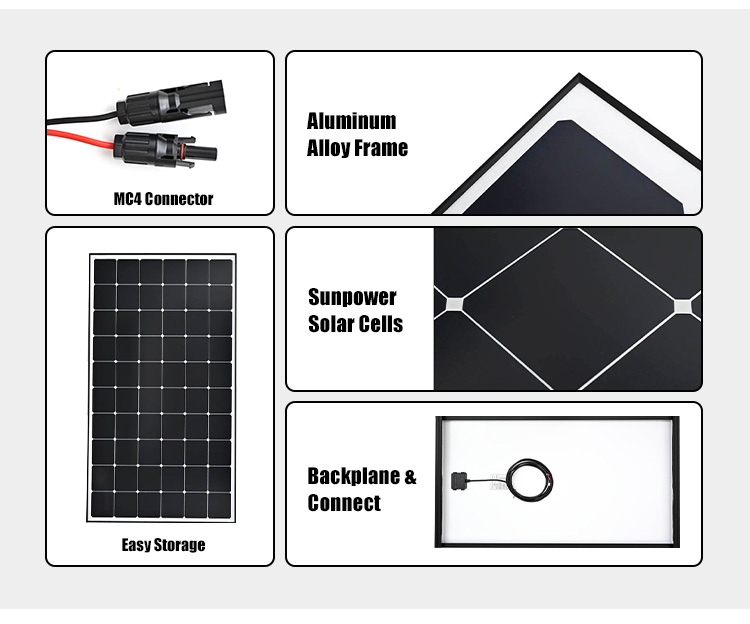

Product Details

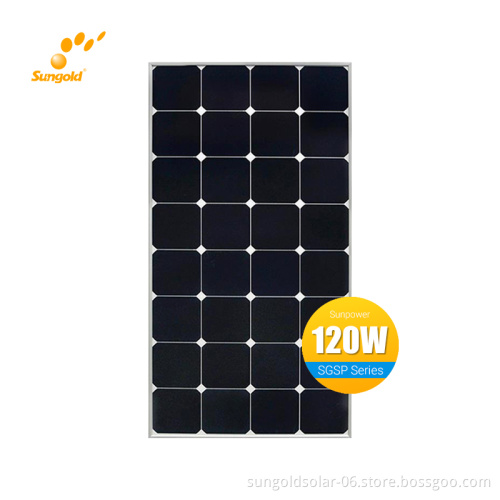

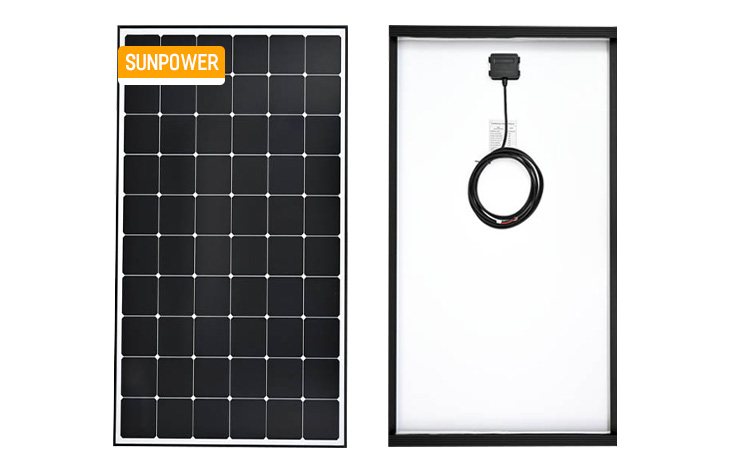

SGM Series Customization wattage from 40w to 165w

Suitable for residential, commercial, and large off-grid systems

Product Specification

Model	SGSP-120W	SGSP-135W	SGSP-150W	SGSP-165W
Maximum Power/Pmax(Wp)	120W	135W	150W	165W
Cell Efficiency	>24.40%	>24.40%	>24.40%	>24.40%
Number of cells	4*8	4*9	4*10	4*11
Operating Voltage/Vmp(V)	19.8V	19.8V	24.8V	27.3V
Operating Current/Imp(A)	6.07A	6.06A	6.05A	6.05A
Open Circuit Voltage/Voc(V)	23.3V	26.2V	29.2V	32.1V
Short Circuit Current/Isc(A)	6.42A	6.42A	6.41A	6.41A
Dimension(mm)	106054035mm	119054035mm	131554035mm	144554035mm
Solar cells	SUNPOWER 3.75W	SUNPOWER 3.75W	SUNPOWER 3.75W	SUNPOWER 3.75W
Weight(kg)	2.52KG	2.76KG	3.41KG	3.76KG
The maximum system voltage	600V DC	600V DC	600V DC	600V DC
Connectors	PV-HX025B PV-XC0806	PV-HX025B PV-XC0806	PV-HX025B PV-XC0806	PV-HX025B PV-XC0806
Output power tolerance	±3%	±3%	±3%	±3%
Operating Temperature	-40~85℃	-40~85℃	-40~85℃	-40~85℃
Color	Black	Black	Black	Black
Warranty	10 Years	10 Years	10 Years	10 Years
Remark	SUNGOLD offer customize service,please refer to our website or ask SUNGOLD workers for more sizes and the latest parameters.

Product Application

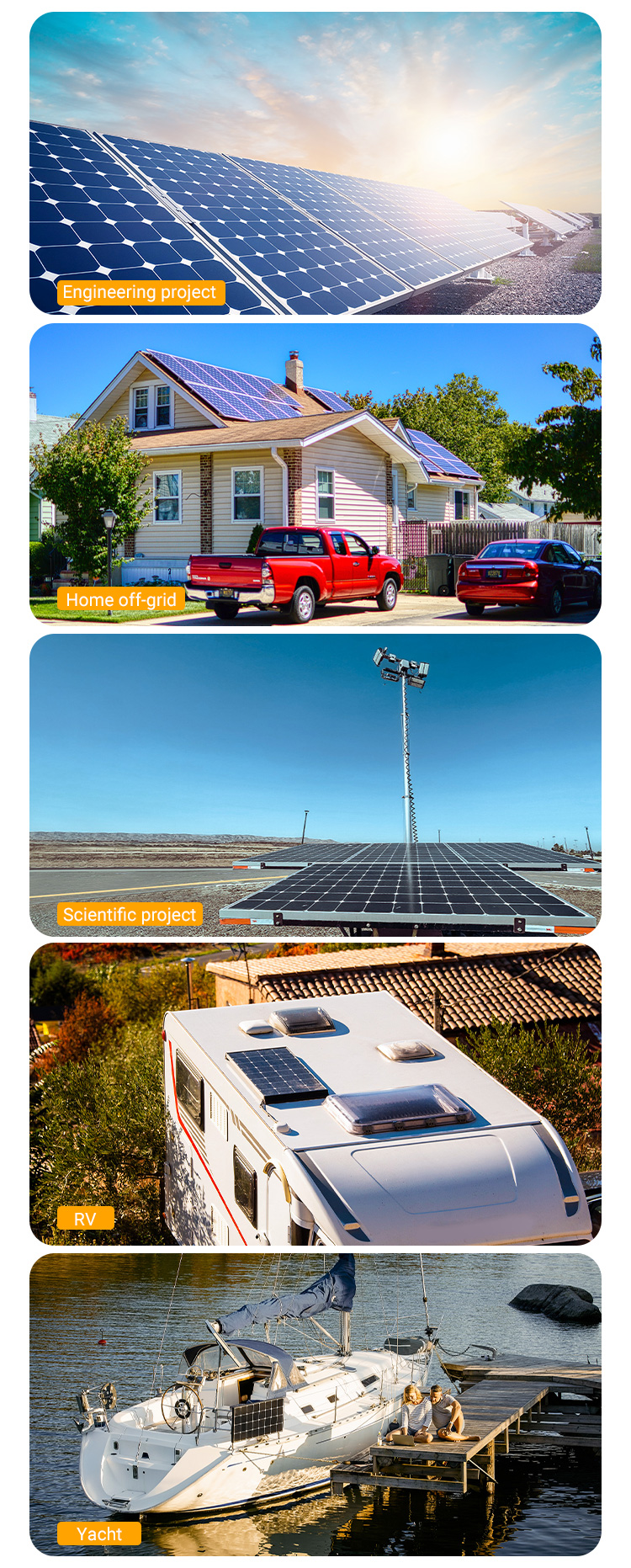

For off-grid home. RV. commercial vehicle. ship. outdoor camping. outdoor emergency

Production Process

Product Packaging

Client Feedback

FAQs

1.Q:SGSP series is suitable for those scenarios? It is suitable for residential, commercial and large off-grid systems, as well as large-scale projects both on- and off-grid. 2.Q:Is SGSP series easy to clean? Yes, because the SGSP series uses glass panels, which can be cleaned by wetting a towel and wiping. 3.Q:Is the weight of SGSP light or heavy in the same type of products? SGSP series products are lighter in weight compared with similar products, which can reduce the installation risk to a certain extent. 4.Q:What material is used for the back panel? There are two kinds of material for SGSP series back panel, white PET and black PET. 5.Q:What is the material of the frame? Will it rust? SGSP series uses aluminum frame, which is not easy to rust, but rusting may still occur in a more humid environment. 6.Q: What is the difference between SGSP solar glass panels and other large wattage solar panels? SGSP solar glass panels are one of the most mature products available. Although the weight of the product is relatively heavy, its stability and more economical use greatly reduces customers' after-sales concerns. 7.Q:Is this panel waterproof Yes. 8.Q:What are the advantages of using Sunpower battery cells? SGSP series adopts Sunpower battery cells, which has higher efficiency and more beautiful appearance. 9.Q:The efficiency of SGSP series is 24.40%, but the actual is not so high, why? Because the efficiency of 24.4% is obtained under the best operating environment, in actual use, it will be affected by weather, temperature, sun height, etc., which is normal. 10.Q:Will this glass panel be fragile? No, it is made of tempered glass, which can protect the solar cell very well.

About Sungold

Sungold has advanced production equipment and a mature management system,

and can customize and design high-quality solar panels according to customer needs.

Product innovation is one of Sungold’s most important driving forces.
