80W Monocrystalline Foldable Glass Solar Suitcase with Kickstand for 12V Batteries - RV & Camping Power

80W Monocrystalline Foldable Glass Solar Suitcase with Kickstand for 12V Batteries - RV & Camping Power

$1.13

10-99 watt
$1.03

100-499 watt
$0.98

≥500 watt

Min. Order:: 1 watt

Min. Order:: 1 watt

Port:: yantian

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	65000000 Watt/Watts per Month
Payment Type:	L/C,Western Union,T/T
Port:	yantian

Product Description

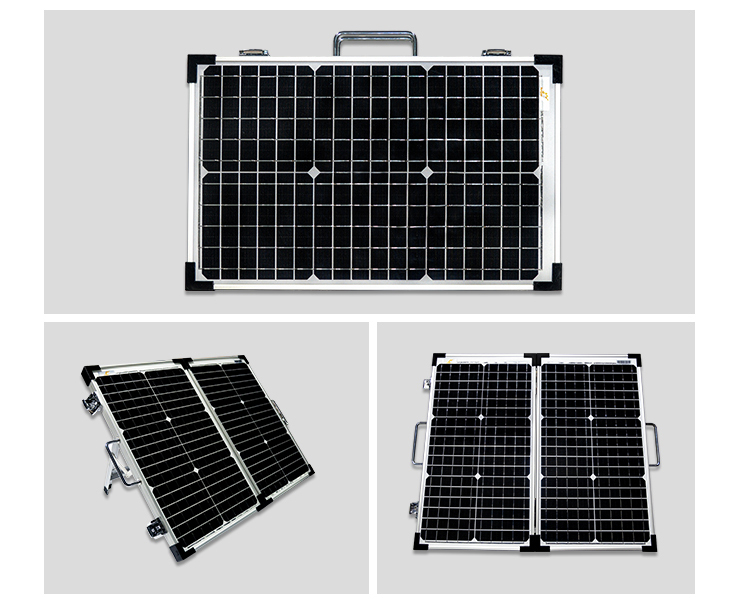

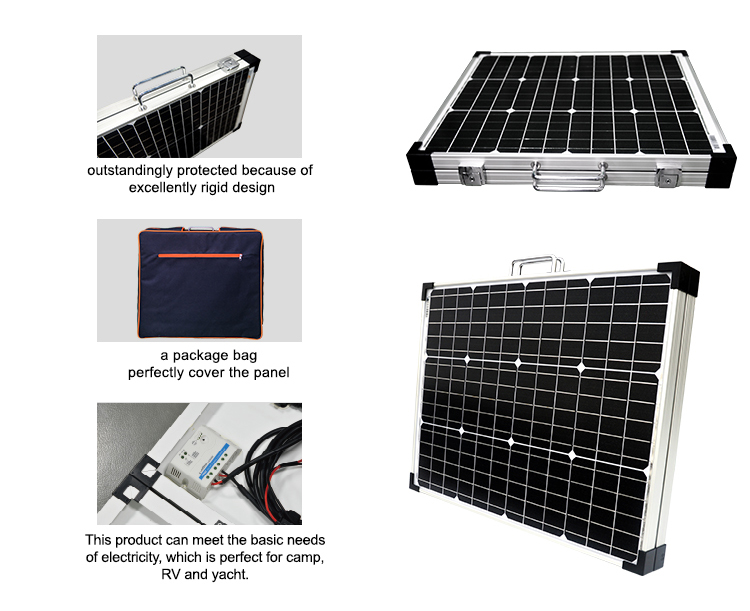

80W Monocrystalline foldable glass Panels Portable Solar Suitcase Foldable with Kickstand 12V Batteries RV Camping Power

Product Parameters

Specifications -LVP series
Component Model	SGF2-60W20V	SGF2-80W20V	SGF2-100W20V	SGF2-130W20V	SGF2-200W20V
Maximum power	60W	80W	100W	130W	200W
Operating voltage(Vmp)	19.8	19.8	19.8	19.8	19.8
Curent(lmp)	3.03	4.04	5.05	6.57	10.1
Open cicuit voltage(Voc)	23.3	23.3	23.3	23.3	23.3
Short-circuit current(Isc)	3.57	4.76	5.94	7.73	11.89
Cells Efficiency(%)	22.40%	22.40%	22.40%	22.40%	22.40%
Operating Temperature(℃):	（-10℃~60℃）
Power temperature coefficient	—0.43%/℃
Voltage temperature coefficient	—0.34%/℃
Current temperature coefficient	0.05%/℃
Output power tolerance	±3%
Cell effciency	20.60%
Life	10 years
Warranty	1 years
Maximnum system voltagea	100V DC
Junction box	IP65 or IP67 rated
Folding size	56036030	66036030	55052030	71052030	78068035
Measured at STC Condition: irradiance: 1000W /m2-AM1.5 Spectrum-Temperature: 25℃
Electrical parameters may vary by ±3%

Product Details

Cases Show

Client Feedback

About Us

Shenzhen Sungold Solar Co., LItd

Sungold Advantages:
-The professional producing experience of solar panel for 13 years
Accumulating the experience for more than a decade,Sungold has become a company with mature technology and management system

-Outstanding quality
With the certificates of ISO, RoHS, CE, etc. We professionally provide high quality products with automated production line.

-Professional techniques and service
Every Sungold product is crafted according to the needs of customer, also, the service we do is all for customer.

Exhibition & Certificate

Logistics Transportation

1)Q:The price is too expensive,why? We choose the best material to make. All SunPower A grade cells are imported from the USA, and we insist on the development of quality. 2)Q:What is the payment term? 100% T/T in advance 30% T/T in advance balance before shipment when your order over 10000usd 3)Q:Why is the delivery time too long? It depends on your quality of order and product type: If you only need a sample, we can send you soon. 4)Q:What is mono and poly panels? The panel adopts mono-crystalline and poly-crystalline cells. 5)Q:What is the different between mono and poly? The cells conversion efficiency is different. The mono cell is higher than poly one. Mono is 20.6%, and poly is 18.3%, so mono panel is more expensive than poly panel. 6)Q: What is the warranty of the panel? Mono panel and poly panel has 10 years warranty. Flexible panel has 1 year warranty and 5 year service time. Customers told a panel was bought in 2012 is still working. 7)Q: What is the package of the flexible panel? 1 pcs is put in a bubble bag and one carton and 10pcs are put in bigger carton, then wooden pallet. 8)Q: How many workers in Sungold? Almost 300. 9)Q: Do you have any certificates on the panels? CE, ROHS and ISO. 10)Q: Can you do OEM for my panels? Yes, we support OEM and ODM.
