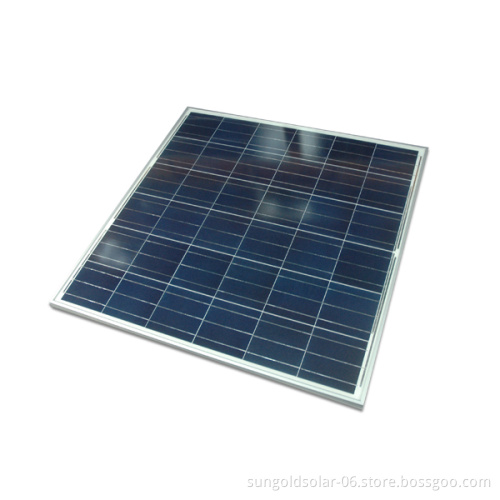

Hot solar panel cell heat strips for high efficiency

Hot solar panel strips for high efficiency Features
High reliability with guaranteed -3% to +5% power output tolerance, ensuring return on investment
High conversion efficiency based on leading innovative photovoltaic technologies
Withstands high wind-pressure and snow load, and extreme temperature variations
Attractive appearance
Unique frame design, high mechanical strength, and easy Installation

Efficiency
Low voltage-temperature coefficient allows higher power output at high-temperature condition
High efficient, high reliable solar cells ensure our product output stability

Electrical Characteristics
Model	SGP-120w
Cells size (mm):	156*133.7
Cells per module:	36pcs
Module size (mm):	670*1270*35cm
Power tolerance:	+/-3%
Nominal peak power(WP):	120w
Nominal voltage(V):	17.5
Nominal current (A):	6.85
NOCT:	45+/-2degree
Voltage temperature coefficient:	-0.33%/degree
Current temperature coefficient:	+0.05%/degree
Power temperature coefficient:	-0.23%/degree
Open circuit voltage (Voc):	21.6
Short cirsuit current(Isc):	7.41
Conversion efficiency:	15.94%
Operating temperature:	-40 to+85degree
Max system voltage:	1000V DC
Surface Maximum Load Capacity	60m/s(200kg/sq. m)
Cell power	3.88w

  Materials
Glass
1. High light transmission no less than 91.6%
2. Excellent mechanical loading performance (5400 PA)
EVA
1. High light transmission
2.High GEL and peeling strength guarantying strong encapsulation
3. Good ultraviolet aging resistance
4. Excellent oxidation resistance
5. TUV certified
Cell
1. Excellent efficiency and long term reliability
2. Good performance under high temperature and low irradiance conditions
3.100% In-line Electroluminescence (EL) tested
4. Positive tolerance for each panel
5. Cell efficiency filling by 0.2 percentage
6. TUV certified
Back sheet
1. TPT based encapsulation and protection
2. Good aging resistance
3. Excellent adhesion and ultraviolet stability
4. TUV certified
Frame
1. Anodized/ Electrophoretic aluminium means durable protection from environment
2. Unique design profile ensuring strong mechanical loading performance
3. Silver/ Black color available
Junction box
1. Climate membrance: Excellent heat dissipation, prevent steam coming from outside and corrosion of diode by inside steam on the condition of big difference in temperature
2. IP65 protection
3. TUV certified
Connector
1. MC4 compatible/ IP65 or MC4 original/ IP67
Quality and Safety 1).120watt solar panel made of Germany manufactured Bosch solar cell. 2).Management Certification: ISO 9001:2008 TUV CE  RoHS  ISO 14001:2004 3).Factory directly supply 4).Perfect quality and long lifespan 5).5-year limited product warranty 6).25-year linear power warranty 7).12 years at 90% of minimal rated power output and 25 years at 85% of minimal rated power output 8).25 years quality warranty      Packaging & Delivery
1. Packaging Detail: 2PCS/CARTON; 504PCS/40'; 520PCS/40'H
2. Delivery Detail: 10-15 days after receiving deposit    Customer Stories&Applications
1. Any large or small on-grid or off-grid solar power stations.
2. Commercial and industrial building roof-top systems
3. Resident systems.
4. Any commercial or industrial ground mounting systems 5. solar television, Solar power, solar heater, solar lights, Highway solar street lamp, solar car / electric vehicles, satellites, spacecraft, space solar power plant, energy saving lamp, the field of environmental protection.    WHY US?
1. We have our own production line of solar cells.
2. Our solar panels are good quality with OEM service.
Our products are backed by an industry standard 5/10/25 warranty to assure the longevitiy of your system. Not only this, we assure the quality of our modules with 100% infrared scanning to go with our standard quality assurance procedures. Depending on the availability by your location, we may also be able to offer liability insurance coverage for our products.     Recently exhibitors

TradeShowName:	Solar Power Internation
Date Attended:	2013 .10
Host Country/Region:	Chicago. US
Introduction:	Solar Power International (SPI) is North America 's premier business-to-business event for professionals in solar energy and related fields.

   FAQ 1. Q: Do you have your own factory?    A: Yes, we have. Our factory located in shenzhen city, guangdong province. 2. Q: How can I visit your factory?
    A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
3. Q: Do you provide free sample?
    A: Usually we do not offer free sample 4. Q: Could you print our company LOGO on the nameplate and package?    A: Yes, we can do that. 5. Q: Do you accept custom design on size?    A: Yes, if the size is reasonable. 6. Q: How do you overcome the anti-dumping and countervailing duties?    A: We can use original Taiwan solar cells, and provide Certificate of Origin of Taiwan. 7. Q: How can I be your agent in my country?    A: Please leave feedback. It's better for us to talk about details by email. 8. Q: Do you have solar project engineer who can guide me to install system?    A: Yes, we have a professional engineer team. They can teach you how to install a solar system.   Our factory can produce solar panel and solar module from 3W-320w (3w,, 5w, 50w,80w,100w,150w,200W.250w.300.320W), according to customers requirement.   ... Save
