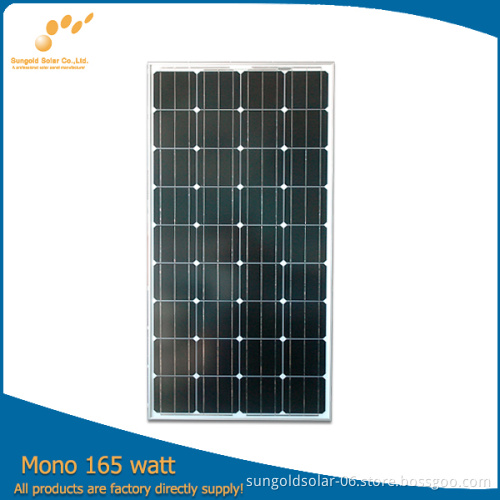

mono solar panel 165w with bosch cells

Specifications Sell solar module/solar panel/solar energy panel,design different size and solar cell array in accord with your specific request

Sell solar module/solar panel/solar energy panel,design different size and solar cell array in accord with your specific request. Electrical Characteristics:

Model						SGM-165W
Cells size (mm):						125*125
Cells per module:						6*12
Module size (mm):						807X1589X45
Power tolerance:						+/-3%
Nominal peak power(WP):						165
Nominal voltage(V):						36
Nominal current (A):						4.58
NOCT:						45+/-2
Voltage temperature coefficient:						-0.33%/
Current temperature coefficient:						+0.05%/
Power temperature coefficient:						-0.23%/
Open circuit voltage (Voc):						43.2
Short cirsuit current(Isc):						4.67
Conversion efficiency:						15.45%
Operating temperature:						-40 to+85
Max system voltage:						1000V DC

1. Solar panel/solar module/PV module/produced with high conversion effeciency, which purchased from Q-CELLS, CONERGY, ERSOL; 2. High quality of TPT, EVA, Tempered glass, aluminum frame to laminate solar panels and waterproof junction box and label; 3. With long lifetime of 25-30years, 5-10years warranty with and stable characterstics and performance; 4. We laminate solar panels from 5w-280w, with mono crystalline and poly crystalline solar cells. 5.We have TUV, ISO 9001/14001, CE, CEC certificate and so on ....
