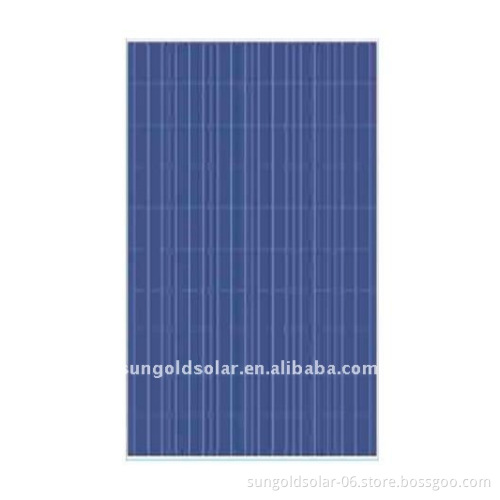

poly solar module RV solar panel with good price 295W
- Delivery Time:
- 12 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | Guangdong, China (Mainland) |
---|
Product Description
Product Description
poly solar module RV solar panel with good price 295w Solarl type: polycrystalline silicone, 156x 156mm 72pcs(6x12)
Cell Efficiency: 15.9%
Peak power: 295Wp
Power Tolerance: -3%to+3%


Maximum power voltage (Vmp): 36V
Maximum power current (Imp): 8.31A
Open circuit voltage (Voc): 43.9V
Short circuit current (Isc): 8.97A
Maximum system voltage: 1000V DCPolycrystalline solar panel SGP295W
Temperature Coefficients:
NOCT (nominal operating cell temperature): 47 °C
Voltage temperature coefficient (Voc): -0.34%/°C
Current temperature coefficient (ISC): +0.09%/°C
Power temperature coefficient (Pmmp): -0.37%/°C Mechanical Characteristics
Dimension(mm):1950x992x40
Weight: 23.2kg
Construction:
Glass:high transmission,low iron, tempered glass 3.2mm
Encapsulation:EVA
Back side:Tedlar,white Qualification Test Parameters
DIelectric Insulation Voltage:3000V DC max
Operating Temperature: -40°Cto+85°C
Max Load 5400 Pa
Hailstone impact 25mm(1 inch) at 23 m/s(52mph)
Recommended Applications
Residential roof top systems
On-grid untility systems
On-grid commercial systems
Off-grid PV systems Warranty
Product:5 years
Power Yield:10 years 90% power warranty and 25 years 80% power warranty ....
Cell Efficiency: 15.9%
Peak power: 295Wp
Power Tolerance: -3%to+3%



Maximum power voltage (Vmp): 36V
Maximum power current (Imp): 8.31A
Open circuit voltage (Voc): 43.9V
Short circuit current (Isc): 8.97A
Maximum system voltage: 1000V DCPolycrystalline solar panel SGP295W
Temperature Coefficients:
NOCT (nominal operating cell temperature): 47 °C
Voltage temperature coefficient (Voc): -0.34%/°C
Current temperature coefficient (ISC): +0.09%/°C
Power temperature coefficient (Pmmp): -0.37%/°C Mechanical Characteristics
Dimension(mm):1950x992x40
Weight: 23.2kg
Construction:
Glass:high transmission,low iron, tempered glass 3.2mm
Encapsulation:EVA
Back side:Tedlar,white Qualification Test Parameters
DIelectric Insulation Voltage:3000V DC max
Operating Temperature: -40°Cto+85°C
Max Load 5400 Pa
Hailstone impact 25mm(1 inch) at 23 m/s(52mph)
Recommended Applications
Residential roof top systems
On-grid untility systems
On-grid commercial systems
Off-grid PV systems Warranty
Product:5 years
Power Yield:10 years 90% power warranty and 25 years 80% power warranty ....
