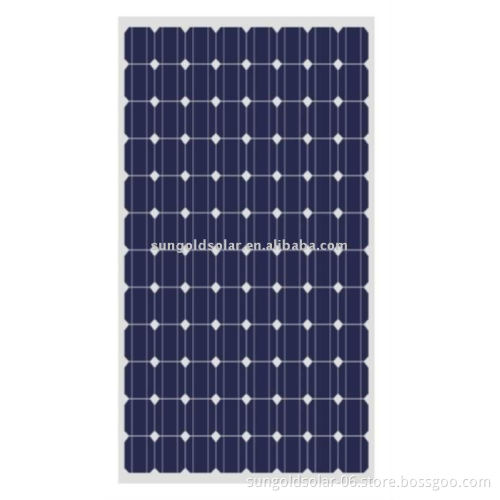

Bosch cells 250W Mono Solar Panel

Specifications Bosch cells 250W Mono Solar Panel

1.5yr Quality Warranty

2.CE Certification

3.High efficency Solar Cell 17%

  250W Monocrystalline Solar Panel Bosch cells 250W Mono Solar Panel
Major Features
a) High-efficient solar cells ensure high performance and more power under same condition.
b) High reliability with guaranteed +3% output power tolerance;
c) 3.2mm high-transparent low-iron toughened glass, EVA laminate and water-proof TPT yield long life modules while enhancing cell performance.
d) Stable, heavy duty anodized aluminum frames with convenient mounting-access, for high wind pressure and snow load.
e) Bypass diodes to avoid hot-spot effect.
f) The backside of frames is equipped with drainage holes in order to eliminate the risk that rain or snow water may accumulate in the frame through and freeze or even bend the frame in cold season.
g) Comply with IEC61215 and IEC 61730 standard.
h) Produced under systemic quality control covering all processes and factors.

Performance Assurance
1) 3 years warranty for PV module, materials and corresponding fittings;
2) 90% output of rated power after 10 years;
3) 80% output of rated power after 25 years under Standard Test Conditions;

Other Products and OEM
Our related products: solar panel system, solar street light, solar lamn lamp, solar yard light. Please visit our company page for more on info. We offer OEM service too, contact us for further info.

250W mono solar panel

Max-power:250W
Power-tolerance:+/-3%
Max-power Voltage:30.7V
Max-power Current:8.15A
Open-circuit Voltage:36.8V
Open-circuit Current:8.87A
Max-System Voltage:1000VDC
Cell efficiency:17.45%
Module efficiency:15.29%
Cell size:156mm*156mm
No. of cells:60pcs(6*10)
Dimension:1650mm*992mm*50mm
No.of Bypass diodes:3
Type of connector:Compatible Type3 or 4
Glass:Tempered Glass 3.2mm ....
