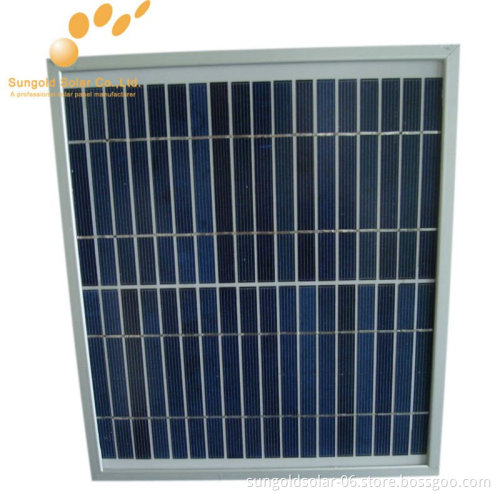

10w solar panel polycrystalline solar cells for toys

Specifications 10w solar panel polycrystalline solar cells for toys

1.15.9% high efficiency

2.25 years warranty

3.mono/poly

10w solar panel polycrystalline solar cells for toys polycrystalline solar cells for sale
1.20% high efficiency
2.25 years warranty
3.mono/poly    Features
High reliability with guaranteed -3% to +5% power output tolerance, ensuring return on investment
High conversion efficiency based on leading innovative photovoltaic technologies
Withstands high wind-pressure and snow load, and extreme temperature variations
Attractive appearance
Unique frame design, high mechanical strength, and easy Installation   Efficiency
Low voltage-temperature coefficient allows higher power output at high-temperature condition
High efficient, high reliable solar cells ensure our product output stability

Materials
Glass
1. High light transmission no less than 91.6%
2. Excellent mechanical loading performance (5400 PA)
EVA
1. High light transmission
2.High GEL and peeling strength guarantying strong encapsulation
3. Good ultraviolet aging resistance
4. Excellent oxidation resistance
5. TUV certified
Cell
1. Excellent efficiency and long term reliability
2. Good performance under high temperature and low irradiance conditions
3.100% In-line Electroluminescence (EL) tested
4. Positive tolerance for each panel
5. Cell efficiency filling by 0.2 percentage
6. TUV certified   Quality and Safety
1. Rigorous quality control meeting the highest international standards
2.25-year power output transferable warranty
3. Have TUV, IEC, CE, ISO9001/14004 and RoHS certificates

Main Export Markets:
1. Central/South America
2. Eastern Europe
3.MID East/Africa
4. North America
5. Western Europe

    Product parameters

Electrical Characteristics
Model	SGM-10W-18v
Cells size (mm):	156*13.7
Cells per module:	36pcs(2*18)
Module size (mm):	345*320*18mm
Power tolerance:	+/-3%
Nominal peak power(WP):	10w
Nominal voltage(V):	17.5
Nominal current (A):	0.57
NOCT:	45+/-2degree
Voltage temperature coefficient:	-0.33%/degree
Current temperature coefficient:	+0.05%/degree
Power temperature coefficient:	-0.23%/degree
Open circuit voltage (Voc):	21.6
Short cirsuit current(Isc):	0.62
Conversion efficiency:	15.94%
Operating temperature:	-40 to+85degree
Max system voltage:	1000V DC
Surface Maximum Load Capacity	60m/s(200kg/sq. m)

        The Sungold Solar Advantage
Our products are backed by an industry standard 5/10/25 warranty to assure the longevitiy of your system. Not only this, we assure the quality of our modules with 100% infrared scanning to go with our standard quality assurance procedures. Depending on the availability by your location, we may also be able to offer liability insurance coverage for our products.
When you're ready to go green, give us a call, or contact us via our inquiry form!   polycrystalline solar cells for sale
1.20% high efficiency
2.25 years warranty
3.mono/poly ....
