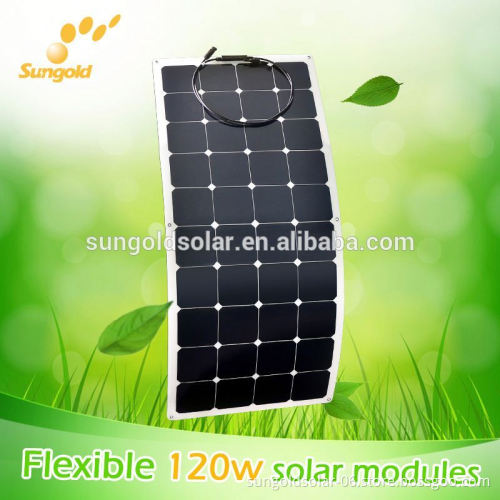

2016 Customer design 12v flexible solar panel kits

Semi Flexible solar panel made in China with A-grade solarworld cells Product Description  1.Flexible solar panel are designed to provide a powerful charging solution for batteries and conform to almost any surface. Unlike other ‘flexible’ products, these use high-efficiency monocrystalline cells that produce more power per square foot than any other flexible panel on the market.
2.An impermeable lamination coats the entire module, allowing it to contour and flex against curved areas, eliminating any need for custom mounts.
3.The panel can be affixed by adhesive or screw mounting options and grommets are an added bonus for ease-of-installation. The thin, lightweight module can also be sewn into canvas, making it a truly versatile solar module.
4.The Solar Flex panels are aerodynamic and DURABLE - a virtually unbreakable solar battery charger for RVs, boats and long-haul trucks.

Electrical Characteristics
Model	SGM-FL-120W
Cells size (mm):	125*125
Cells per module:	4*9
Module size (mm):	1325x560x3mm
Power tolerance:	+/-3%
Nominal peak power(WP):	120w
Nominal voltage(V):	22
Nominal current (A):	5.45
NOCT:	45+/-2degree
Voltage temperature coefficient:	-0.33%/degree
Current temperature coefficient:	+0.05%/degree
Power temperature coefficient:	-0.23%/degree
Open circuit voltage (Voc):	26
Short cirsuit current(Isc):	5.89
Conversion efficiency:	19.62%
Product name :	flexible solar panel
Max system voltage:	1000V DC
Surface Maximum Load Capacity	60m/s(200kg/sq. m)
