Lightweight Portable Solar Suitcase Kit - Custom 100W to 300W Folding Solar Panels for Battery Power Station

Lightweight Portable Solar Suitcase Kit - Custom 100W to 300W Folding Solar Panels for Battery Power Station

$214.11

2-99 piece
$175.50

100-299 piece
$167.40

≥300 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,Western Union,T/T

Product Description

Product Feature

Customized logo monocrystalline lightweight folding solar panel 130W 180W 270W customizable wattage

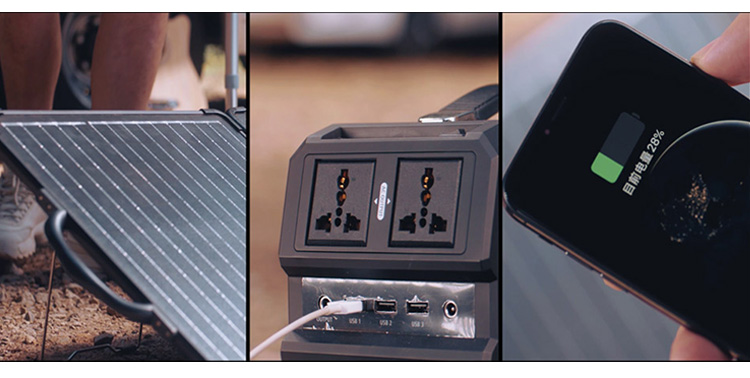

Power your cell phone, laptop, fan, and other electronics

Product Advantage

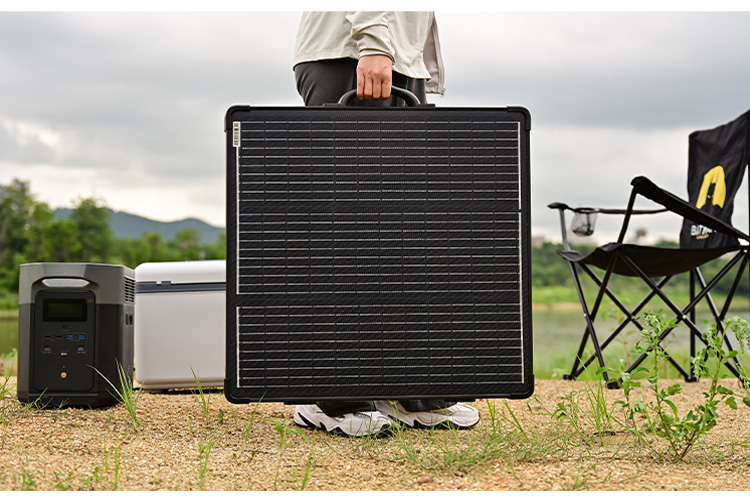

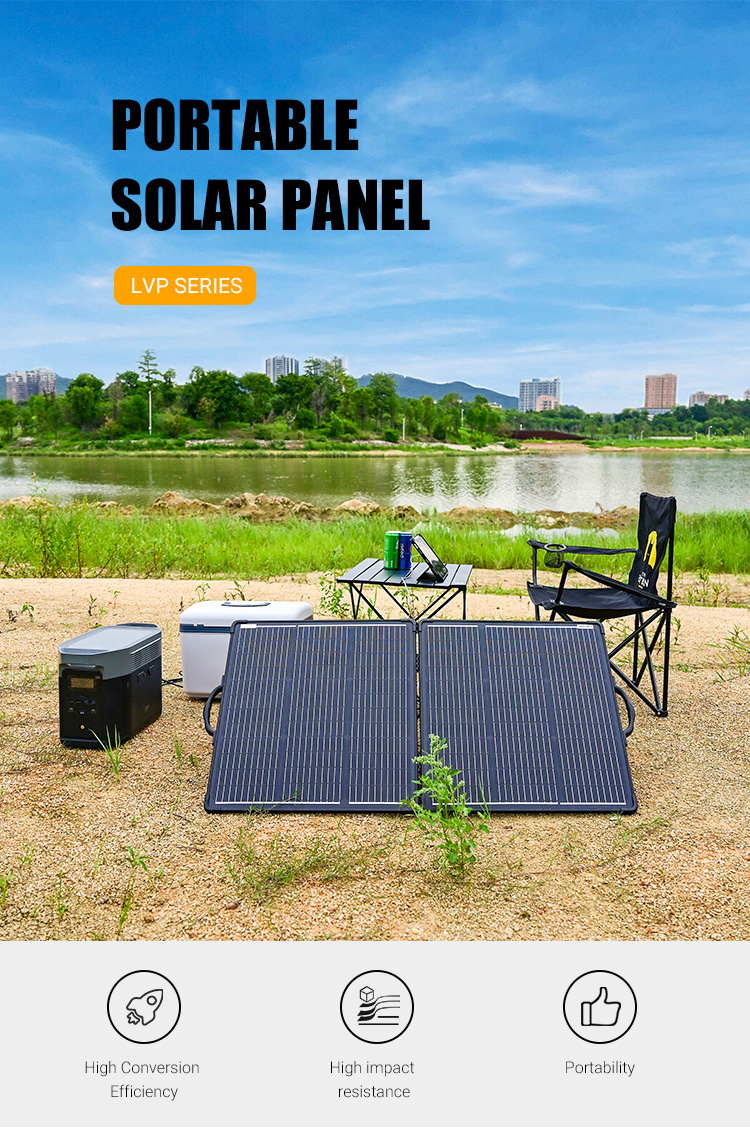

Portable and foldable Sungold LVP Series folding solar panels are lightweight, 50% of the weight of traditional solar panels. The overall design does not use glass, which greatly reduces the weight of the product. Supported by a black PET backing for better quality.

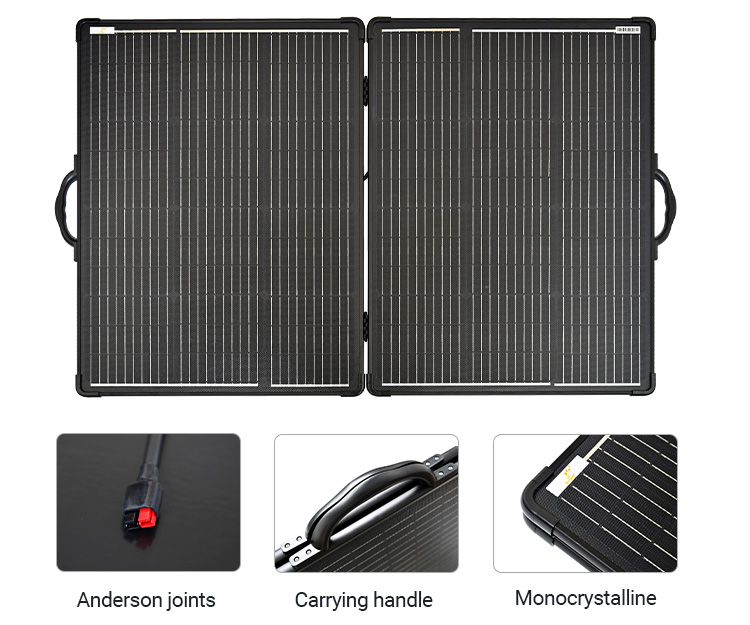

ETFE surface material ETFE laminated outer film has strong anti-UV and anti-aging properties. The aluminum alloy frame protects the solar panel from damage. The solar panel is also designed with an anti-aging material handle and a corrosion-resistant metal bracket.

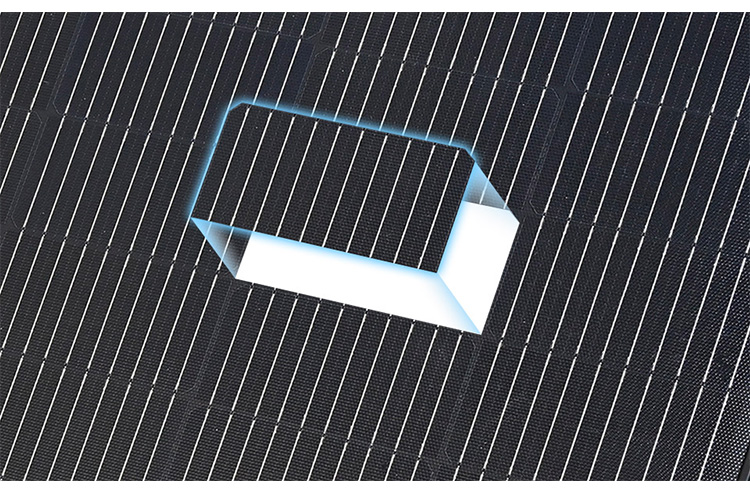

High conversion rate Sungold LVP series folding solar panels are manufactured with high-efficiency monocrystalline solar cells. No need to worry even on cloudy days, they can provide up to 20-30% of rated power.

Professional certification Passed ROHS and CE certifications, meet the safety requirements stipulated by EU directives

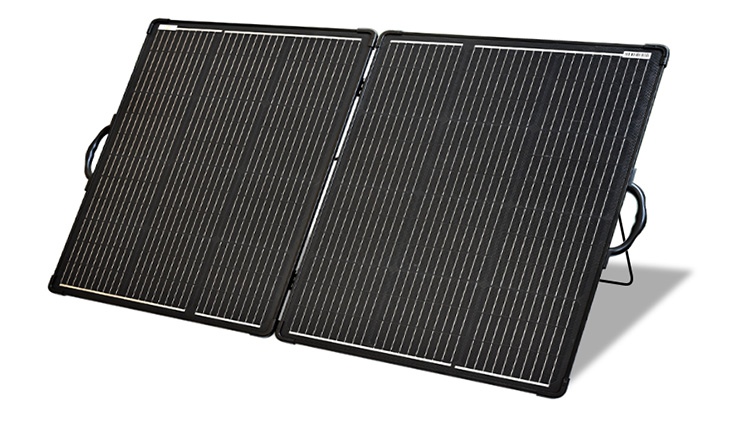

Product Details

Product Specification

Model	LVP2 130W A	LVP2 180W A	LVP2 270W A
Maximum Power/Pmax(Wp)	130W	180W	270W
Cell Efficiency	>22.70%	>22.70%	>22.70%
Number of cells	2312	2314	249
Operating Voltage/Vmp(V)	20.50	20.50	20.50
Operating Current/Imp(A)	6.35	8.79	13.18
Open Circuit Voltage/Voc(V)	24.00	24.00	24.00
Short Circuit Current/Isc(A)	6.66	9.22	13.83
Folded Size(mm)	63559550mm	82059550mm	90078050mm
Expand Size(mm)	119363525mm	119382025mm	156390025mm
Weight	6.40kg(14.11lbs)	8.30kg(18.30lbs0	11.50kg(25.35lbs)
The maximum system voltage	100V DC(IEC)	100V DC(IEC)	100V DC(IEC)
Surface material	ETFE	ETFE	ETFE
Output power tolerance	±3%	±3%	±3%
Color	Black	Black	Black
Warranty	1 Year	1 Year	1 Year
Remark	SUNGOLD offer customize service,please refer to our website or ask SUNGOLD workers for more sizes and the latest parameters.

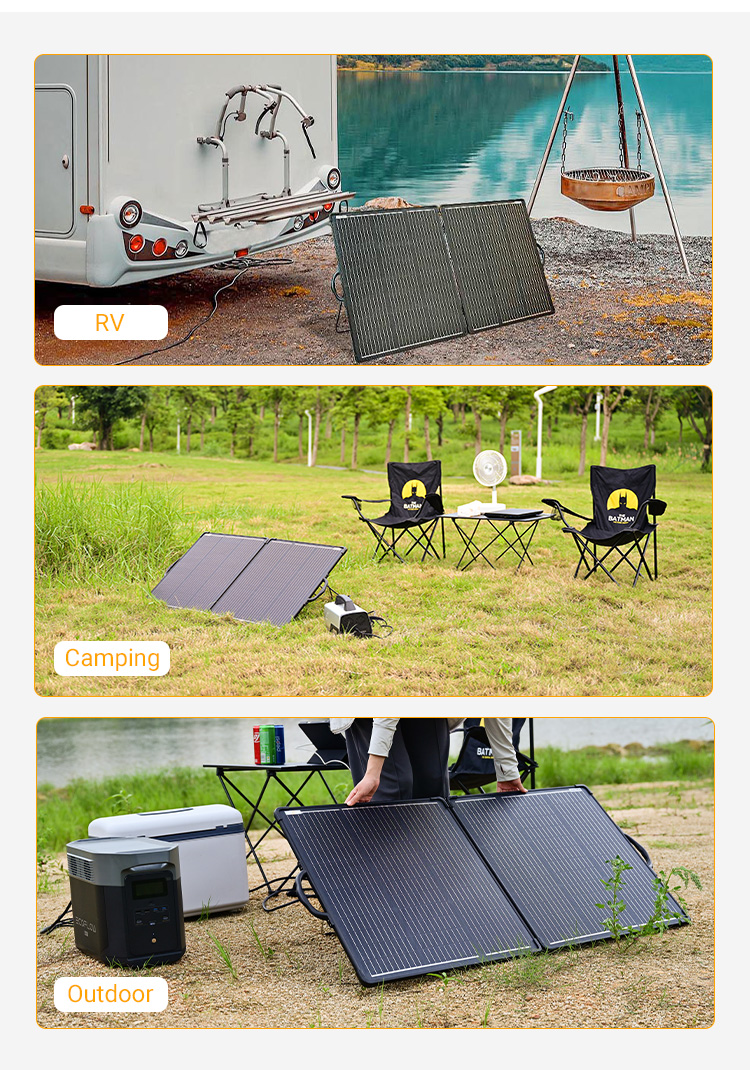

Product Application

Production Process

Product Packaging

Client Feedback

FAQs

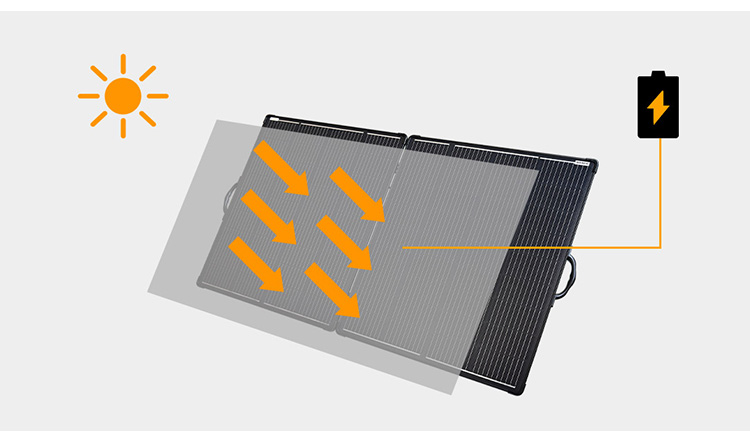

1.Q：Can the LVP series be used as a reserve power supply? It can be used with energy storage as a reserve power source. 2.Q：Where can I use this type of folding solar panel? The LVP series can be used for most basic electrical loads if you are going RV camping, picnicking, or even an unexpected power outage. It can also be your reliable backup power source when you need electricity in special situations. 3.Q: How can I generate more electricity? The greater the angle of the solar panel to the sun, the more power it can get. Therefore, place the solar panel in an open area and avoid shade. 4.Q: What is the warranty period for LVP series solar panels? 1 year warranty. 10 years for LE series flexible solar panels. 5.Q: Are the LVP series solar panels durable? Absolutely. Anti-aging material handle, anti-corrosion metal bracket, using ETFE as the surface outer film. Ensure the products have good corrosion resistance and anti-aging ability. 6.Q: What is the waterproof rating of LVP series solar panels? With the waterproof rating of IP65, the whole product will not be affected if it is rained on or splashed by water when it is working. All you need to do is to wipe off the water droplets on the surface. 7.Q: What are the wiring specifications? The wiring configuration is separate from the plug connection. We have designed two sizes, alligator clips or small Anderson connectors. Both connectors cover all your basic usage scenarios. 8.Q: Is it easy enough to fold and store the LVP series? Yes, the LVP folding solar panel is easy to use and easy to store, which is perfect for writing to take to outdoor use. 9.Q: the actual use of power is 22.70%? In actual use to collect the weather, shade, sun height and other factors, the actual use of power will have some loss. 10.Q: How about the weight of this? Will it be heavy? Because of the portable design, the weight of LVP is moderate and convenient to carry.

About Sungold

Sungold has advanced production equipment and a mature management system,

and can customize and design high-quality solar panels according to customer needs.

Product innovation is one of Sungold’s most important driving forces.
