Sungold Wholesale Customizable Double-Sided ETFE Solar Panels - 60-270W for Outdoor, Yachts, and RVs

Sungold Wholesale Customizable Double-Sided ETFE Solar Panels - 60-270W for Outdoor, Yachts, and RVs

$77.00

50-99 piece
$75.00

≥100 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Port:: yantian

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	65000000 Watt/Watts per Month
Payment Type:	L/C,Western Union,T/T
Port:	yantian

Product Description

PRODUCT FEATURE

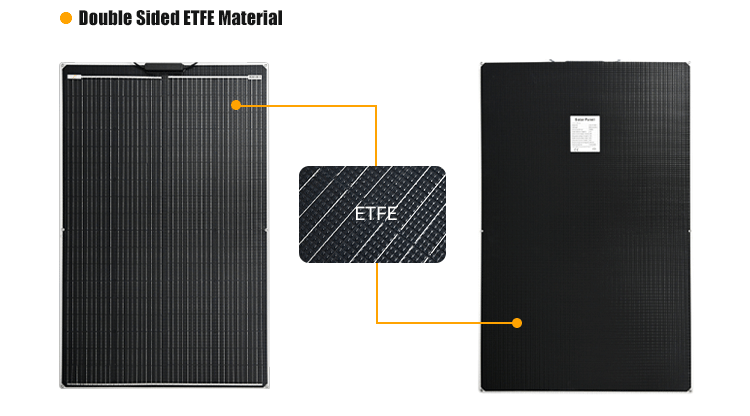

Customized logo double-sided ETFE material 60-270W customized wattage, ideal for outdoor life suitable for yachts, RVs, etc.

PRODUCT DETAILS

The LEE series is very light and soft, weighing only 8.4kg for the maximum wattage of 270W and 2kg for the minimum wattage of 60W. The maximum bending angle is from 30mm to 100mm.

Product Superiority

PRODUCT SPECIFICATION

Model	LEE-M2-60W	LEE-M2-100W	LEE-M2-120W	LEE-M2-150W
Maximum Power/Pmax(Wp)	60W	100W	120W	150W
Cell Efficiency	22.70%	22.70%	22.70%	22.70%
Number of cells	2*16	3*14	3*11	4*10
Operating Voltage/Vmp(V)	18.2	23.9	18.8	22.8
Operating Current/Imp(A)	3.30	4.19	6.39	6.58
Open Circuit Voltage/Voc(V)	21.3	28.0	22.0	26.7
Short Circuit Current/Isc(A)	3.46	4.39	6.70	6.91
Dimension(mm)	8303954mm	9505804mm	11005804mm	10107654mm
Solar cells	Mono cell	Mono cell	Mono cell	Mono cell
Weight(kg)	2KG	3.4KG	3.9KG	4.7KG
The maximum system voltage	200V DC(IEC)	200V DC(IEC)	200V DC(IEC)	200V DC(IEC)
Connectors	MC4	MC4	MC4	MC4
Output power tolerance	±3%	±3%	±3%	±3%
Operating Temperature	-20~75℃	-20~75℃	-20~75℃	-20~75℃
Color	Black	Black	Black	Black
Warranty	3 Years	3 Years	3 Years	3 Years
Customize Service	SUNGOLD offer customize service,please refer to our website or ask SUNGOLD workers for more sizes and the latest parameters.

PRODUCT APPLICATION

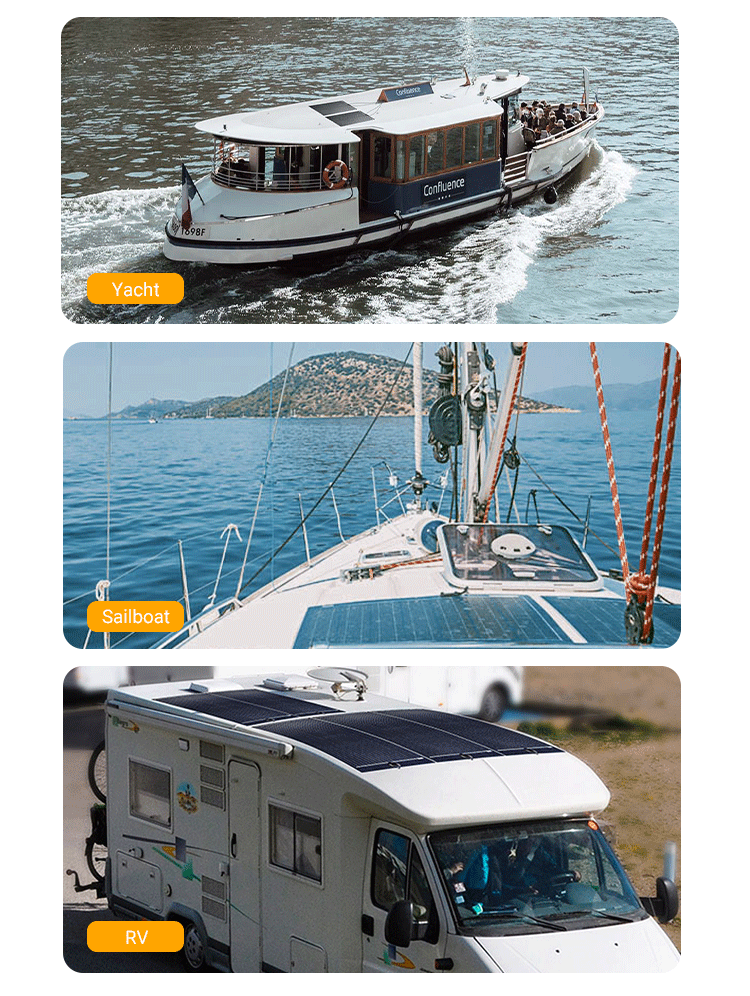

Sungold LEE series flexible solar panel solar panels are easy to install. The pre drilled holes on the cormers of the solar panel help to mount it on your vehicle, boat, RV, or anywhere else you need.

PRODUCTION PROCESS

PRODUCT PACKAGING

CLIENT FEEDBACK

FAQs

1.Q: Can this product be used at sea? Yes, this product is designed for marine use. 2.Q: Is it really waterproof? Yes, LEE series is designed to be waterproof, with a waterproof rating of IP67. 3.Q：I want to use it on boats and yachts, TF or LEE? Choose LEE series will be better, double-sided ETFE material salt spray corrosion prevention, more suitable for the use of marine environment. 4.Q: How long is the warranty? The warranty of LEE series is 3 years, and the service life is 15 years. 5.Q: What are the advantages of your products compared with similar products? It is more cost-effective and uses cutting-edge materials and advanced technology. 6.Q: Won't it be corroded by seawater when used in navigation? Almost not. Sungold has upgraded the technology and product design of LEE series for marine use environment, and the material is resistant to salt spray and corrosion. 7.Q: Will the flexible board be badly stored and fragile? No, the flexible board has certain flexibility and does not have the problem of fragility, and the anti-stepping test still performs well.

8.Q: Can the flexible board be bent? Maximum bending how many degrees? Yes, the bending degree of different wattage varies from 30mm to 270mm. 9.Q: Why do the edges of the panel cells turn yellow during the long-term use of the product? Because the solar panel is exposed to ultraviolet light will cause the edge to turn yellow, is a normal phenomenon. 10.Q: Will aging be particularly fast when used at sea for a long time? No, the use of LEE series ETFE material can effectively slow down the aging of the group price.
