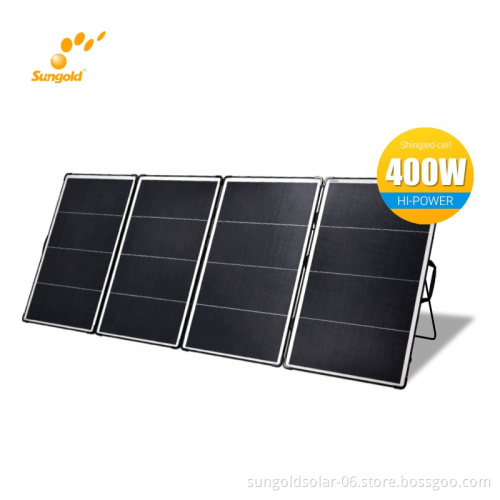

CE Certified 400W Outdoor Portable Foldable Solar Panels

CE Certified 400W Outdoor Portable Foldable Solar Panels

$253.89

2-99 set
$231.99

100-499 set
$229.99

≥500 set

Min. Order:: 1 set

Min. Order:: 1 set

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Customized logo monocrystalline high-power portable solar panels customized wattage from 200W to 440W for off-grid use scenarios

Product Feature

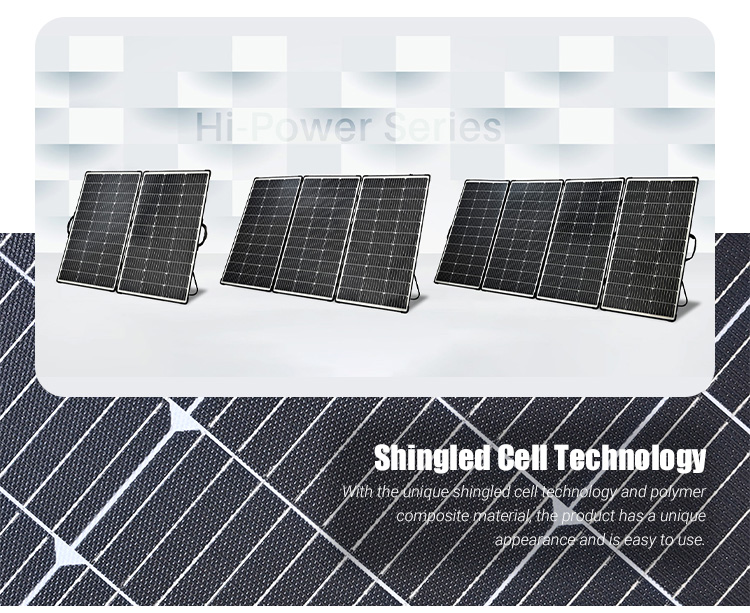

HP-M series can be customized from 200W to 440W

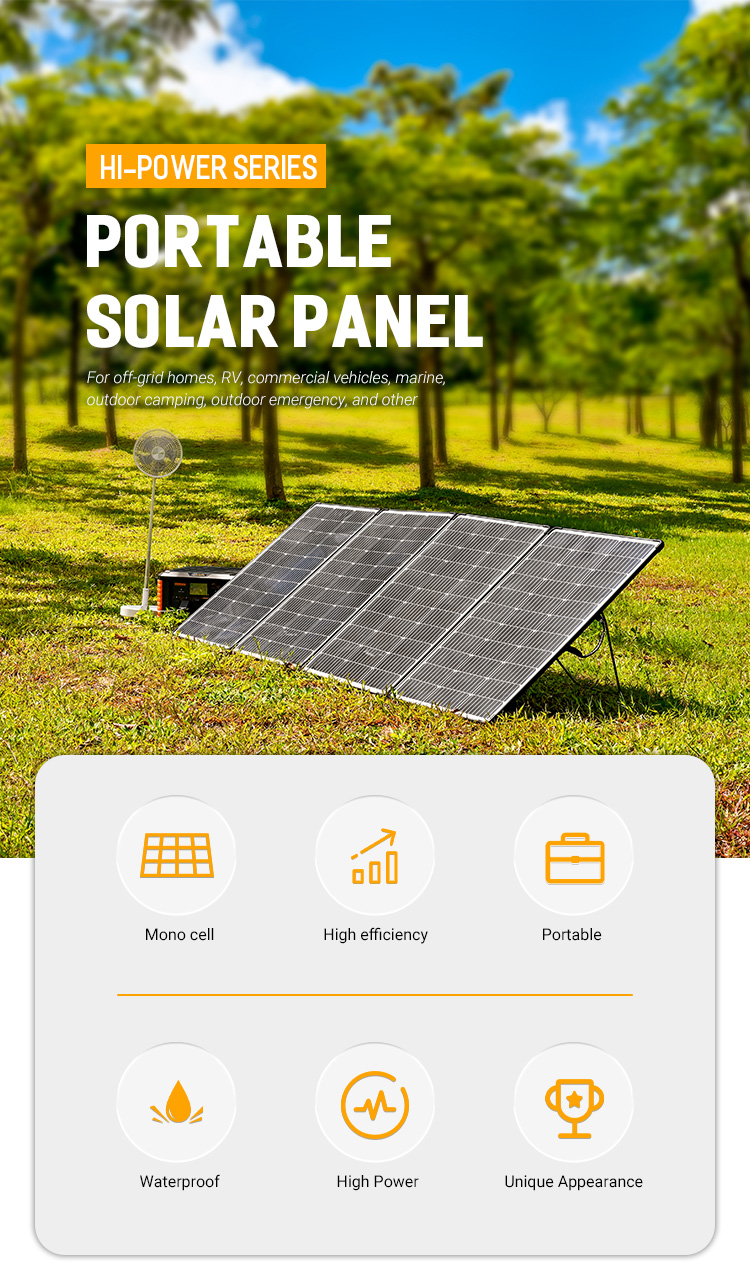

HP-M Series HP-M series is the Sungold Hi-Power series of monocrystalline solar panels. suitable for off-grid homes, RV, commercial vehicles, marine, outdoor camping, outdoor emergency, and other off-grid application scenarios.

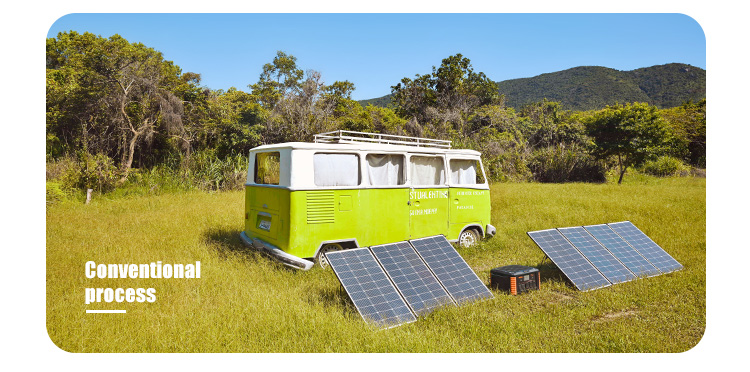

Conventional process Conventional multi-bus single-crystal design, can be multiple sets in series, the highest single set of power up to 440w, very suitable for 1-1.25kwh portable energy storage

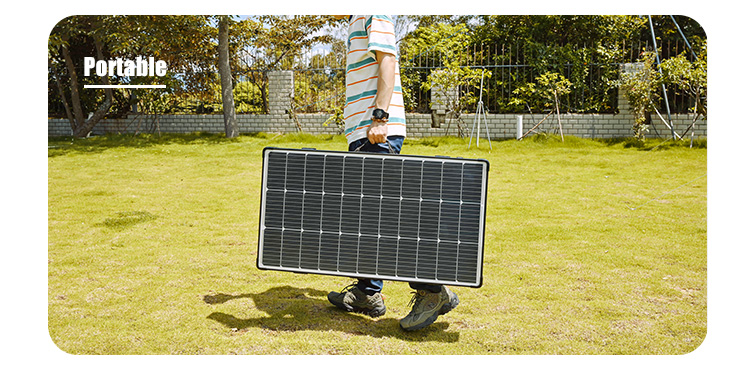

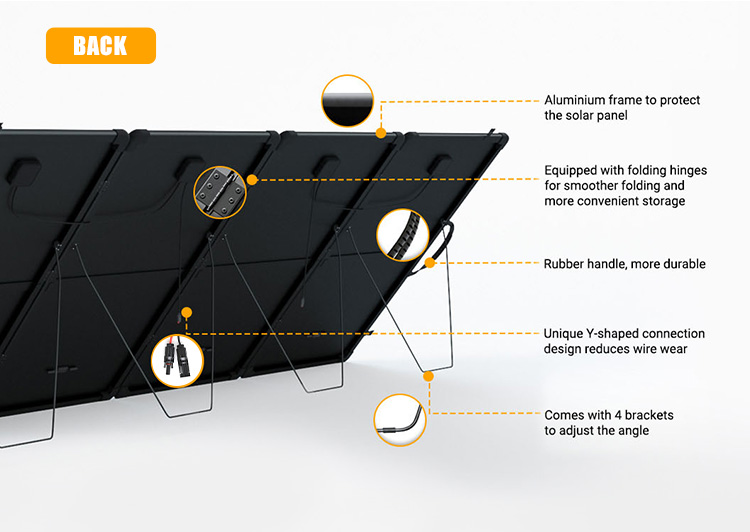

Portable HP-M series portable design, solar panels can be folded for easy storage, compared to traditional solar panels can save more space, convenient for daily transport and outdoor carry.

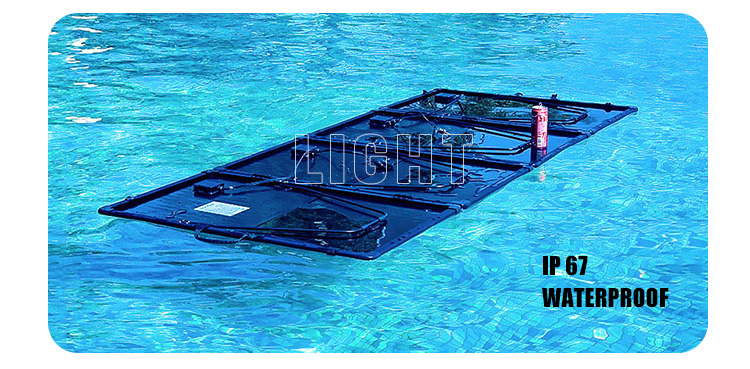

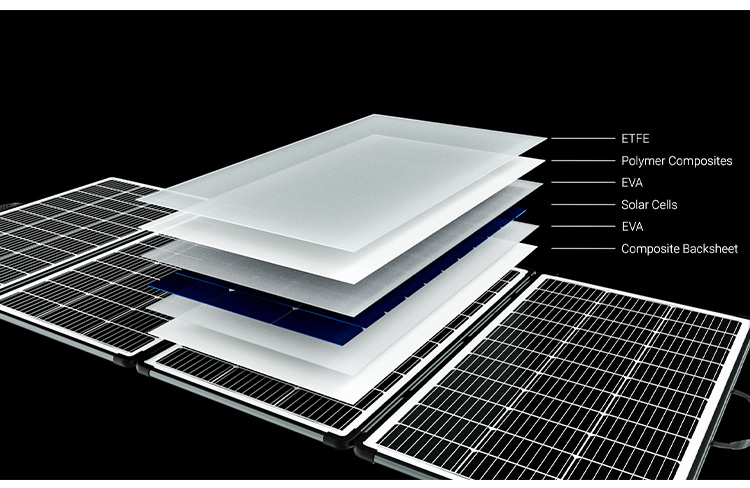

Waterproof and durable Hi-Power uses highly durable materials with the latest patented material technology for long service life. The panels are covered with high-performance fluoropolymer ETFE film with IP67 level of protection, which provides stable performance in wet, dry and even dusty environments.

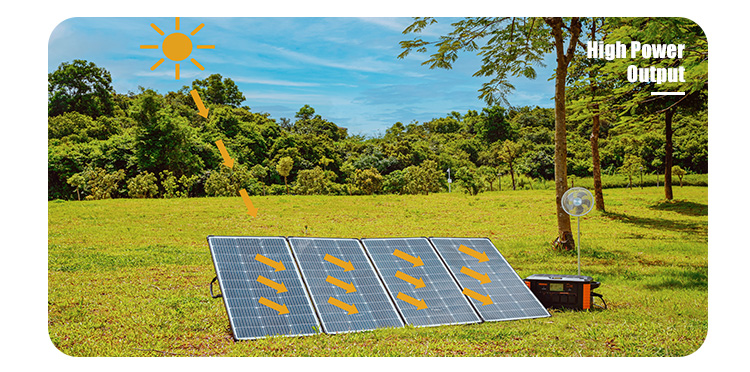

High Power Output HP-M series features a unique single-piece folding design that is the first of its kind. To achieve a higher 23% solar power conversion, we used Multiple grid monocrystal. So when you're charging your own outdoor power source, you can use this to charge more power to your devices

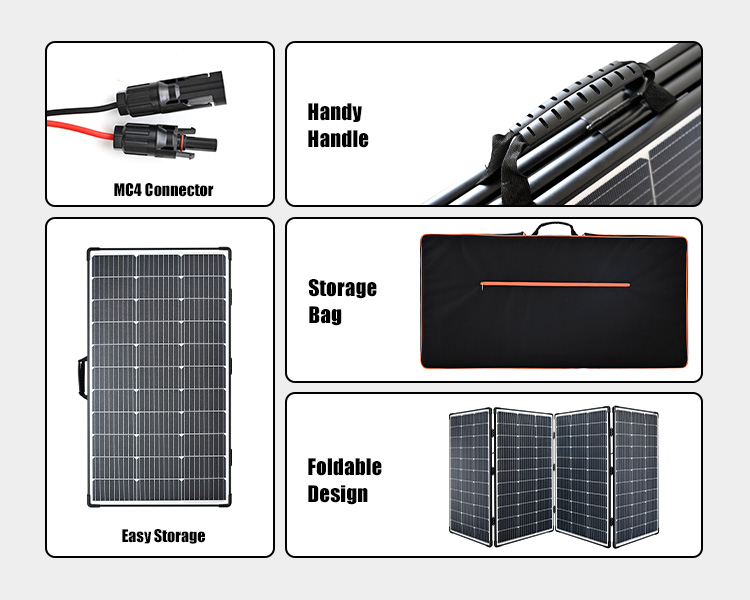

Product Details

HP-M takes conventional solar cell welding technology to customize different products according to different surface materials.

Product Specification

Model	HP-2*100W	HP-3*100W	HP-4*100W	HP-2*110W	HP-3*110W	HP-4*110W
Folding Number	2pcs	3pcs	4pcs	2pcs	3pcs	4pcs
Cell Efficiency	＞22.8％	＞22.8％	＞22.8％	＞22.8％	＞22.8％	＞22.8％
Number of cells	3*11	3*11	3*11	3*12	3*12	3*12
Operating Voltage/Vmp(V)	19.1	19.1	38.3	20.9	20.9	41.8
Operating Current/Imp(A)	10.48	15.71	10.45	10.53	15.79	10.53
Open Circuit Voltage/Voc(V)	22.3	22.3	44.8	24.5	24.5	48.9
Short Circuit Current/Isc(A)	10.99	16.49	10.97	11.05	16.58	11.05
Expand Size(mm)	109598725	164098725	218898725	1095107225	1640107225	2188107225
Folded Size(mm)	9875475	98754770	98754790	107254750	107254770	107254790
The maximum system voltage	100VDC(IEC)	100VDC(IEC)	200VDC(IEC)	100VDC(IEC)	100VDC(IEC)	200VDC(IEC)
Weight(kg)	6.15kg	9.5kg	12.4kg	6.4kg	10kg	13.2kg
The maximum system voltage	100VDC(IEC)	100VDC(IEC)	200VDC(IEC)	100VDC(IEC)	100VDC(IEC)	200VDC(IEC)
Outlet/Accessories	Outlet and Accessories: 0.4M cable with MC4 connector + 3M cable with MC4 to MC4 connector
Surface material	ETFE	ETFE	ETFE	ETFE	ETFE	ETFE
Output power tolerance	±3%	±3%	±3%	±3%	±3%	±3%
Color	White	White	White	White	White	White
Warranty	5 Years	5 Years	5 Years	5 Years	5 Years	5 Years
Remark	SUNGOLD offer customize service,please refer to our website or ask SUNGOLD workers for more sizes and the latest parameters.

Product Application

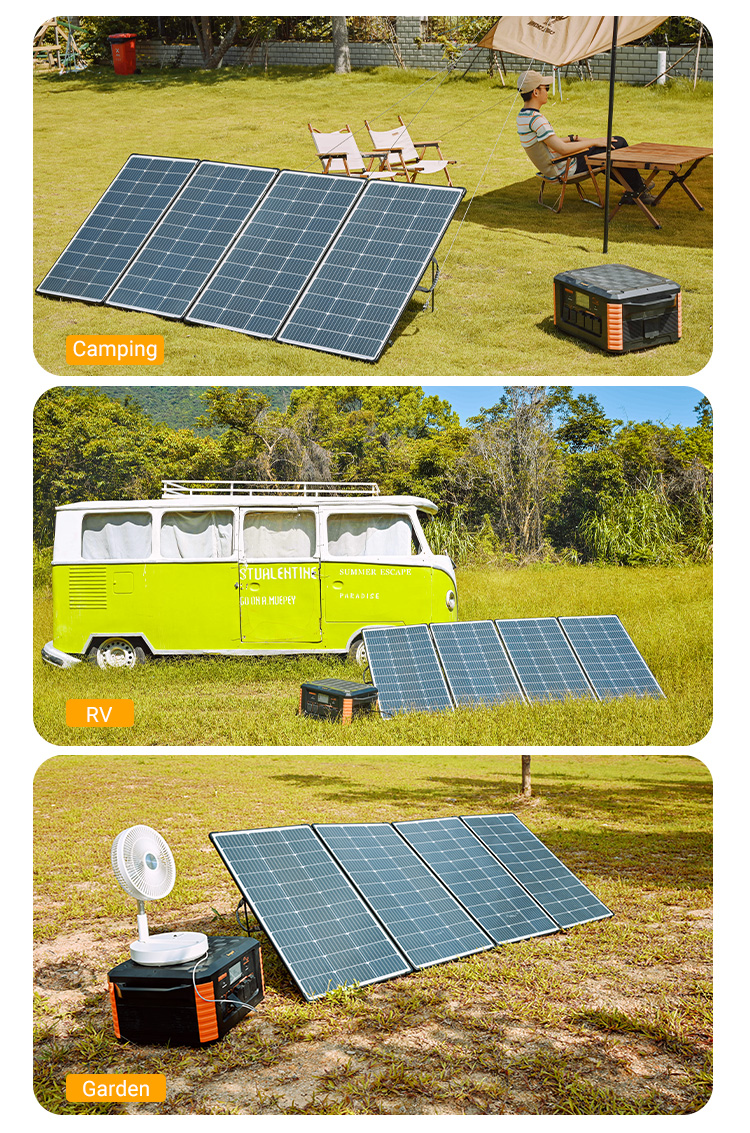

For off-grid home, RV, commercial vehicle, ship, outdoor camping, outdoor emergency

Production Process

Product Packaging

Client Feedback

FAQs

1. Q:Is this product waterproof? Yes, HP-M Waterproof rating IP67. 2. Q:How long warranty and service life does it have? 5 years warranty, 10 years life. Accessories support 1 year warranty. 3. Q:Is there any authoritative certificate certification? Yes, HP-M series has RoHS certification, EMC, LVD CE certification 4. Q:Does it come with a bracket? Or do I need to buy it separately? Yes, it comes with a bracket and is part of the solar panel. 5. Q:Is it suitable for high power energy storage? Yes, Sungold's Hi-Power series is designed for high-power energy storage. 6. Q:What is the arrangement of 200W for monocrystalline solar sheet? Yes, HP-M adopts monocrystalline electric 166 cells, and the 200W adopts the 3*11 arrangement. 7. Q:Is ETFE material used? Yes, the surface of HP-M is made of ETFE material. 8. Q:Do you support custom size and logo for this product? Yes, all of Sungold's products support logo customization. 9.Q:How to improve the power generation efficiency of solar panel? Keep the surface unobstructed and adjust the suitable angle. 10.Q:What is the packaging method? 1 set into 1 soft package, add paper corner protector, then into the inner box, two inner boxes to fit an outer box

About Sungold

Sungold has advanced production equipment and a mature management system,

and can customize and design high-quality solar panels according to customer needs.

Product innovation is one of Sungold’s most important driving forces.
