Product Description

Customized logo portable solar charging bag monocrystalline folding design for RV camping off-grid

BXF-D series solar panels adopt PERC shingled cell welding technology, with higher module power and less power loss.

PRODUCT DETAILS

BXF series portable solar panels are made with a onepiece lamination process, which not only gives the product a beautiful appearance but also provides stronger impact and crack resistance.

PRODUCT SPECIFICATION

Model

BXF-N-D-2*7W

BXF-N-D-3*7W

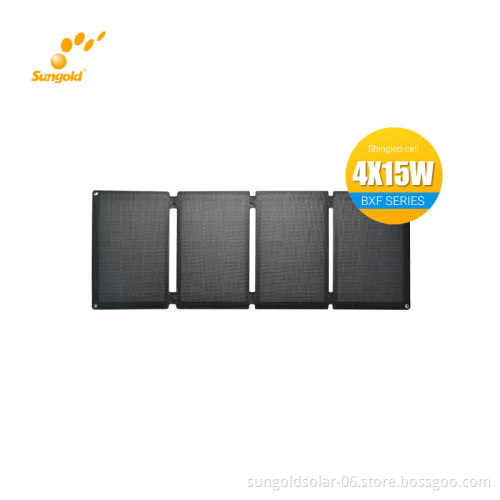

BXF-N-D-4*15W

BXF-N-D-4*25W

BXF-N-D-2*50W

BXF-N-D-3*50W

BXF-N-D-4*50W

Folding Number

2pcs

3pcs

4pcs

2pcs

3pcs

4cs

Cell Efficiency

>22.0%

Operating Voltage/Vmp(V)

8.0V

17.1V

18.8V

19.4V

Operating Current/Imp(A)

1.75A

2.63A

3.51A

5.32A

5.16A

7.74A

10.31A

Open Circuit Voltage/Voc(V)

9.4V

20.2V

22.2V

22.9V

Short Circuit Current/Isc(A)

1.86A

2.79A

3.72A

5.64A

5.46A

8.20A

10.93A

Expand Size

375*285*3mm

570*285*3mm

1075*390*3mm

1530*445*3mm

1000*665*18mm

1485*665*18mm

1975*665*18mm

Folded Size

285*185*37mm

390*270*35mm

445*385*35mm

665*530*27mm

Cell type

Shingled solar cells

Weight(kg)

0.5KG

0.7KG

2.0KG

3.4KG

3.2KG

4.8KG

6.4KG

The maximum system voltage

0.00

DC 100

Outlet/Accessories

USB 5V3A Voltage Regulator

Voltage Regulator FX-2U01 Dual USB 5V3A

USB QC3.0,Type-C,DC5521

900mm Cable+MC4 connector

Surface material

ETFE

Output power tolerance

±5%

Color

Black

Grey

Remark

SUNGOLD offer customize service,please refer to our website or ask SUNGOLD workers for more sizes and the latest parameters.

PRODUCT FEATURE

PERC shingled cell technology Portable solar panel BXF-D series adopts PERC shingled cell technology, with more than 10% higher power. The surface of solar panel is made of ETFE waterproof material, light weight and easy to carry, suitable for outdoor camping, RV, sea and other off-grid scenarios.

Waterproof and durable BXF-D series portable solar panels are IP67 waterproof. Not only is it waterproof, but it is also corrosion and temperature resistant, making it ideal for camping, hiking, picnics and other outdoor activities. Please note that the junction box is not waterproof, so please keep it dry.

ETFE Surface Material The portable solar panel BXF-D series uses ETFE surface material to protect the solar panel from occasional rain or wet fog, making it more durable than traditional panels.

BXF-D is available in a variety of chip counts and wattages, and Sungold supports OEM customization services.

PRODUCT APPLICATION

For hiking, trekking. camping, cycling, traveling, fishing and other activities.

PRODUCTION PROCESS

PRODUCT PACKAGING

CLIENT FEEDBACK

FAQs

1.Q: What power does this product have? The minimum power is 14W and the maximum power is 270W. You can learn more in the specific parameters. 2.Q：What can be powered by 2*7W? Can be charged to cell phones, tablets small electronic devices. 3.Q：Can it be used outdoors? Is it waterproof design? Yes, BXF-D has been strictly tested for outdoor use. 4.Q：If I want to print my company's logo on this product, is it possible? Yes, BXF-D supports logo customization. 5.Q：Does this product have professional product certification? Yes, BXF-D series has passed RoHS and CE test certification. 6.Q：What is the packaging method of this product? One set into one mailbag box, ten or five mailbag boxes into one outer box. 7.Q：What is the warranty and service life? 1 year warranty, 5 years service life. 8.Q: Is it a monocrystalline cell or a polycrystalline cell? It is monocrystalline cell with shingled cell process. 9.Q: What wattage is recommended? According to the amount of power you need to choose the right wattage, low power can be used for small electronic devices power supply, high power can meet more power needs. 10.Q：Does your company produce its own? How long have you been in the solar industry? Yes, Sungold is a professional solar panel manufacturer with 15 years of manufacturing experience, which is trustworthy.
