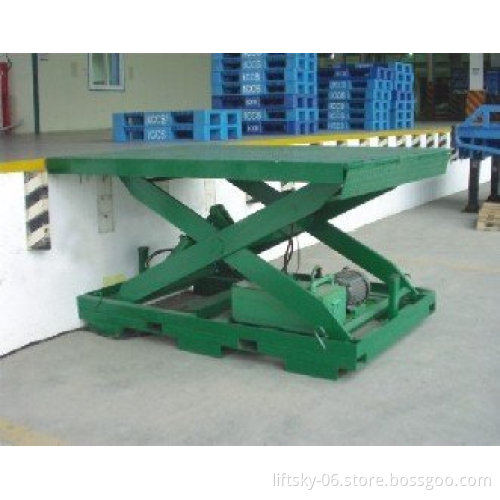

1000kg Single scissor lift SJG1.0-0.45

Specifications 1000kg single scissor lift:

Steady quality and longevity.

Various size and capacity for your option.

Using simple and easily.

 1000kg Single scissor lift  Crack control device design to prevent the suddenly falling when tube breaking. Power supply: AC380V,AC220V,AC110V,DC24V and AC12V. Be able to drive at maximum height
Maneuverable, extremely easy to use;
Safe ground clearance for indoor/outdoor Operation
Robust, reliable and easy to maintain   Operation is easy, and the electric components are CE certified.
Custom-made product are made according to detailed request, Please tell us load weight, lift height, and platform size, our engineer will design a suitable lift for you soon. Guarantee: 12 months, we provide technical supporting all the time   This kind lift platform has several models on different standards.

Model	Capacity(kg)	Travel(mm)	Platform size(mm)	Minimum height(mm)	Motor power (kw)
SJG0.5-0.47	500	470	800*400	160	0.75
SJG1.0-0.45	1000	450	800*400	180	1.1
SJG1.0-0.6	1000	600	1000*500	180	1.5
SJG1.0-1.0	1000	1000	1500*800	200	1.5
SJG1.5-1.0	1500	1000	1500*800	230	1.5
SJG1.0-1.3	1000	1300	2000*1200	260	1.5
SJG2.0-1.6	2000	1600	2500*1600	380	2.2
SJG3.0-2.0	3000	2000	3000*1800	450	3.0
SJG5.0-1.9	5000	1900	3000*1800	480	5.5
Detailed size according to your request and the capacity up to 100,000kgs
