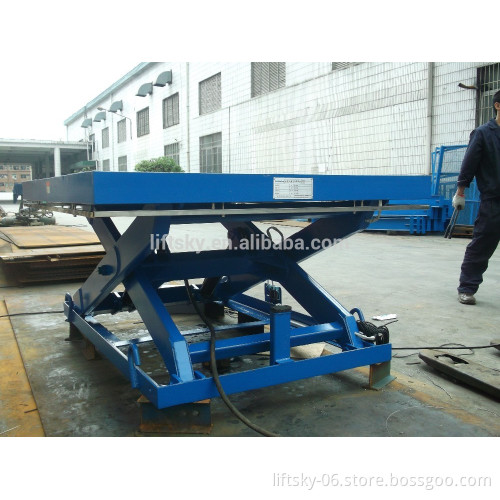

Stationary scissor lift platform SJG0.5-0.68

Specifications stationary sscissor lift

strong and stable structure

imported seal ring and derust painting

15 year experience with CE & ISO

Stationary scissor lift platform SJG0.5-0.68 :  1,This kind of scissor lift can be used to lift wheelchair with different levels, suitable for wheelchair moving between stairs, from basement to first floor, or to second floor.
2,Operation is easy, and the electric components are CE certified.
3,Custom-made product are made according to detailed request, please tell us load weight, lift height, and platform size, our engineer will design a suitable lift for you soon. 4,we are specialized in Lifting equipment design,manufacturing,exporting and maintenance for more than 15 years,we are surely we can provide the best products, best price,best after service for you, So if you have any inquiry ,pls feel free to contact with us by e-mail or by phone.   Some models for your reference:

Model	Capacity(kg)	Travel(mm)	Platform size(mm)	Minimum height(mm)	Motor power (kw)
SJG0.5-0.47	500	470	800*400	160	0.75
SJG1.0-0.45	1000	450	800*400	180	1.1
SJG1.0-0.6	1000	600	1000*500	180	1.5
SJG1.0-1.0	1000	1000	1500*800	200	1.5
SJG1.5-1.0	1500	1000	1500*800	230	1.5
SJG1.0-1.3	1000	1300	2000*1200	260	1.5
SJG2.0-1.6	2000	1600	2500*1600	380	2.2
SJG3.0-2.0	3000	2000	3000*1800	450	3.0
SJG5.0-1.9	5000	1900	3000*1800	480	5.5
Detailed size according to your request and the capacity up to 100,000kgs
