2000kg Lifting scissor table SJG2.0-2.655

Specifications 2000kg Lifting scissor table

no maintain with brass lining

using simply and easily

steady,strong,good capacity

long life use

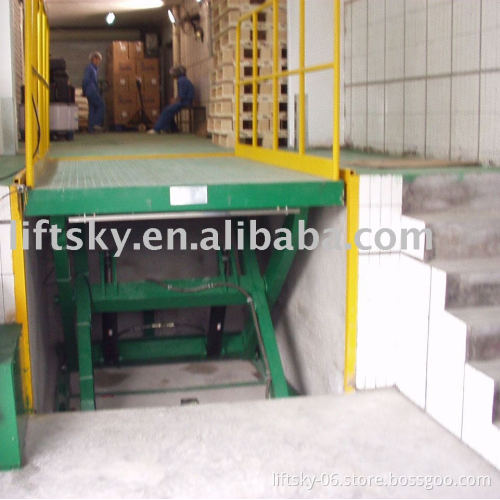

2000kg Lifting scissor table SJG2.0-2.655  :   1)fixed scissor lift 2)installation style:pit installation and ramp installation 3) Import cylinder and airproof covery, steady and using for a long time 4)No maintain brass lining, using simply and easily 5)Prevent break valve can safeguard the goods safe when oil tube break 6)safe pole can safeguard workers and goods cannot be injured 7) Power option: AC380V,AC220V, AC110V, DC24V, DC12V,etc 8)Size: We have standard specifications, but we can also produce according to your request.

Type	Platform size	Capacity	Travel height	Min height	Power
SJG0.5-0.47	800*400mm	500kg	470mm	160mm	0.75kw
SJG1.0-0.45	800*400mm	1000kg	450mm	180mm	1.50kw
SJG1.0-0.60	1000*500mm	1000kg	600mm	180mm	1.50kw
SJG1.0-1.0	1500*800mm	1000kg	1000mm	200mm	1.5kw
SJG1.0-1.5	2000*2000mm	1000kg	1500mm	350mm	1.5kw
SJG1.5-1.0	1500*800mm	1500kg	1000mm	230mm	1.5kw
SJG1.0-1.3	2000*1200mm	1000kg	1300mm	260mm	1.5kw
SJG2.0-1.6	2500*1600mm	2000kg	1600mm	380mm	2.2kw
SJG1.0-1.7	2700*2000mm	1000kg	1700mm	380mm	2.2kw
SJG3.0-2.0	3000*1800mm	3000kg	2000mm	450mm	3.0kw
SJG3.0-0.8	1200*450mm	3000kg	800mm	350mm	2.2kw
SJG5.0-1.9	3000*1800mm	5000kg	1900mm	480mm	5.5kw
