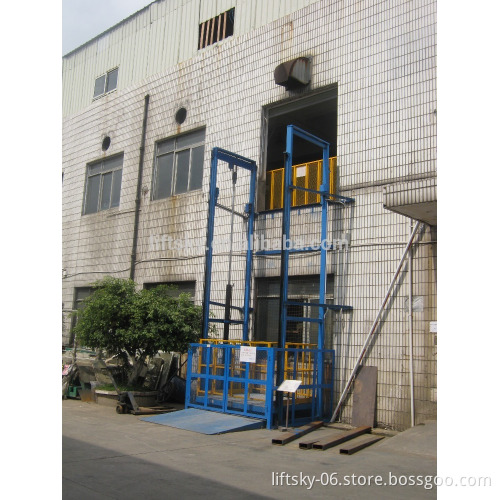

Special lifting goods lift platform by chain

Product Description   Place of Origin: Guangdong, China    (Mainland) Brand Name: Liftsky Model Number: SJL1.0-2.5 Lift Mechanism: Lift Chain Lift Drive / Actuation: Hydraulic Power: 2.2 Rated Loading Capacity: 1000kg Min. Lifting Height: 150mm Max. Lifting Height: 2500mm Table Size: 2500*1600mm Certification: CE & ISO9001:2008 Warranty: 12 months color: blue or customized condition: New                                 Packaging & Shipping

Packaging Details:	standard packing
Delivery Detail:	within 30 days

    Specifications CE Approved hydraulic lift, electric chain lift Specifications  1,Easy to control and operating
2,Heavy load capacity -Easy to control and operating 3,Chain lifting platforms, with flexible lifting range, large loading capacity, are compact and light weight. 4, Without restriction of space, they are widely used in lifting operations over large areas, such narrow space as warehouses, factories, highways and stairwell place where we could not dig pits.  5, The platform moves smooth, operates simply, safely and reliably.     Guide rail hydraulic lifting platform is a kind of non-scissors lift, which is used to transfer cargo between layers in workshop, restaurant and hotel.  the operation is simple and reliable; hydraulic and electric drive make cargo transfer more easy and economic.   Other specification as below for your reference:

Model	Loading weight (KG)	Travel (mm)	platform  dimension (mm)	min height (mm)	Power supply
SJL0.5-2.3	500	2300	1500*1300	120	1.5
SJL0.6-2.5	600	2500	1600*1600	150	1.5
SJL1.0-2.5	1000	2500	2500*1600	150	2.2
SJL1.5-4.5	1500	4500	2000*1600	200	3.0

    Beside the chain elevator,we also produce and export dock leveller, truck ramp,dock seal, parking system etc.
