hydraulic chain elevator chain lifter SJL0.5-2.3

Specifications hydraulic chain elevator

large bearing capacity

high-strength of steel structure to ensure safety

customized & CE certificat

hydraulic chain elevator chain lifter description hydraulic chain elevator

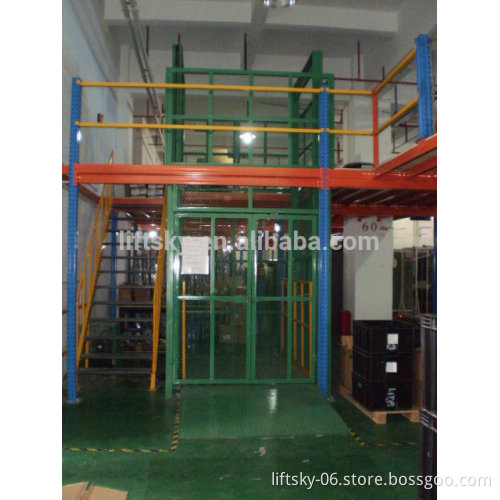

1)chain lifting platform features lifting goods
2)hydraulic driven and lift by chaIn   Main feature: 1)      chain lifting platform features lifting the goods through the different floors. 2)      chain lifting platform----hydraulic driven and lift by chian . 3)      special lifting chain and have long use life. 4)      the close height is low so  not need pit installation. 5)      closed type structure ,safe and easy to clean.   Liftsky brand superlarge lift platform can meet the requirement of bigger work area,such as lifting the autocar,container truck and large goods.Because of the strict requirement,heavy  responsibility in the process of use, this kind of product need excellent design technology and production technics .In every process,we control strictly and have rigid test to make sure Liftsky  brand products features "safety first,quality excellent".   Other specification as below for your reference:

Model	Loading weight (KG)	Travel (mm)	platform dimension (mm)	min height (mm)	Power supply
SJL0.5-2.3	500	2300	1500*1300	120	1.5
SJL0.6-2.5	600	2500	1600*1600	150	1.5
SJL1.0-2.5	1000	2500	2500*1600	150	2.2
SJL1.5-4.5	1500	4500	2000*1600	200	3.0

    Beside the chain elevator,we also produce and export dock leveller, truck ramp,dock seal, parking system etc.
