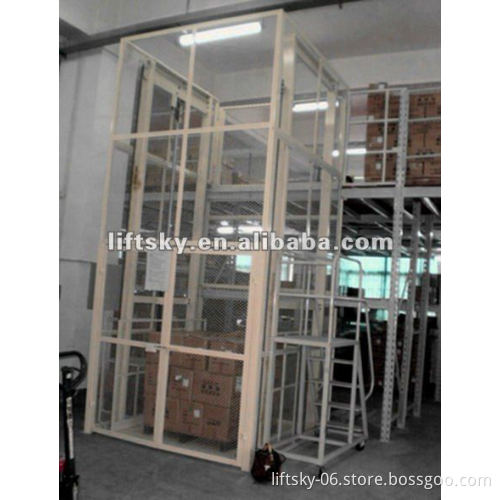

heavy Chain lift elevator lift SJL0.5-2.5-1

Specifications heavy Chain lift

Hydraulic drive and chain lift

Crane-type chain make the lift life & strong safety

No need pit construction

heavy Chain lift elevator lift description:  1.Hydraulic drive and chain lift.
2.Crane-type chain make the lift life and strong safety.
3.No need pit construction for usage.
4.Closed structure is easy to clean and safer.     Features:   1, The stationary scissor lift is generally used for lifting cargo and people to working place. Loading and unloading goods from ground to underground or to other floors.
2, The capacity is various depending on the different working height . The control system and working voltage can be changed to client's requirements.
3, Lift tables are suitable for factory, institutions, shopping, garages, warehouse and other industries.
4, The lift installed in the ground pit so it did not take the ground space and did not hindrance transportation
Safety:
1, There is limit switch system make sure the lift can stop at the accurate position.
2, All the lift have guard rails to guarantee safety of people and cargo.
3, According to load capacity and lift height, guide rails make sure the lift can work steady and safety.
4, The platform equipped with antiskid plate to prevent slipping, it is enough safe when it works
5, The lift before leaving our factory are passed more than twice test.

Model	Platform	Capacity	Stroke	Min.height	Motor
SJL1.0-3.0	1600*1800mm	1000kg	3000mm	100mm	2.2kw
SJL1.0-4.0	1600*1800mm	1000kg	4000mm	100mm	2.2kw
SJL1.0-4.5	1600*1800mm	1000kg	4500mm	100mm	3.7kw
SJL1.0-5.0	1600*1800mm	1000kg	5000mm	100mm	3.7kw
SJL1.0-5. 5	1600*1800mm	1000kg	5500mm	100mm	3.7kw
SJL1.0-6.0	1600*1800mm	1000kg	6000mm	100mm	3.7kw
SJL1.0-6. 5	1600*1800mm	1000kg	6500mm	100mm	5.5kw
SJL1.0-7.0	1600*1800mm	1000kg	7000mm	100mm	5.5kw
SJL1.0-7. 5	1600*1800mm	1000kg	7500mm	100mm	5.5kw
SJL1.0-8.0	1600*1800mm	1000kg	8000mm	100mm	7.5kw
SJL1.0-8.55	1600*1800mm	1000kg	8500mm	100mm	7.5kw
SJL1.0-9.0	1600*1800mm	1000kg	9000mm	100mm	7.5kw
SJL1.5-2.5	1600*1800mm	1500kg	2500mm	100mm	2.2kw
SJL1.5-3.0	1600*1800mm	1500kg	3000mm	100mm	2.2kw
SJL1.5-3.5	1600*1800mm	1500kg	3500mm	100mm	2.2kw
SJL1.5-4.0	1600*1800mm	1500kg	4000mm	100mm	2.2kw
SJL1.5-4.5	1600*1800mm	1500kg	4500mm	100mm	3.7kw
