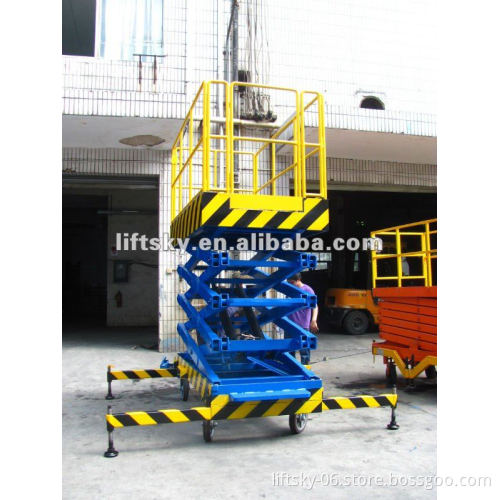

Mobile hydraulic scissor lift

This kind of movable high travel working platform is a scissor lift platform,which is manoeuvred manually into work positions and elevated and lowered using an electro-hydraulic control system.Easily manoeuvrable,simple operation,steel guard rails,non-slip platform,steerable wheels,brakes on two wheels,dctachable battery charger,emergency lowering facility,easily transportable,low maintenance.Both castor brakes and safety stands can fix the platform-An emergency stop button is provided on the control box,once depressed,this isolates power to the raise and lower function.

Model	Platform size	Capacity	Stroke	Min. height	Motor
SJY0.25-2.0	1000*520mm	250kg	2000mm	680mm	DC12V
SJY0.25-3.0	1200*520mm	250kg	3000mm	800mm	DC12V
SJY0.25-4.0	1260*750mm	250kg	4000mm	940mm	DC12V
SJY0.25-5.0	1260*750mm	250kg	5000mm	1100mm	DC12V
SJY0.25-6.0	1500*750mm	250kg	6000mm	1150mm	DC12V
SJY0.25-7.0	1800*800mm	250kg	7000mm	1300mm	DC12V
SJY0.25-8.0	1800*800mm	250kg	8000mm	1450mm	DC12V
SJY0.25-10.0	1850*800mm	250kg	10000mm	1650mm	DC12V
SJY0.5-14.0	3000*1200mm	500kg	14000mm	1750mm	DC12V
