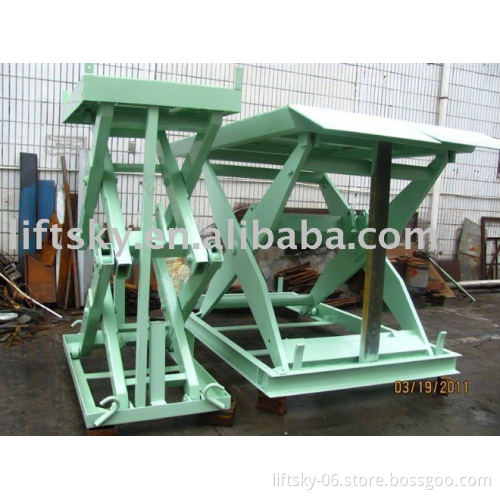

CE stationary lift platform / scissor lift / logistics & storage equipments

Specifications -We provide ISO 9001 Approval scissor lift platform:

-All imported oil cylinder and sealing ring, steady quality and longlife

Single scissor lift platform features:    1) Crack control device design to prevent the suddenly falling when tube breaking. 2) Power supply: AC380V,AC220V,AC110V,DC24V and AC12V.   Below specification for your reference.

Model	Capacity(kg)	Travel(mm)	Platform size(mm)	Minimum height(mm)	Motor power (kw)
SJG0.5-0.47	500	470	800*400	160	0.75
SJG1.0-0.45	1000	450	800*400	180	1.1
SJG1.0-0.6	1000	600	1000*500	180	1.5
SJG1.0-1.0	1000	1000	1500*800	200	1.5
SJG1.5-1.0	1500	1000	1500*800	230	1.5
SJG1.0-1.3	1000	1300	2000*1200	260	1.5
SJG2.0-1.6	2000	1600	2500*1600	380	2.2
SJG3.0-2.0	3000	2000	3000*1800	450	3.0
SJG5.0-1.9	5000	1900	3000*1800	480	5.5
Detailed size according to your request and the capacity up to 100,000kgs
