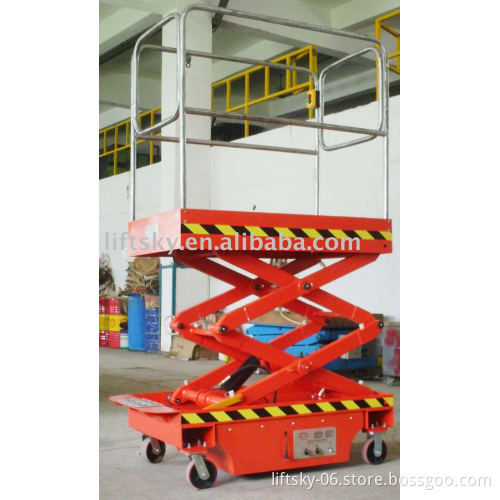

Elevated work platform.personal lift SJY0.15-8.0-2

Specifications Elevated work platform

can work anywhere

reliable, safe and simple operation

low maintenance

electro-hydraulic control

Elevated work platform.personal lift . 1.Electric-hydraulic system. 2.Easy for pull and push. 3.Two sets control boxes,it can be controlled at the platform or at
floor .More easy and safe. 4.Safety guard rail 5.Safety standing props and four solid wheels ,two have brakes,more
safe. 6.Automatic self-lock at the gate. 7.Equip with charge,battery and transformer ,it can be used
where the power is not available. 8.Paint:bake paint,elegant.
9.Anti-slip platform for exit and entrance. 10.Safety-lever 11.Size:

Model	Size	Capacity	Travel	Work height	lowest	motor
SJY0.25-2.0	1100*520mm	250kg	2000mm	4000mm	680mm	DC12V
SJY0.25-3.0	1200*520mm	250kg	3000mm	5000mm	800mm	DC12V
SJY0.25-4.0	1260*750mm	250kg	4000mm	6000mm	940mm	DC12V
SJY0.25-5.0	1260*750mm	250kg	5000mm	7000mm	1100mm	DC12V
SJY0.25-6.0	1500*750mm	250kg	6000mm	8000mm	1150mm	DC12V
SJY0.15-7.0	1800*800mm	150kg	7000mm	9000mm	1300mm	DC12V
SJY0.15-8.0	1800*800mm	150kg	8000mm	10000mm	1450mm	DC12V
SJY0.15-10.0	1850*800mm	150kg	10000mm	12000mm	1650mm	DC12V

 Special specifications as you need.
