250kg high working platform / lifter SJY0.25-5.0

Specifications 250kg high working platform / lifter

non-slip platform,Steel guard rails

Electro-hydraulic control system

low maintenance

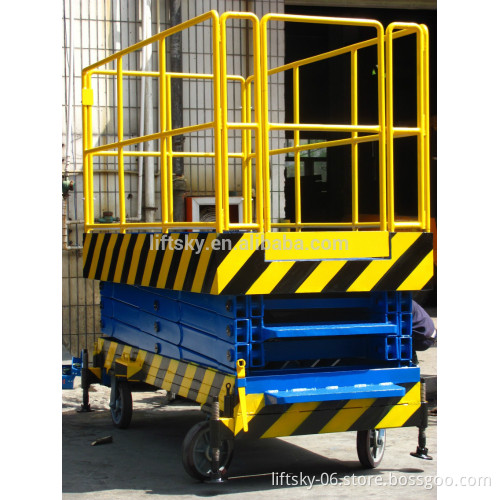

 250kg high working platform / lifter   This kind of movable high travel working platform is a scissor lift platform, which is  1)Manoeuvre manually into work position and elevated and lowered using an electro-hydraulic control system, 2)Easily manoeuvre, simple operation, steel guard rails, non-slip platform, 3)Steerable wheels, brakes on two wheels, 4)Detachable battery charger, emergency lowering facility, 5)Easily transportable, low maintenance, 6)Both castor brakes and safety stands can fix the platform-an emergency stop button is provided on the control box, once depressed, this isolates power to the raise and lower function.  7)Various model and capacity for your reference:

Model	Travel height	platform size	Capacity	Lowest height
SJYO.25-2.0	2000mm	1000*520mm	250kg	680mm
SJYO.25-3.0	3000mm	1200*520mm	250kg	800mm
SJYO.25-4.0	4000mm	1260*750mm	250kg	940mm
SJYO.25-5.0	5000mm	1260*750mm	250kg	1100mm
SJYO.25-6.0	6000mm	1500*750mm	250kg	1150mm
SJYO.15-7.0	7000mm	1800*800mm	150kg	1200mm
SJYO.15-8.0	8000mm	1800*800mm	150kg	1250mm
SJYO.15-10.0	10000mm	1850*800mm	150kg	1450mm

      We not only mass production  250kg high working platform / lifter, we also dealing with dock leveller, truck ramp,dock seal, parking system etc.   Other certificate as below for your reference
