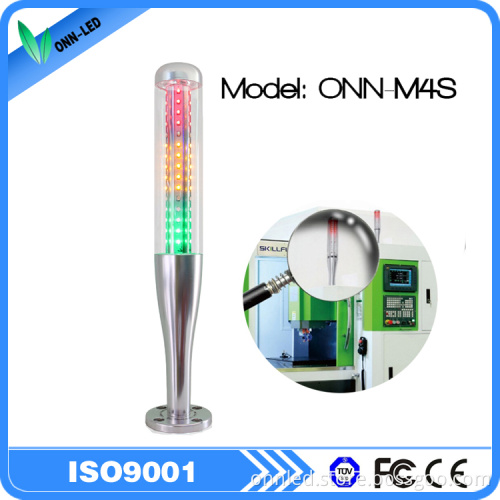

ONN-M4S cnc led machine work buzzer warning light Tri-colors

ONN-M4S cnc led machine work buzzer warning light Tri-colors

Brand	ONN	Surface Temperature	<50°C
Light source	smd 3528	Mounting	Fixed Base
Lifespan	50000 hours	Voltage	DC24V
View angle	360 °	Rated Current	80-250mA
Power(W)	1-4W	IP grade	IP54

Products introduce: 1,Delicate structure, simple and beautiful, competitive price;
2,The radiating of light is good, to insure the life spans of products;
3,China famous power.

1	Brand ONN
2	Model No.: M4S

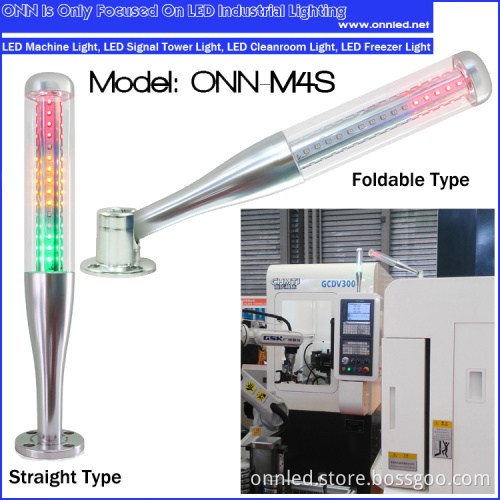

3	Appearance : A . Baseball shape       B. Fodable Type
4	Color : 3 color ( RYG )
5	Voltage:  B. DC24V
6	Wiring Mode : C. Contact Type      Z. Input Directly common line is positive ( NPN ) B. Input directly common line is negative ( PNP )
7	Function:  B. Continous light    F. With buzzer no flash    S. Red flash no buzzer   C. Red flash with buzzer     D. All flash   E. All flash with buzzer
8	Diameter: 50mm

    Application Environmental Requirements:

Working temperature:	-20~45℃
Save temperature:	-40~70℃
Working humidity:	10~90%
Save humidity:	10~90%

  Packing:

Packing material	cartons
N/W of one light  (Kg)	0.5
G/W of total cartons  (Kg)	8.2
Qty in carton (PCS)	12
Size of inner box(L*W*H)mm	415*80*80mm
Size of outer carton(L*W*H)mm	440*265*345mm

   Repair list:   1,The warranty of the products is36months. If broken in natural within the warranty, please bring invoice and date in the light to repair free. 2,The following cases are not covered by the warranty, service charges paid by:
  (1)Altered fixture dates
  (2)The broken is because of improper use by user;   (3)The body of light and bundled products is broken or lost can’t warranty;
  (4)The broken reason is not natural, such broken by wrong input voltage and set up to lead to light can’t work;   (5)Dismantle and repair have not agree with factory, repair and alter by the other repair person not in authorized service station;   (6)The broken is caused by fires, earthquakes, floods, lightning or other natural disasters, pollution and abnormal voltage.   (7)Lights need to repair because rodents, salt spray, corrosion. 3,Exceed warranty period, repair will be charge fees as standard. Service charge = repair fees + material fees + freight fees. Related products TUV CERTIFICATE     Company information   Shenzhen ONN Semiconductor Lighting Co., Ltd, established in 2005, is a pioneer manufacturer of led industrial lighting products in China. We are now focused on led machine light, led warning light, led clean room light and led freezer light     With 10 years development, we have become the leader of producing and supplying led industrial lights in China. We have gained a 60% domestic market, and our products have also been exported widely exported to the world with fast increase year by year. We have cooperated with big customers from Germany, France, America,Japan, South Korea, Australia and so on. Our aim is to become the biggest and best supplier of led industrial lights from China to the world.   We will continue to do our best to develop and produce high quality and price competitive products to our clients. We hope very much to cooperate with more and more friends from the world to develop the brilliant led industrial lighting market
