led warning strobe light for cnc machine ONN-M4T amber strobe light

led warning strobe light for cnc machine ONN-M4T amber strobe light   Products information:

Brand Type	ONNM4T
Layer	Single color
LAMP POWER	2W-4.5W
Installation	A,Foldable  B,Wall-mounted  C,Disc bar   D,Disc
Input voltage	B,DC24  C,AC220V
Functions	B,Continuous light   F,Continuous light with buzzer  S,Red flash  C,Red flash with buzzer D,All colors flash  E,All colors flash with buzzer
Wiring	C,Contact type  Z,Power direct input type (Positive) B, Power direct input type (Negative)
Lamp color order	R:Red  Y:Yellow  G:Green
Lampshade diameter	50,Diameter Φ50mm

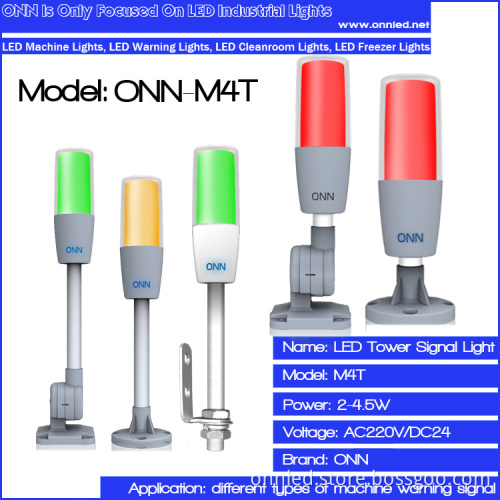

Model No.		ONN - M4T lathe warning light
Voltage	DC24V	current	20mA		Power	2W-4.5W
	AC220V		5.5mA
IP rating	IP54	Length of cable	45mm     65mm		Color of body	white/ gray
Light	Chip 3528 LED 0.06W/pcs			Life of whole light	50 000 hrs
Beam angle	360°	color	Red,yellow,green		Original place	Shenzhen China

  Application
  TUV CERTIFICATE product presentation:      Environmental Requirements:

Working temperature:	-20~45℃
Save temperature:	-40~70℃
Working humidity:	10~90%
Save humidity:	10~90%

  Packing:

Term	Product weight (Kg)	Weight with box(Kg)	Weight  in whole carton(PCS)	Size of inner box(L*W*H)mm	Size of carton(L*W*H)mm
M4T Disc bar (long)	0.220	5.0	12	415*80*80mm	440*265*345mm
M4T Disc bar (short)	0.185	8.5	24	415*80*80mm	440*265*345mm
M4T Foldable (long)	0.260	5.5	12	415*80*80mm	440*265*345mm
M4T Foldable (short)	0.225	5.0	12	415*80*80mm	440*265*345mm

    Repair list:   1,The warranty of the products is 18 months. If broken in natural within the warranty, please bring invoice and date in the light to repair free.   2,The following cases are not covered by the warranty, service charges paid by:
  (1)Altered fixture dates
  (2)The broken is because of improper use by user;     (3)The body of light and bundled products is broken or lost can’t warranty;
  (4)The broken reason is not natural, such broken by wrong input voltage and set up to lead to light can’t work;     (5)Dismantle and repair have not agree with factory, repair and alter by the other repair person not in authorized service station;     (6)The broken is caused by fires, earthquakes, floods, lightning or other natural disasters, pollution and abnormal voltage.     (7)Lights need to repair because rodents, salt spray, corrosion.   3,Exceed warranty period, repair will be charge fees as standard. Service charge = repair fees + material fees + freight fees.   Company information   Shenzhen ONN Semiconductor Lighting Co., Ltd, established in 2005, is a pioneer manufacturer of led industrial lighting products in China. We are now focused on led machine light, led warning light, led clean room light and led freezer light   With 10 years development, we have become the leader of producing and supplying led industrial lights in China. We have gained a 60% domestic market, and our products have also been exported widely exported to the world with fast increase year by year. We have cooperated with big customers from Germany, France, America,Japan, South Korea, Australia and so on. Our aim is to become the biggest and best supplier of led industrial lights from China to the world.   We will continue to do our best to develop and produce high quality and price competitive products to our clients. We hope very much to cooperate with more and more friends from the world to develop the brilliant led industrial lighting market  New product Feedback   If you have any questions about our products and services, please contact us at your convenience, we will reply to you within 24 hours (except holiday)
