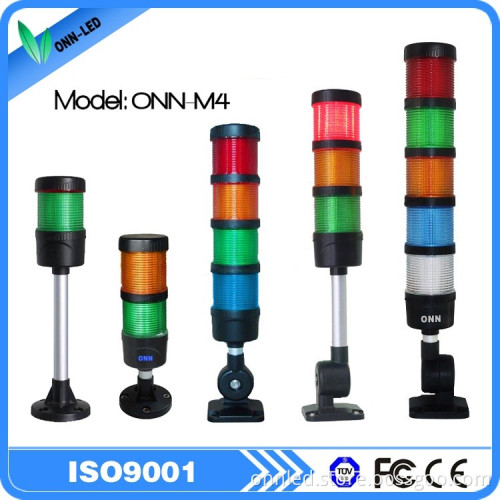

ONN-M4 led signal tower light and bar light for auto machine

ONN-M4 led signal tower light and bar light for auto machine Application:       Products information

Brand Type	ONNM4
Layer	1,Single color  2,Two-color  3,Three-color  4,Four-color
POWER	1.5W-4.5W
Installation	A,Foldable    B,Wall-mounted  C,Disc bar   D,Disc E,L-shape plate type
Input voltage	A,DC12V      B,DC24  C,AC220V
Functions	B,Continuous light   F,Continuous light with buzzer  S,Red flash  C,Red flash with buzzer D,All colors flash  E,All colors flash with buzzer
Wiring	C,Contact type  Z,Power direct input type (Positive) B, Power direct input type (Negative)
Lamp color order	Color order from top to bottom  R:Red  Y:Yellow  G:Green  W:White  B:Blue
Lampshade diameter	60,Diameter Φ60mm   70, Diameter Φ70mm

    Environmental Requirements:

Working temperature:		-20~45℃
Save temperature:		-40~70℃
Working humidity:		10~90%
Save humidity:		10~90%
Brand	ONN,ONN Shenzhen Semiconductor Lighting Co., Ltd. honor products
Light source	Chip 3528  LED 0.06W/pcs
Lifespan	Light source lifespan up to 100000hrs; Whole lamp lifetime is 50000hrs.
Beam angle	360°
CCT range	With different requirement by clients, you can choose: Red, yellow, green, blue, white. Most can provide 4 colors.
Place of origin	Shenzhen, China
Product appearance
Appearance design	Round   Modular Shades
Color of lamp body	Black or computer grey With blue backlight logo’s color: Red, Yellow, Green, Blue, White (Single layer Multi-color).
Material	PC(Bulletproof plastic),Engineering plastics, etc.

    Packing:

Packing material	Tri-color tri-layer(Foldable type/pole plate type)	M4 Tri-layer multi-colors(Plate type)	M4 Tri-color tri-layer(L-shape plate type)	M4 four layer four colors(Pole plate type)
Net weight/pc (Kg)	0.325	0.3	0.45	0.315
Gross weight/CTN (Kg)	6.1	5.8	7.6	6
Quantity/CTN(pcs)	12	12	12	12
Inner box(L*W*H)mm	415*80*80mm	415*80*80mm	415*80*80mm	510*90*75mm
Carton size(L*W*H)mm	440*265*345mm	440*265*345mm	440*265*345mm	580*280*233mm

  Note: the length of rod plate is made according to customer requirements, so will affect the measurement of gross specific orders     Repair list:   1,The warranty of the products is 18 months. If broken in natural within the warranty, please bring invoice and date in the light to repair free.   2,The following cases are not covered by the warranty, service charges paid by:
  (1)Altered fixture dates
  (2)The broken is because of improper use by user;     (3)The body of light and bundled products is broken or lost can’t warranty;
  (4)The broken reason is not natural, such broken by wrong input voltage and set up to lead to light can’t work;     (5)Dismantle and repair have not agree with factory, repair and alter by the other repair person not in authorized service station;     (6)The broken is caused by fires, earthquakes, floods, lightning or other natural disasters, pollution and abnormal voltage.     (7)Lights need to repair because rodents, salt spray, corrosion.   3,Exceed warranty period, repair will be charge fees as standard. Service charge = repair fees + material fees + freight fees.     Related products: TUV CERTIFICATE Company information:   Shenzhen ONN Semiconductor Lighting Co., Ltd, established in 2005, is a pioneer manufacturer of led industrial lighting products in China. We are now focused on led machine light, led warning light, led clean room light and led freezer light    With 10 years development, we have become the leader of producing and supplying led industrial lights in China. We have gained a 60% domestic market, and our products have also been exported widely exported to the world with fast increase year by year. We have cooperated with big customers from Germany, France, America,Japan, South Korea, Australia and so on. Our aim is to become the biggest and best supplier of led industrial lights from China to the world.    We will continue to do our best to develop and produce high quality and price competitive products to our clients. We hope very much to cooperate with more and more friends from the world to develop the brilliant led industrial lighting market.
