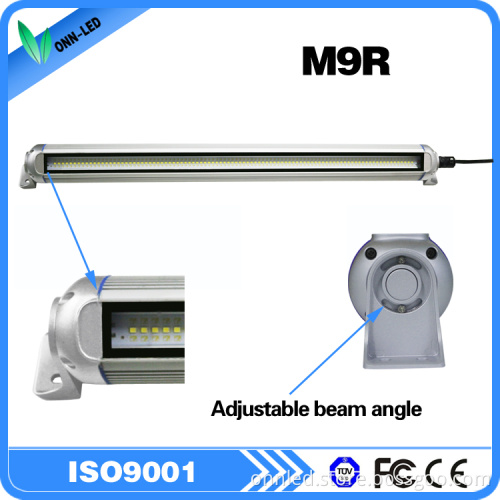

20w led machine light waterproof led works lamp
  • 20w led machine light waterproof led works lamp
20w led machine light waterproof led works lamp

20w led machine light waterproof led works lamp

Delivery Time:
7 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Guangdong, China (Mainland)
Product Description
Product Description
20w led machine light waterproof led works lamp   industrial led lamps                 Specification:   industrial led lamps

Model No.

  Voltage

Range of Voltage

CCT

ONN-M9R-B1

AC/DC 24V

AC/DC 24±2V

5500-6000K

ONN-M9R-B2

AC/DC 24V

AC/DC 24±2V

4000-4500K

ONN-M9R-C1

AC220V (50/60Hz)

AC100-240V (50/60Hz)

5500-6000K

ONN-M9R-C2

AC220V (50/60Hz)

AC100-240V (50/60Hz)

4000-4500K

Length of power line:

  about 0.55M(standards)

Installation:

   Mounting brackets(Standards)       fix clips for ceiling

Length:

   (300)

(400)

    600

800

Power:

7 W

12 W

16 W

20 W

Current:

(24V)300mA

(220V) 32mA

(24V) 470mA

(220V)55mA

(24V) 690mA

(220V) 75mA

(24V) 840mA

(220V) 90mA

Lumen:

665Lm

998Lm

1498 Lm

1997 Lm

 IP rating:

IP65

CCT:

5500-6000K

4000-4500K

Efficiency:

90-100Lm/W

CRI:

80

Temperature:

-20~60℃

PF:

0.9

Life:

50 000H

Beam angle:

90°



Material

cartons

Length of lighting(MM)

300

400

600

800

Products weight (Kg)

0.53

0.705

1.02

1.22

Total weight of a cartons(Kg)

15.5

10.5

15.5

13.5

Q-ty in a carton(PCS)

24

12

12

9

Size of carton(L*W*H)mm

780*285*233

580*285*233

780*285*233

990*210*233

Size of inner box(L*W*H)mm

770*60*70

570*60*70

770*60*70

970*65*70

                  Features:     industrial led lamps 1. Long life span of 50000 hours, free of maintanice and saving cost for long use. 2. Greatly energy-saving than troditional light source. 3. High brightness but low power cost. 4. Good heat dissipation with fine aluminum house. 5. Good shock resistent performance.       ONN LED Machine Light Series for you Choice:     industrial led lamps      led light making machine   ONN-LED company:                                                                                                                                               ONN Semiconductor (shenzhen) Co,ltd., was established in August 2005, located in Bao'an District, shenzhen LED industry gathering. The company focuses on LED lighting for "Industrial Lighting" in particular "machine work lighting," and various "warning light", From the products onto the market nearly 5 years has experienced 25 times of trade shows, create a utility model patent the invention 2, the appearance of 8 patents, and has a achieved CE certification, IP level authentication, certification and a series of energy efficiency standards relevant certificates. ISO9001, professional R&D team for technology and quality escort, was identified as Bao'an district, Shenzhen High-tech enterprises.         Lighting Fair:                                                                                                                                                                                                          Our Team:                                                                                                                                                                                                    Certificates:                                                                                                                                                                                                                                 Contact information:                                                                                                                                                                                                     SHENZHEN ONN SEMI-CONDUCTOR LIGHTING CO.,LTD Address: 3F, SECOND ZONE, HAOFENG INDUSTRIAL PARK, FUYONG XINHE, BAOAN DISTRICT, SHENZHEN, CHINA. Skype: onnled-sales2 Tel: +86-755-36631969
