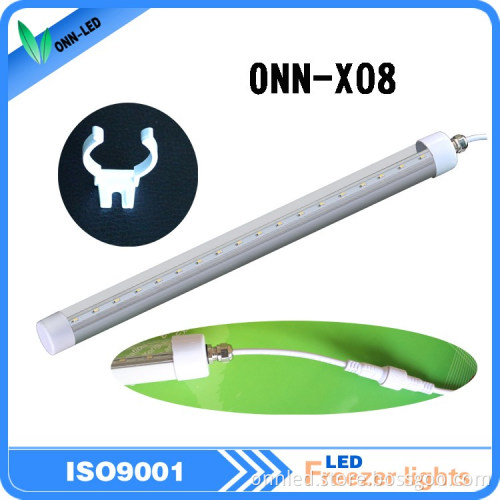

ONN-X08 ip65 commercial glass door freezer led light waterproof

ONN-X08 ip65 commercial glass door freezer led light waterproof       Products introduce    1.      Have all LED products feature: energy saving, environmental protection, long life, color temperature is adjustable, which is the inevitable trend of lighting in the future. 2.      Patent design: diameter is 25.8mm, line light shape emitting, no extra parts, simple and elegant, exquisite beauty; 3.      Two ends of ingenious design, can extend the connection and can match with ordinary products; 4.      This lamp section is a circle, can universal adjust the lamp after installing the clip, has adjusted the light direction and make installation at your will. Totally solve the problem of T5 that it can't adjust irradiation angle. 5.      This series of products used 2835 light source. It is small, competitive price, good stable, low thermal resistance, good thermal conductivity, low luminous decay, the best choice of light. 6.      More advantage: 25.8mm diameter, small volume, save room; Good cooling, longer life spans of light, easy dismantle, assembly and shipping. Application: Shelves, freezer stores, department store counter, jewelry counter.          Parameters

Model No.	Input Voltage		Range of input voltage			Range of CCT
ONN-X08-C1	AC220V (50/60Hz)		AC180-240V (50/60Hz)			5500-6000K
ONN-X08-C2	AC220V (50/60Hz)		AC180-240V (50/60Hz)			4000-4500K
ONN-X08-C3	AC220V (50/60Hz)		AC180-240V (50/60Hz)				2800-3000K
Length of power line:	0.3M(Standard)
Installation:	Install by light clips
Length:	575mm	820mm		1025mm	1300mm			1630mm
Power:	6.5W	8W		13.5W	16W			18W
Input Current:	(220V)60mA	(220V)73mA		(220V)123mA	(220V)145mA			(220V)162mA
Luminous Flux:	685 Lm	880 Lm		1382 Lm	1650 Lm			1900 Lm
IP rating: IP65 Range of CCT: 5500-6000K    4000-4500K   2800-3000 Luminous efficiency: 100-110Lm/W CRI: 80Ra Drive: Non-isolation PF: 0.5 Surface temperature: 60℃ Beam angle: 130° Life spans: 50,000H                         Environmental Requirements: Working temperature: -20~45℃ Save temperature: -40~70℃ Working humidity: 10~90% Save humidity: 10~90%     Packing: Packing material cartons Size of products(MM) Φ28*575 Φ28*820 Φ28*1025 Φ28*1300 Φ28*1630 N/W of one light (Kg) 0.15 0.19 0.24 0.31 0.40 G/W of total cartons (Kg) 7 9 11.5 15 19 Qty in carton (PCS) 42 42 42 42 42 EPE(L*W*H)mm 200*150*15 200*150*15 200*150*15 200*150*15 200*150*15 Size of outer carton (L*W*H)mm 660*210*200 960*210*200 1260*210*200 1560*210*200 1860*210*200   Installation:     1)     Install the plastic light clips in the equipment, used screw, the diameter must within Φ4MM       2)     Put light to the open of the clip, install well of light.         3)     After the light fixed, connect the female connector into male connector, then lock them.         4)     Can adjust any angle. Especially angle:360℃  Related products     Company information   Shenzhen ONN Semiconductor Lighting Co., Ltd, established in 2005, is a pioneer manufacturer of led industrial lighting products in China. We are now focused on led machine light, led warning light, led clean room light and led freezer light     With 10 years development, we have become the leader of producing and supplying led industrial lights in China. We have gained a 60% domestic market, and our products have also been exported widely exported to the world with fast increase year by year. We have cooperated with big customers from Germany, France, America,Japan, South Korea, Australia and so on. Our aim is to become the biggest and best supplier of led industrial lights from China to the world.       We will continue to do our best to develop and produce high quality and price competitive products to our clients. We hope very much to cooperate with more and more friends from the world to develop the brilliant led industrial lighting market    special recommendation   Send your message to this supplier * From: * To: Mr. Aaron Zhang * Messages: Enter between 20 to 4,000 characters. Related Products ONN X08B DC24V IP65 Freezer LED Light - Ultra Brightness Cooler Lighting CNC Wholesale LED Machine Light M9R 800mm ONN-M9T CE DC24V LED Machine Work Light Manufacturer 85lm/w Aluminum Lamp + Tempered Glass ONN M9 LED Machine Work Light - CE ROHS Certified, 20W, 6000K, DC24V, 2-Year Warranty, Aluminum Related Keywords Related Keywords waterproof led cabinet light , commercial glass door freezer led light , ip65 linear freezer light waterproof led cabinet light , commercial glass door freezer led light , ip65 linear freezer light You May Also Like You May Also Like ONN X08B DC24V IP65 Freezer LED Light - Ultra Brightness Cooler Lighting CNC Wholesale LED Machine Light M9R 800mm ONN-M9T CE DC24V LED Machine Work Light Manufacturer 85lm/w Aluminum Lamp + Tempered Glass ONN M9 LED Machine Work Light - CE ROHS Certified, 20W, 6000K, DC24V, 2-Year Warranty, Aluminum ONN-M9K Factory Supply IP67 LED Work Lights Anti-corrosion AC&DC CNC Machine Light Related Products ONN X08B DC24V IP65 Freezer LED Light - Ultra Brightness Cooler Lighting 24V LED Shelf Light IP65 Rated for Refrigerator, Freezer & Showcase ONN-X3QS Waterproof LED Cold Lamp for Refrigerator - IP65 Rated 12V/24V Freezer Lamp ONN-X5M IP65 Waterproof 24V Led Tube Light for Refrigeration Freshness Freezer ONN-X3E LED Machine Work Lamp - Cooler 45-Degree White Emitting Cabinet Light Product Categories LED Machine Light(32) LED Warning Light(32) LED Cleanroom Light(95) LED Panel Light(29) LED Tube Light(34) Other(32) LED Freezer Light(48) LED Cold Store Light(10) LED Tri-proof Light(35) Safety Light Curtains(16) LED Machine Work Light(15) Led Machine Tube Light(16) LED Signal Tower Light(16)
