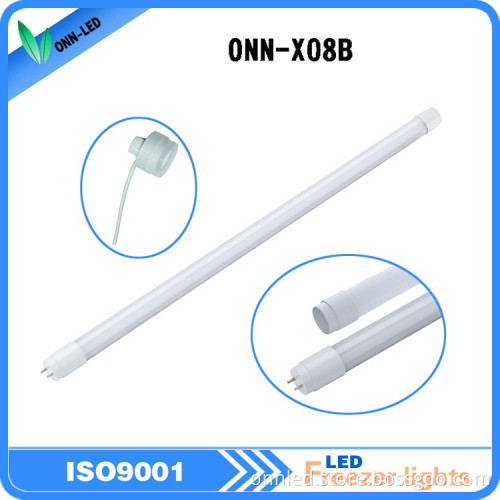

ONN-X08B T8 IP65 waterproof refrigerator inside light

ONN-X08B T8 IP65 waterproof refrigerator inside light Product introduction: 1. It had the characteristics of all LED products: energy saving and environmental protection, long life, color temperature is adjustable, is the inevitable trend of the future of lighting; 2 .utility model patent design: the diameter of 26mm, the lamp shade purchase milk white light diffusion treatment, the whole luminous even without glare, simple and generous, no extra parts, delicate and beautiful; 3 .full sealed waterproof design, no longer worried about water vapor condensation of water droplets, water mist, the safety of the problem; 4. The lamp section is eccentric, lamp holder is installed after can be universal regulation, can adjust the light direction, allow the installation of arbitrary, completely solve the traditional T5 lamp can adjust the angle. 5. The product series of products using 2835 lamp, the light source has the advantages of small volume, high price, good stability, low thermal resistance, good thermal conductivity, low depreciation is lighting the best choice. 6. The products of other advantages and has a diameter of 26mm, small volume, space saving; good radiating aluminum base PCB, a longer lamp life; easy to dismantle, transvestite, easy to transport. Scope of application: shelves, freezer stores, department store counter jewelry counter. Specication

Model No.	Input voltage	Input voltage range	CCT
ONN-X08-C1	AC220V (50/60Hz)	AC180-240V (50/60Hz)	5500-6000K
ONN-X08-C2	AC220V (50/60Hz)	AC180-240V (50/60Hz)	4000-4500K
ONN-X08-C3	AC220V (50/60Hz)	AC180-240V (50/60Hz)	2800-3000K
Power line length	0.15M(Standard)
Installation method:	Stainless steel lamp holder installation
598mm	9W	(220V)80mA	850 Lm
820mm	14W	(220V)110mA	1150Lm
1198mm	18W	(220V)165mA	1600 Lm
1498mm	21W	(220V)190mA	1950 Lm

Environmental requirements:

Ambient temperature:	-20~45℃
Storage temperature:	-40~70℃
ambient humidity:	10~90%
Storage humidity:	10~90%

   Packing

material	carton
Spec(MM)	598	820	1198	1498
N/W (Kg)	0.09	0.125	0.155	0.2
G/W(Kg)	2.9	3.9	4.8	6.2
Qty (PCS)	30	30	30	30
Inner(L*W*H)mm	200x150x35mm	200x150x35mm	200x150x35mm	200x150x35mm
outer(L*W*H)mm	660*210*200mm	960*210*200mm	1260*210*200mm	1560*210*200mm

    Installation: 1.Screw the lamp holder on the mounting plane Wire installed, the use of the screw Diameter should be withinΦ4MM 2.The lamp is aligned with the opening of the lamp holder. Press the light and the light fixture in place;   3. After the lamp is fixed, it is safe to advance. The locking plug wired up female plug. The head of the A sleeve B waterproof apron, however. Post installed on the lamp body C Head (with a needle end) and lock; 4. Connect the power to power through, the lamp is normal working. Lamp lighting angle can be arbitrary adjustment, adjustable angle is 360 Note: do not live dangerous operations, lamps fully installed before the completion of the power to work properly.   Maintenance regulations: 1, the warranty period of the product is 36 months. During the warranty period, the normal use of the fault occurs with the invoice and light body date to give free repair. 2, the following conditions do not belong to the scope of warranty, paid service charges: (1) The date of the altered body; (2) Failure or damage caused by improper use of the user; The lamp body (3) and tied with the appearance of products damaged, such as shortage of warranty processing; (4) The cause of the failure is affected by external factors such as the voltage input error, the setting and so on, which cannot work properly; (5) Without the permission to overhaul or by special maintenance station outside the repair personnel to repair, alteration caused by fault; (6) due to fires, earthquakes, floods, lightning strikes and other natural disasters, hazards or voltage anomalies caused by failure, damage; (7) Because of rodents, salt fog, corrosion and other reasons need to be repaired. 3, more than the warranty period, will be charged according to the standard, service fee = repair work fee + material cost + freight. Related Products Company information Shenzhen ONN Semiconductor Lighting Co., Ltd, established in 2005, is a pioneer manufacturer of led industrial lighting products in China. We are now focused on led machine light, led warning light, led clean room light and led freezer light   With 10 years development, we have become the leader of producing and supplying led industrial lights in China. We have gained a 60% domestic market, and our products have also been exported widely exported to the world with fast increase year by year. We have cooperated with big customers from Germany, France, America,Japan, South Korea, Australia and so on. Our aim is to become the biggest and best supplier of led industrial lights from China to the world.   We will continue to do our best to develop and produce high quality and price competitive products to our clients. We hope very much to cooperate with more and more friends from the world to develop the brilliant led industrial lighting market Special Recommendation
