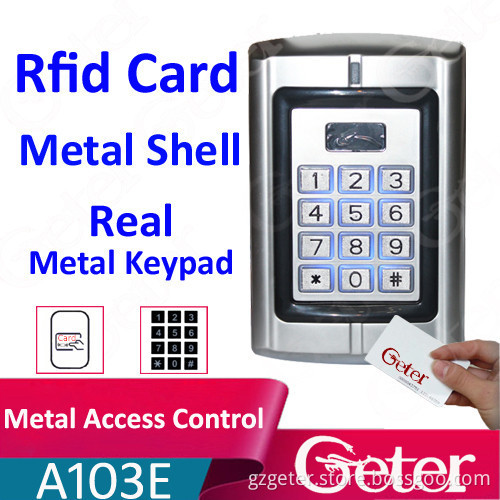

DIY RFID Card Door controller system +180 kg Magnetic Lock 12V3A Power supply

Packing: 1 Access Control Panel Machine 1 PC 180KG Magnetic Lock; 1 PC 12V3A power supply; 1 PC  Exit Button 1 PC wire Door Bell 10 PC Em cards key fob   10 PC  ID Card(Printable Card)      Features:
High quality and high security.
Sensitively and response quickly.
Support card password, card plus password & password plus card.
Can add card number and delete card number as your requirement.
Classical Appearance with useful function.
Professional design for Home and Office.
Specifications:

Operating Voltage	12VDC
Reading Range	ID 5-12CM
Frequency:	125KHz(EM or compatible)
Valid Card	1000pcs
Progmamming Mode	Keyboard
Public PIN	1
Personal PIN	1000
Output	Relay
Button Interface	1
Bell Interface	1
External Reader	1,Wiegand 26 output
Alarm Interface	1
Operating Temperature:	10~55°C

  How to used:
Be applicable to kinds of industrial & commercial environment, especially for the offices. Which has the function of Time and attendance, can choose any employee as admis person , four methods to open the door(present cards or input PIN code) .It has a built-in bell,and also you can connect a External bell with annunciator(selectable) to it. With Lock relay output,Secure/Normal Mode,NO/NC output.With the function of alarm.
Image:     Magnetic Lock:


Armature plate: 170*35*21mm

Holding Force: 180kg(350lbs)

Dual Voltage:  DC12V/DC24V

Current Draw: DC12V/480mA    DC24V/240mA

Fail Safe: Locked when energized

Time:0/3/6/9sec   GAL-602(LED)

Safety function: Built-in voltage spike suppressor

Opening Mode: 90 degree swinging door

Suitable For: Wooden Door, Glass Door,   Metal Door, Fire Proof Door.

Authority Certification: CE & MA approved

Quality Guarantee: For three years   (except that man-made and Force Majeure)

Net Weight: 1.5kg

      Features  · Optical / Infrared Technology
· IP-55 Ingress Protection / SUS 304 Stainless steel Plate
· User friendly (Healthy protection)
·· Free from contagious diseases spread
·· Detection range: 0.1 ~ 10 cm
· Application: Gate/Door/Exit/Automation control
··High capacity of relay dry contact (3A/AC120V,DC30V)
· Normally open/Normally close/Common relay output
· Twin led indicators for sensor standby or approached :
(1) Sensor Standby: BLUE LED ON
(2) Visitors whom approached to the sensor in 10 cm : RED LED ON Power Supply: This is a 110V--240V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.    Features: · No touch / Touch free Exit Sensor (Diffused Detection)
· Optical / Infrared Technology
· IP-55 Ingress Protection / SUS 304 Stainless steel Plate
· User friendly (Healthy protection)
· Free from contagious diseases spread
· Detection range: 0.1 ~ 10 cm
· Application: Gate/Door/Exit/Automation control
· High capacity of relay dry contact (3A/AC120V,DC30V)
· Normally open/Normally close/Common relay output
· Twin led indicators for sensor standby or approached :
(1) Sensor Standby: BLUE LED ON
(2) Visitors whom approached to the sensor in 10 cm : RED LED ON         Wired Door Bell
