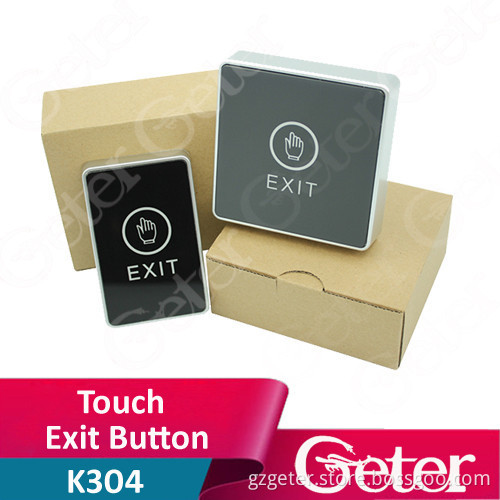

Infrared Sensor door release touch emergency exit button for access controller

Product introduce: Door release buttons are the most common and the most frequently used in the access control systems. They are often used in public authorities, banks, large,small and medium-sized enterprises, department stores and residences.   Advantage: Tested to 500000 Cycles Three Contact Outputs, Suitable for all kinds of Locks The Best Choice for Access Control   Technical Specifications:

Product Parameter	Parameter Description
Dimensions	86Lx86Wx25H(mm)—K6 86Lx50Wx25H(mm)—K6-B
Input	DC12V
Contact Rating	12-28V,3A
Output Contact	NO/NC/COM
Standard Structure	Touch to exit
Mechanical Life	500000 tested
Suitable for Door	Hollow Door
Operating temp	-20~+55 Degree (14-131F)
Suitable Humidity	0-95% (relative humidity)
Detection range	Touch
Weight	0.15Kgs
LED Indicator	White LED indicator: Power OFF Blue LED indicator: Power ON(standby) Red LED indicator: Power ON(sensation)
