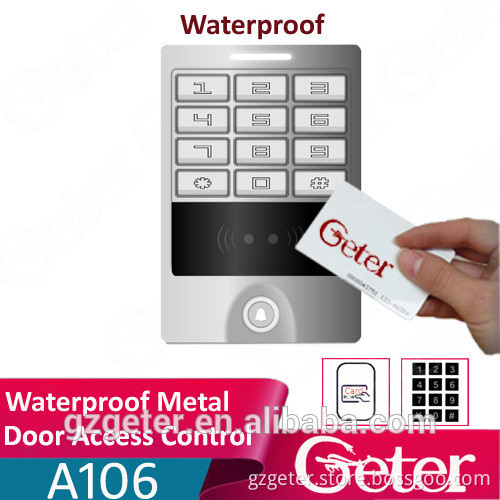

Waterproof Rfid Card Access Control with Metal Shell JTL A106

  Waterproof Rfid Card Access Control with Metal Shell JTL A106
  Product Description   Main Features: > Aluminum alloy structure, waterproof, fully potted, confirms to IP65.
> Built-in 125KHz (EM&HID card) reader: sKey W-w H&EM Or 13.56MHz
--(IC&CPU card, ISO14443A) reader: sKey W-w M
> Anti tamper, antistatic 15KV
> Digital backlit keypad. The back light can be set to Normal ON, Normal OFF
--or Automatic mode.
> Door bell function.
> Multi-function, operating as slave reader, single door, anti-pass back, etc,
--suitable for various occasions.   Specifications: > Operating voltage range: DC12-14V
> Idle input current: ≤35mA
> Max proximity card read range:EM&HID card:3-6cm
> IC or CPU( Mifare) card: 2-6cm
> Excitation frequency: 125KHz(EM,HID) or 13.56MHz(IC,CPU)
> Card transmit format: Wiegand 26-37
> Keypad output format: Input a 4-6 digits PIN, sends card number, each key press
--sends a 4 bits data, or each press sends an 8 bits data.
> Dimension (Height×Width×Depth): s sKey W-w:125×83×21.7mm;
> Operating temperature range: -40~60° C (EM&HID card) : s sKey W-w H&EM
----------------------------------------------20~60° C (IC or CPU card) : sKey W-w M
> Operating humidity: 0-95%(non-condensing)
    Product Overviews     Communication     Packaging & Shipping

Qty/Box	Size/ Box	Weigth/Box
1 PC	28*20*10CM	0.80KG
Qty/Carton	Size/Carton	Weight/Carton
10PCS	52*41*30CM	8.5KG
